214323 410 Revision A
Installing CA25 Feed Draper Drive Roller Bearing

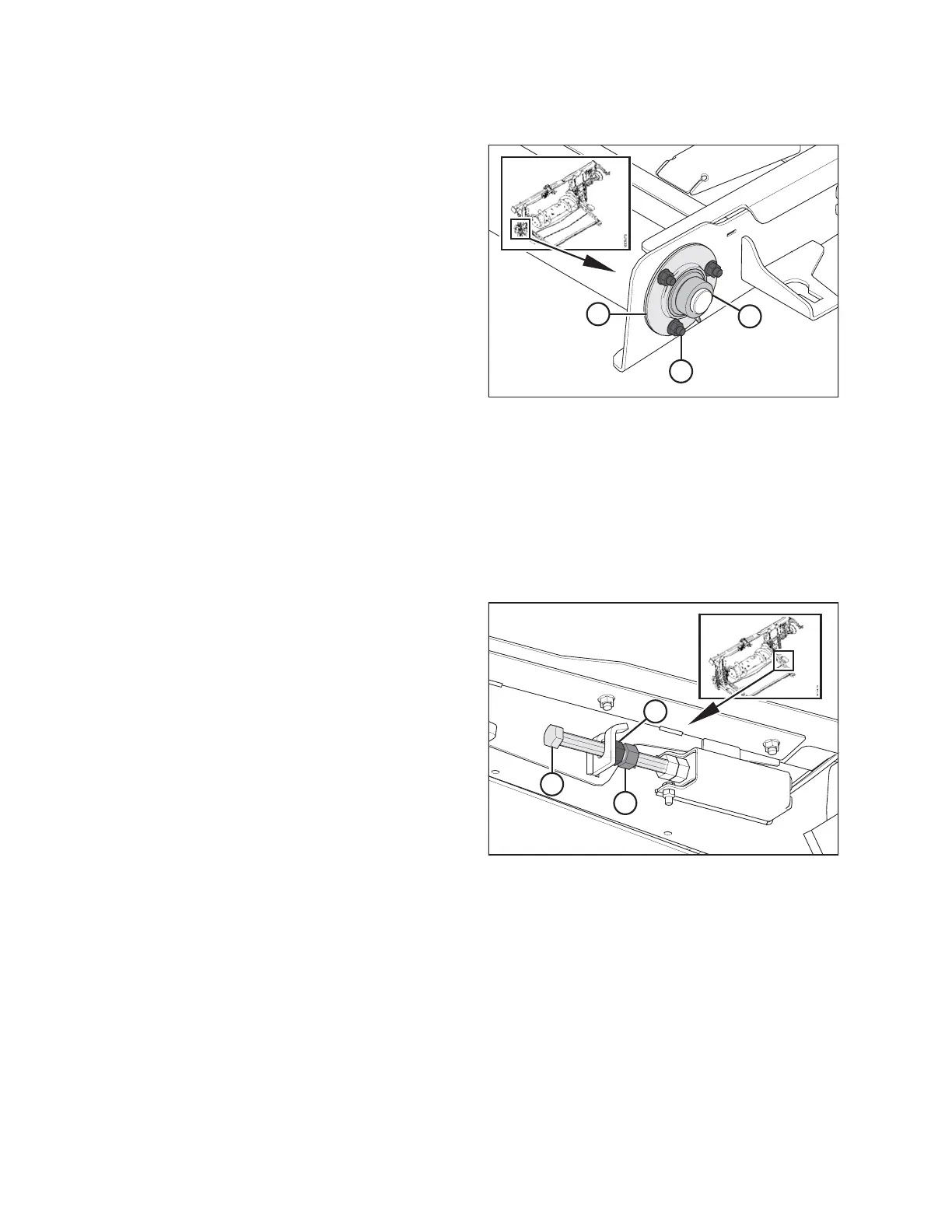

Figure 5.167: Bearing
1. Install bearing flanges (C) and the bearing.
2. Install three bolts (B) to secure the bearing and
flanges (C) to the feed deck.
3. Lock bearing collar (A) and tighten the setscrew.
4. Tension the feed draper. Refer to 5.10.2 Adjusting
CA25 Feed Draper Tension, page 405.
5. Attach the header to the adapter. Refer to 4.7.2
Attaching Header to Adapter and Combine, page 315.
5.10.4 Adapter Idler Roller
Removing CA25 Feed Draper Idler Roller
1. Remove the header from the CA25, but leave the CA25 attached to the combine. Refer to 4.7.1 Detaching
Header from Adapter and Combine, page 310.
2. Engage the feeder house safety props.
Figure 5.168: Tensioner
3. Loosen jam nut (A) and hold nut (B) with a wrench while
turning bolt (C) counterclockwise to release the draper
tension. Repeat at the opposite side.
MAINTENANCE AND SERVICING
