4.7 Attaching and Detaching Header from CA25 and Combine
Attaching/detaching procedures are the same for all makes and models of combines. Headers can be attached to
the CA25 from either field or transport configurations.
The procedures in this manual require that the CA25 remains attached to the combine. Attach/detach the CA25
only if performing the following tasks:
• Changing headers
• Performing certain maintenance tasks
4.7.1 Detaching Header from Adapter and Combine

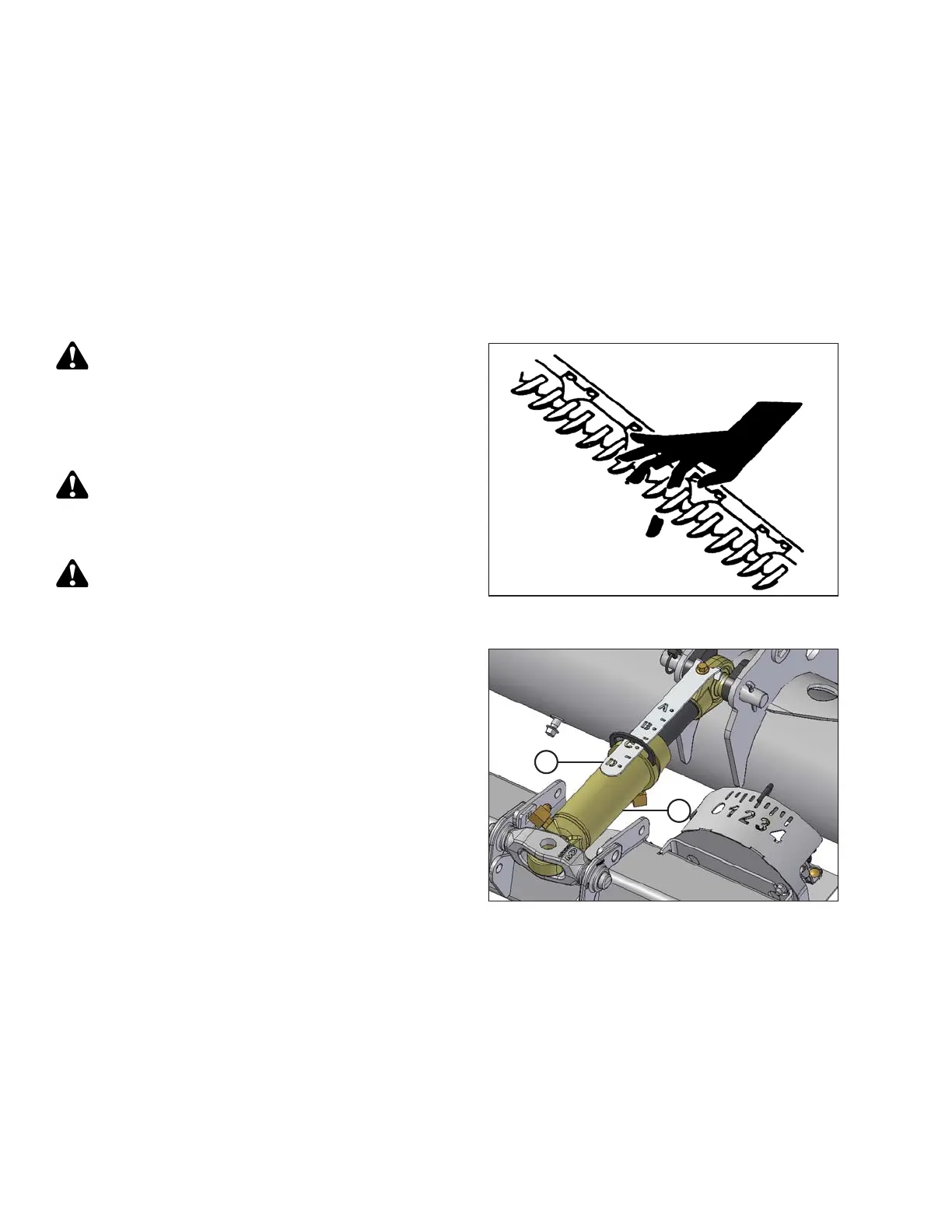

Figure 4.94: Cutterbar Hazard
DANGER
To avoid bodily injury or death from unexpected start-up
or fall of raised machine, always stop engine, remove
key, and engage safety props before going under header
for any reason.
WARNING
Keep hands clear of the area between guards and knife
at all times.
CAUTION
Wear heavy gloves when working around or handling
knives.
Figure 4.95: Center-Link
1. Start the engine and the lower header.
2. Increase clearance under the CA25 feed draper by
tilting the header until the cylinder (B) is fully extended
and the indicator (A) is at D.
3. Raise the reel to its full height.
4. Stop the engine and the remove key from the ignition.
5. Engage the reel safety props.
