4.6.2 Detaching Header from New Holland CR/CX Combine
DANGER
To avoid bodily injury or death from unexpected start-up or fall of raised machine, always stop engine,
remove key, and engage safety props before going under header for any reason.

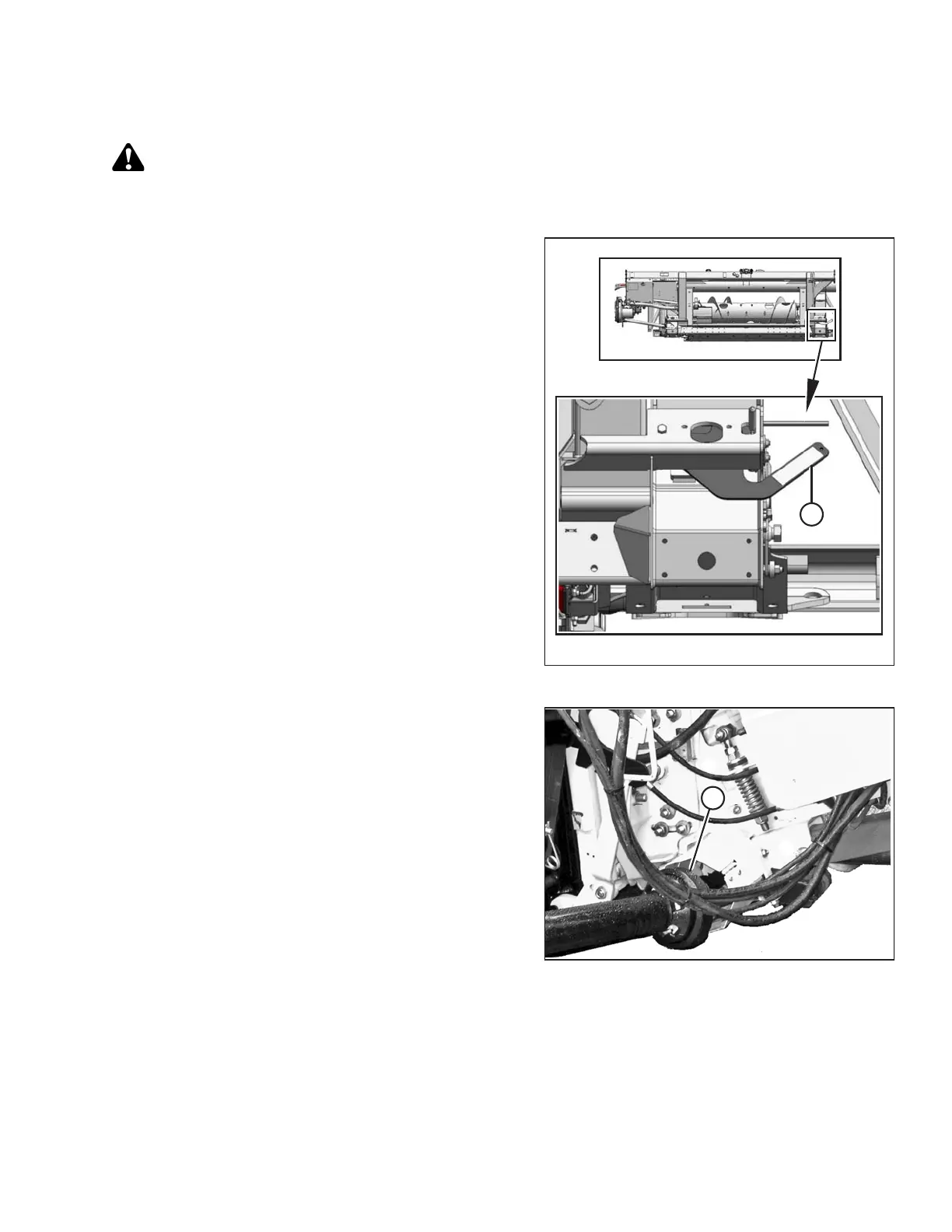

Figure 4.83: Float Locked
1. Choose a level area and position the header slightly
above the ground.
2. Stop the engine and remove the key from the ignition.
IMPORTANT:
If slow speed transport wheels are installed, the header
may be detached in either transport or field mode. If
detaching with the wheels in field mode, set the wheels
to the storage or uppermost working position,
otherwise, the header may tilt forward making
reattachment difficult. Refer to 3.7.1 Cutting Height,
page 53.
IMPORTANT:
If stabilizer wheels are installed, set the wheels to the
storage or uppermost working position, otherwise, the
header may tilt forward making reattachment difficult.
Refer to 3.7.1 Cutting Height, page 53.
3. Engage both float locks by lifting each lock lever (A)
upwards until it latches into the lock position.
Figure 4.84: Driveline
4. Disconnect driveline (A) from the combine.
