214323 405 Revision A

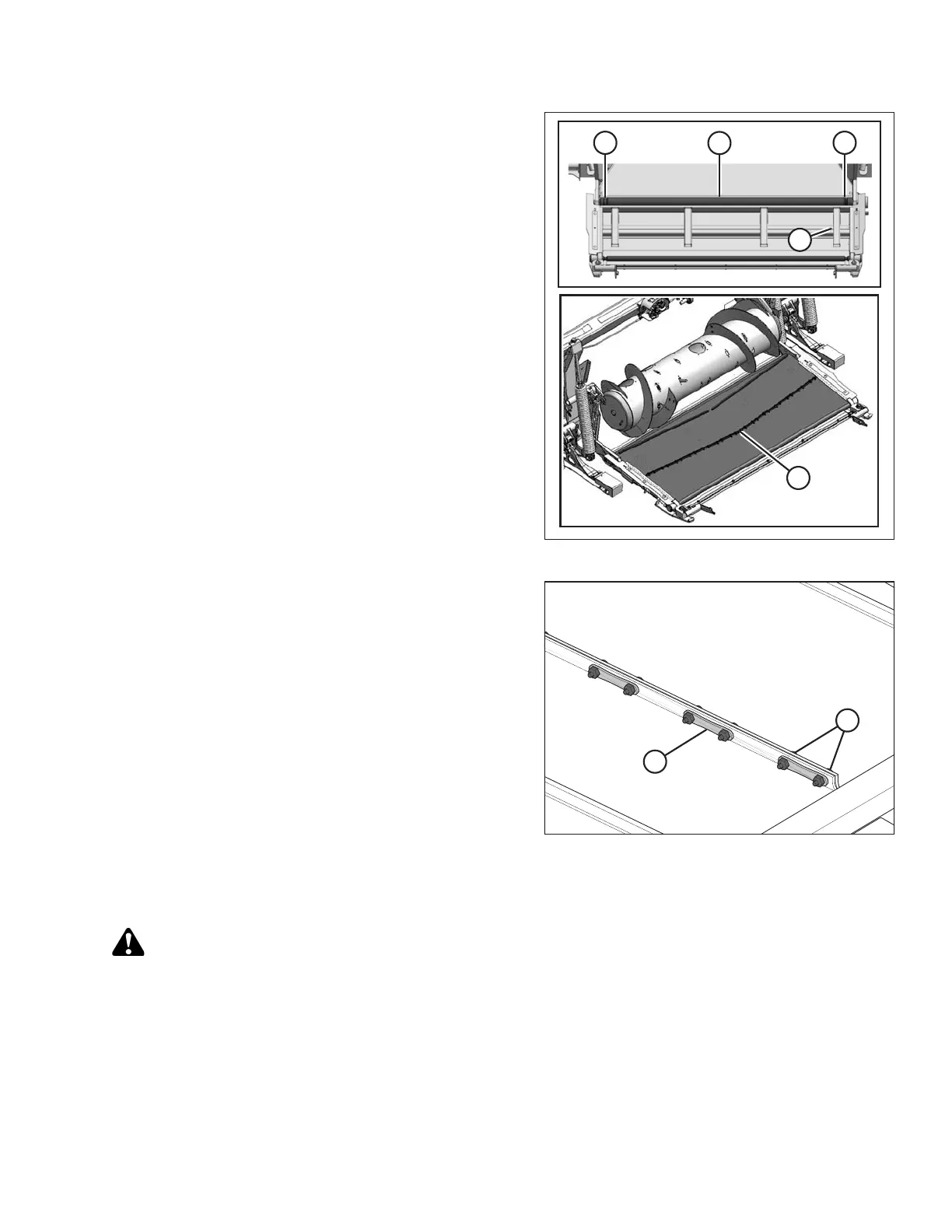

Figure 5.155: Adapter Feed Draper
8. Install the new draper over drive roller (A) with the
chevron cleat (B) pointing towards the front of the
adapter. Make sure the draper guides fit in drive roller
grooves (C).
9. Pull the draper along the bottom of the adapter deck
and over draper supports (D).
Figure 5.156: Draper Connector Straps
10. Connect the draper joint with connector straps (B) and
secure with screws (A) and nuts. Ensure the screw
heads face towards the rear of the deck, and tighten
only until the end of the screws are flush with the nuts.
11. Adjust the draper tension. Refer to 5.10.2 Adjusting
CA25 Feed Draper Tension, page 405.
5.10.2 Adjusting CA25 Feed Draper Tension
DANGER
To avoid bodily injury or death from unexpected start-up or fall of a raised machine, always stop engine
and remove key before leaving the operator’s seat, and always engage safety props before going under
the machine for any reason.
1. Raise the header to its full height, stop the engine, and the remove key from the ignition.
2. Engage the header safety props.
MAINTENANCE AND SERVICING
