MacDon FD75 - Replacing Adapter Feed Draper Drive Roller Bearing

214323 409 Revision A
Replacing Adapter Feed Draper Drive Roller Bearing
Removing CA25 Feed Draper Drive Roller Bearing
DANGER
To avoid bodily injury or death from unexpected start-up or fall of a raised machine, always stop engine
and remove key before leaving the operator’s seat, and always engage safety props before going under
the machine for any reason.
1. If attached to the combine, detach the header from the adapter. Refer to 4.7.1 Detaching Header from Adapter
and Combine, page 310.
2. Raise the feeder house to its full height, stop the engine, and the remove key from the ignition.
3. Engage the combine safety props.
1005638
A
B
C

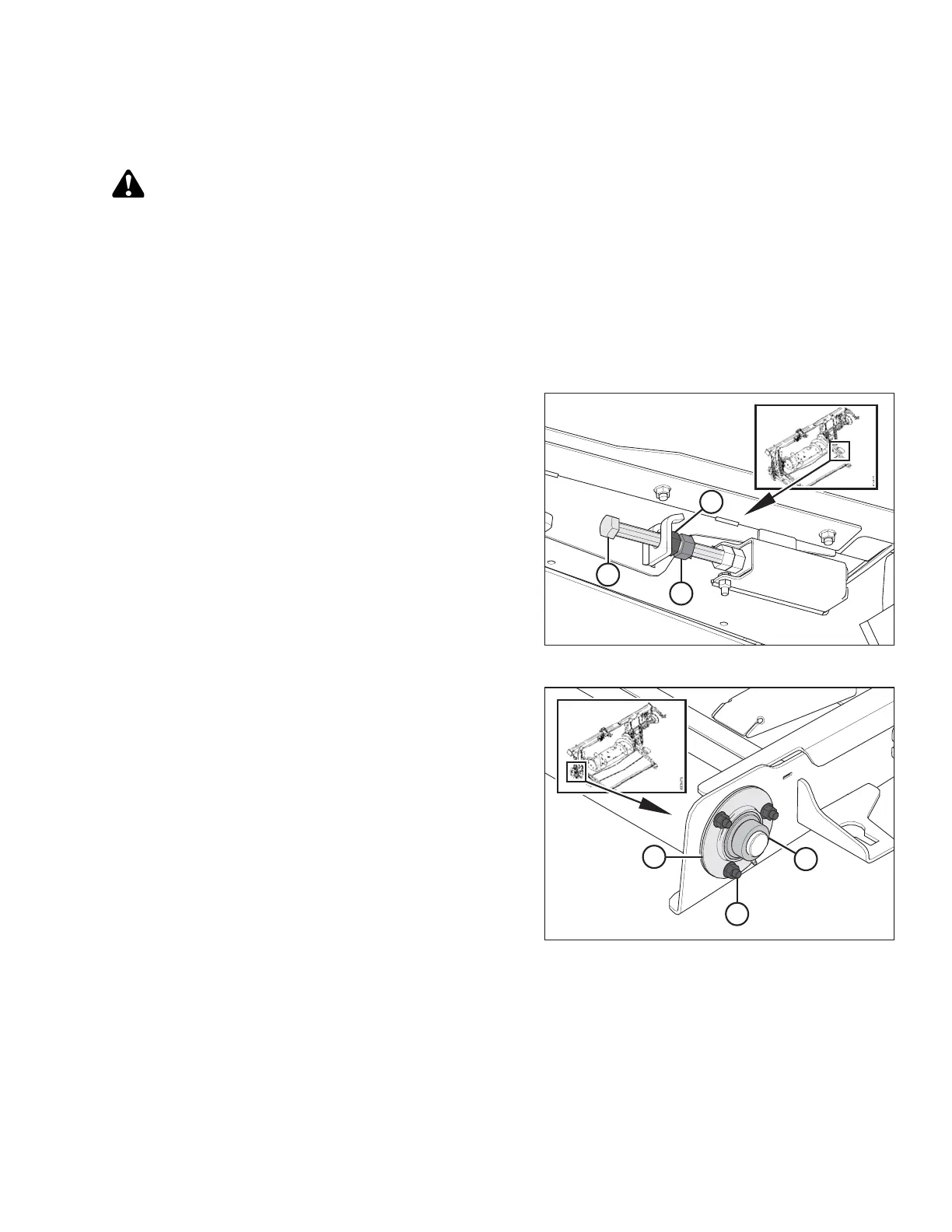

Figure 5.165: Tensioner
4. Loosen jam nut (A) and hold nut (B) with a wrench while
turning bolt (C) counterclockwise to release the draper
tension. Repeat at the opposite side.
1002992
A
B
C
Figure 5.166: Bearing
5. Loosen the setscrew and unlock bearing lock collar (A).
6. Remove three bolts (B).
7. Remove bearing flanges (C) and the bearing.
