6.3.4 Vertical Knife Mounts

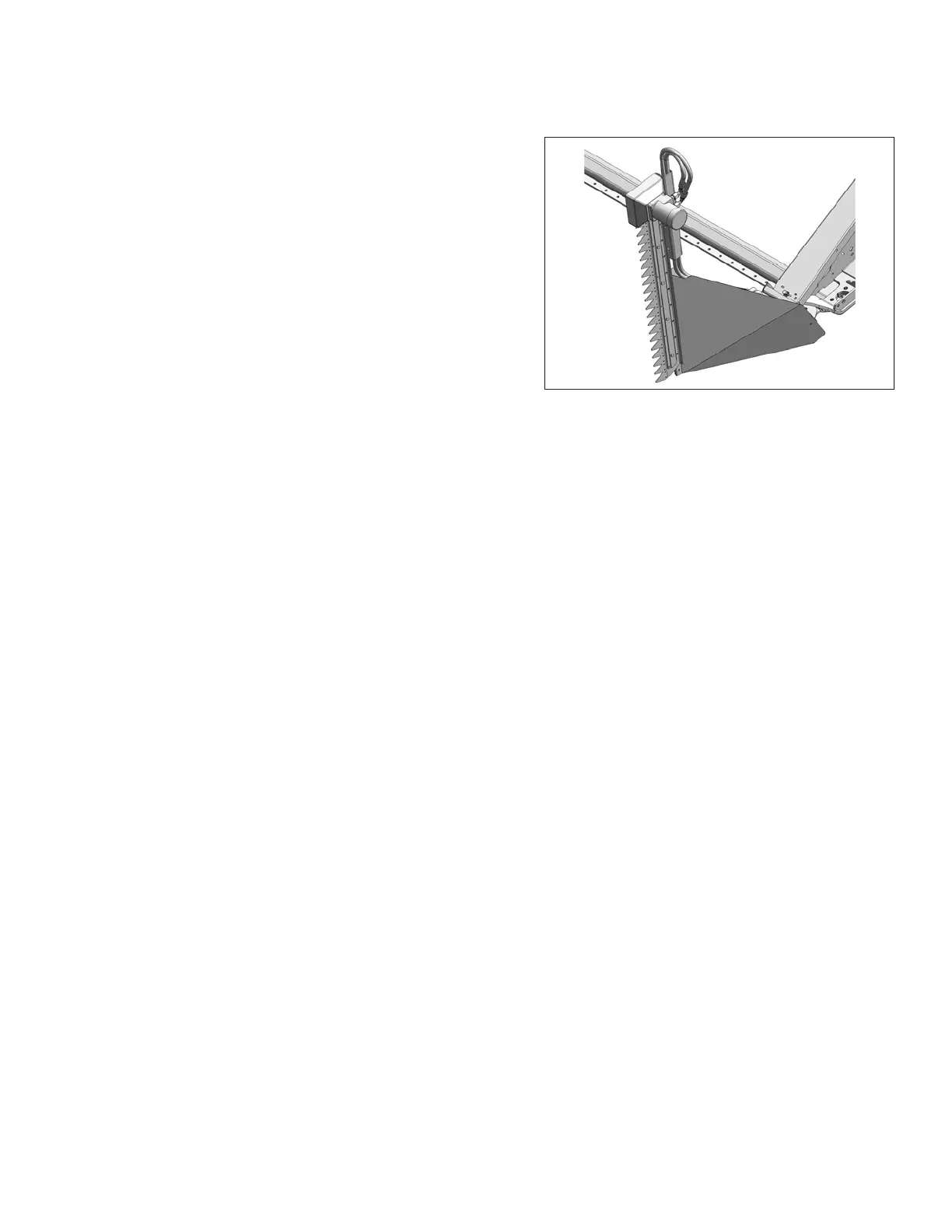

Figure 6.9: Vertical Knife Mount
The vertical knife mounts allow the installation of vertically
oriented knives onto both ends of the header.
The vertical knives themselves are not sold by MacDon and
must be purchased from a separate supplier
Installation and adjustment instructions are included in the
bundle.
Order the following bundles according to left or right side:
• Left Side – MD #B5757
• Right Side – MD #B5758
NOTE:
The Left Vertical Knife Mount kit can only be installed if
installing both sides.
NOTE:
If mounting onto multiple headers, you will also require the auxiliary vertical knife plumbing kit MD #B5406.
