214323 458 Revision A
5.13.6 Reel Endshields
Reel endshields and supports do not require regular maintenance, but they should be checked periodically for
damage and loose or missing fasteners. Slightly dented or deformed endshields and supports are repairable, but
it’s necessary to replace severely damaged components.
You can attach reel endshields to either end of the reel.
Replacing Reel Endshields
DANGER
To avoid bodily injury or death from unexpected start-up of machine, always stop engine and remove key
from ignition before leaving operator’s seat for any reason.

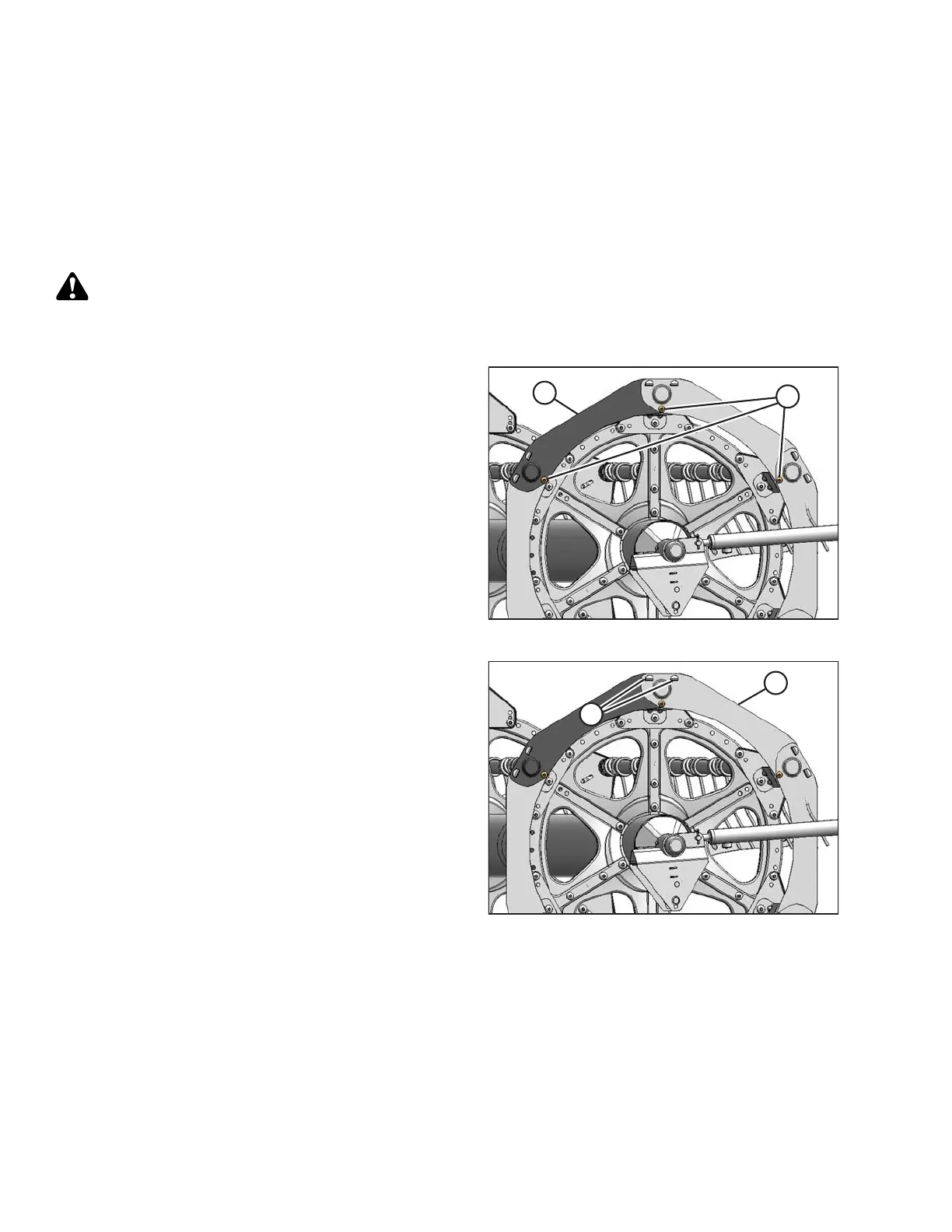

Figure 5.274: Reel Endshields
1. Lower the header and reel, shut down the engine, and
remove the key from the ignition.
2. Rotate the reel manually until reel endshield (A)
requiring replacement is accessible.
3. Remove three bolts (B).
Figure 5.275: Reel Endshields
4. Lift end of reel endshield (A) off support (B).
MAINTENANCE AND SERVICING
