MacDon FD75 - Installing Reel Drive Cover

214323 462 Revision A
Installing Reel Drive Cover
1012796
A
B

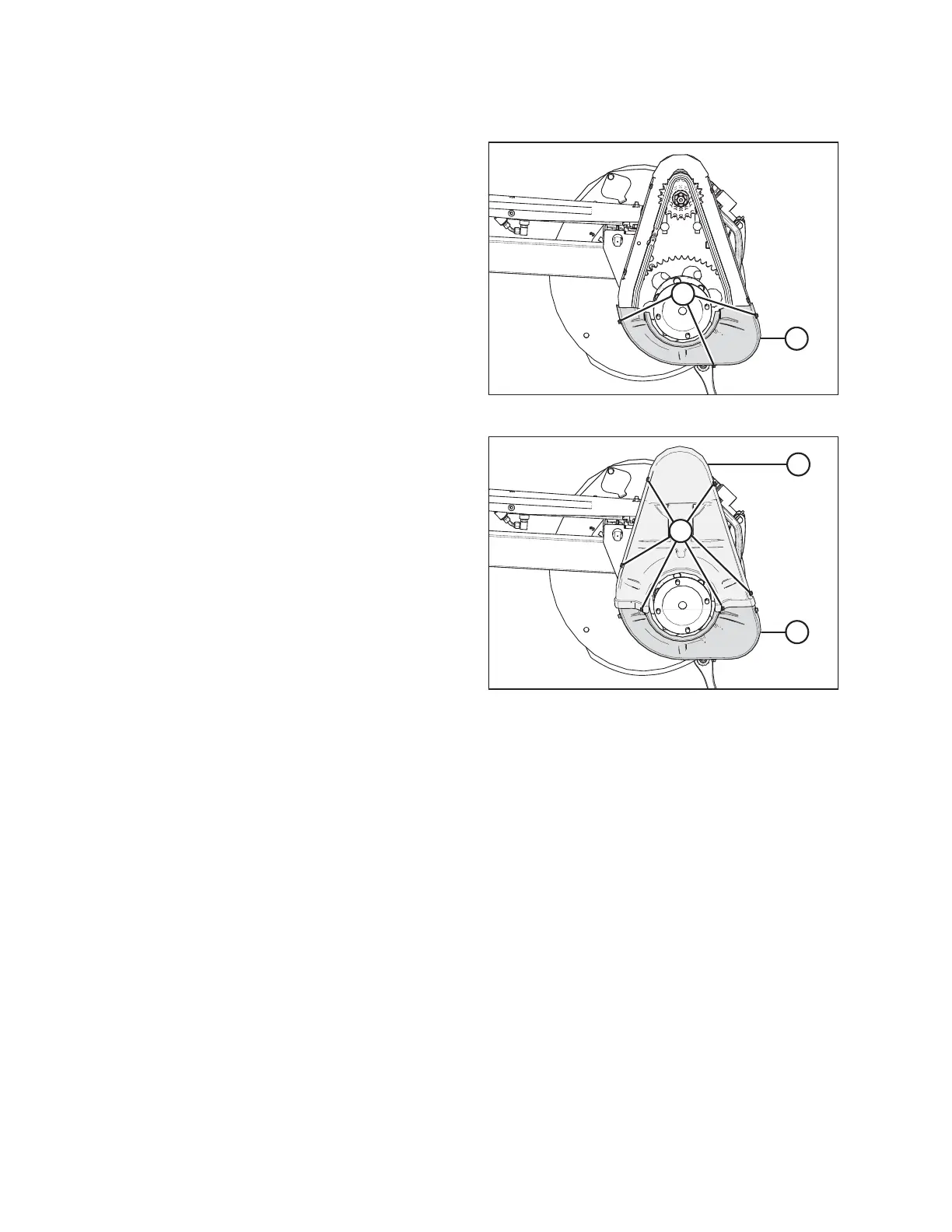

Figure 5.282: Drive Cover – Double Reel
1. Position lower drive cover (B) onto the reel drive (if
previously removed) and secure with three bolts (A).
1012795
A
B
C
Figure 5.283: Drive Cover – Double Reel
2. Position upper drive cover (B) onto the reel drive and
lower cover (C), and secure with six bolts (A).
