Tightening Reel Drive Chain
DANGER
To avoid bodily injury or death from unexpected start-up or fall of raised machine, always stop engine,
remove key, and engage safety props before going under header for any reason.

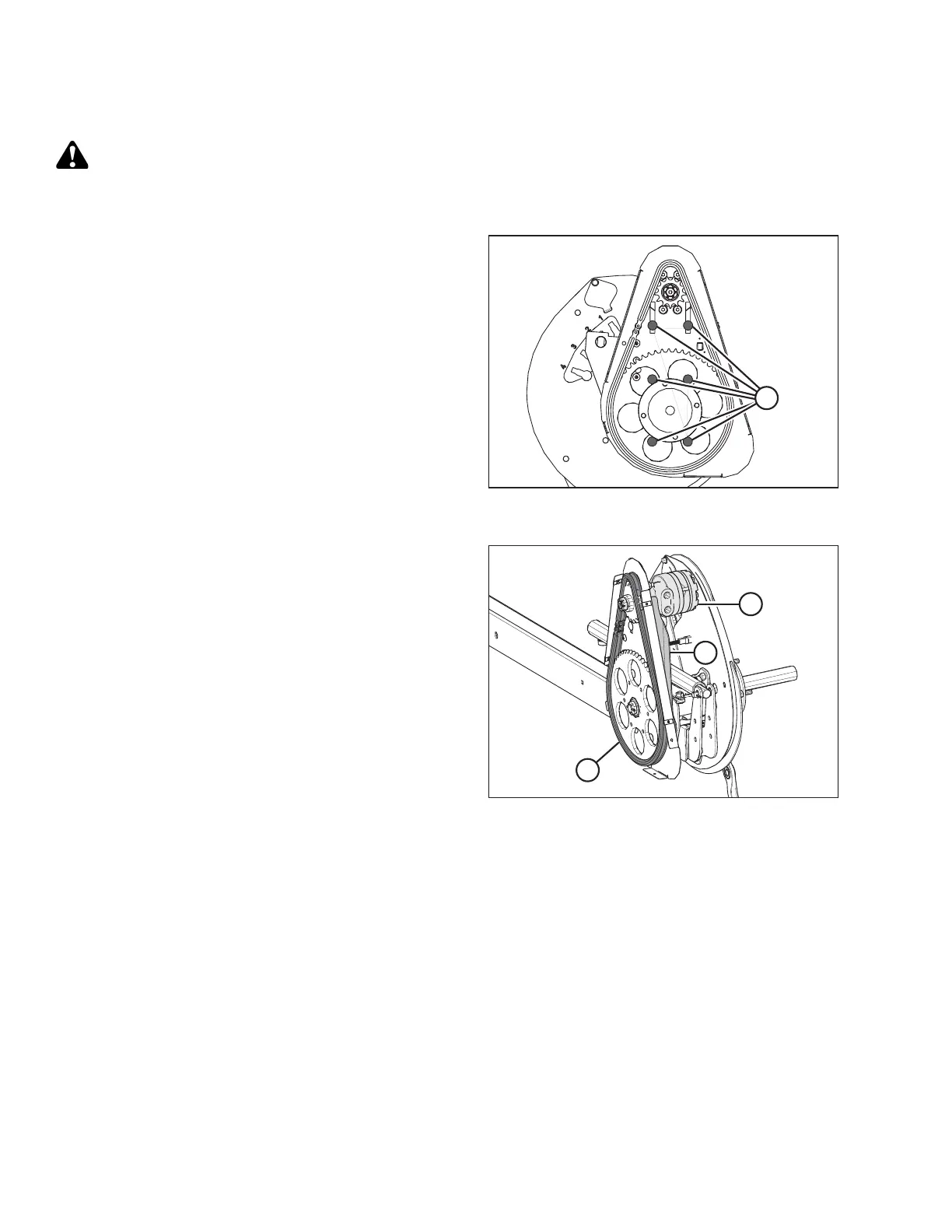

Figure 5.286: Single-Reel Drive Shown – Double
Reel Similar
1. Shut down the combine, and remove the key from
the ignition.
2. Ensure the six bolts (A) securing the motor mount to the
chain case are loose.
Figure 5.287: Single-Reel Drive Shown – Double
Reel Similar
3. Slide motor (A) and motor mount (B) upwards until
chain (C) is tight.
