214323 34 Revision A
Installing Endshield

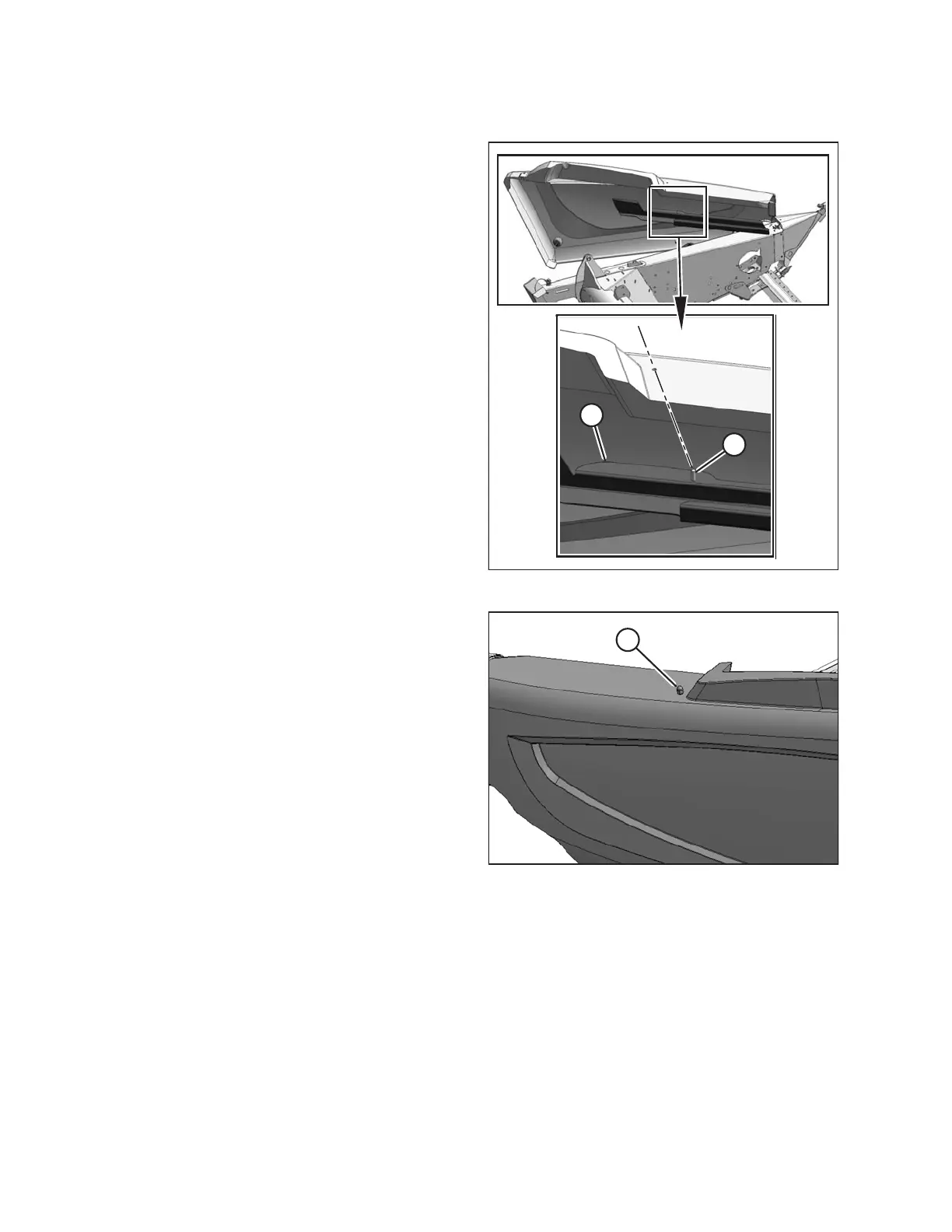

Figure 3.14: Left Endshield
1. Position the endshield onto support (A), and align the
hole in the endshield with stud (B) on the support.
Figure 3.15: Left Endshield
2. Secure the endshield to the support with acorn nut (A).
3. Close the endshield. Refer to Closing Endshield, page
32.
NOTE:
Plastic endshields may expand or contract when
subjected to large temperature changes. Top pin and
lower catch bracket positions can be adjusted to
compensate for dimensional changes. Refer to
Adjusting Endshield, page 35.
OPERATION
