MacDon FD75 - Installing CA25 Feed Draper Idler Roller; Lowering Polyethylene Door - Adapter Feed Deck

214323 413 Revision A
Installing CA25 Feed Draper Idler Roller
1003003
A
B
C

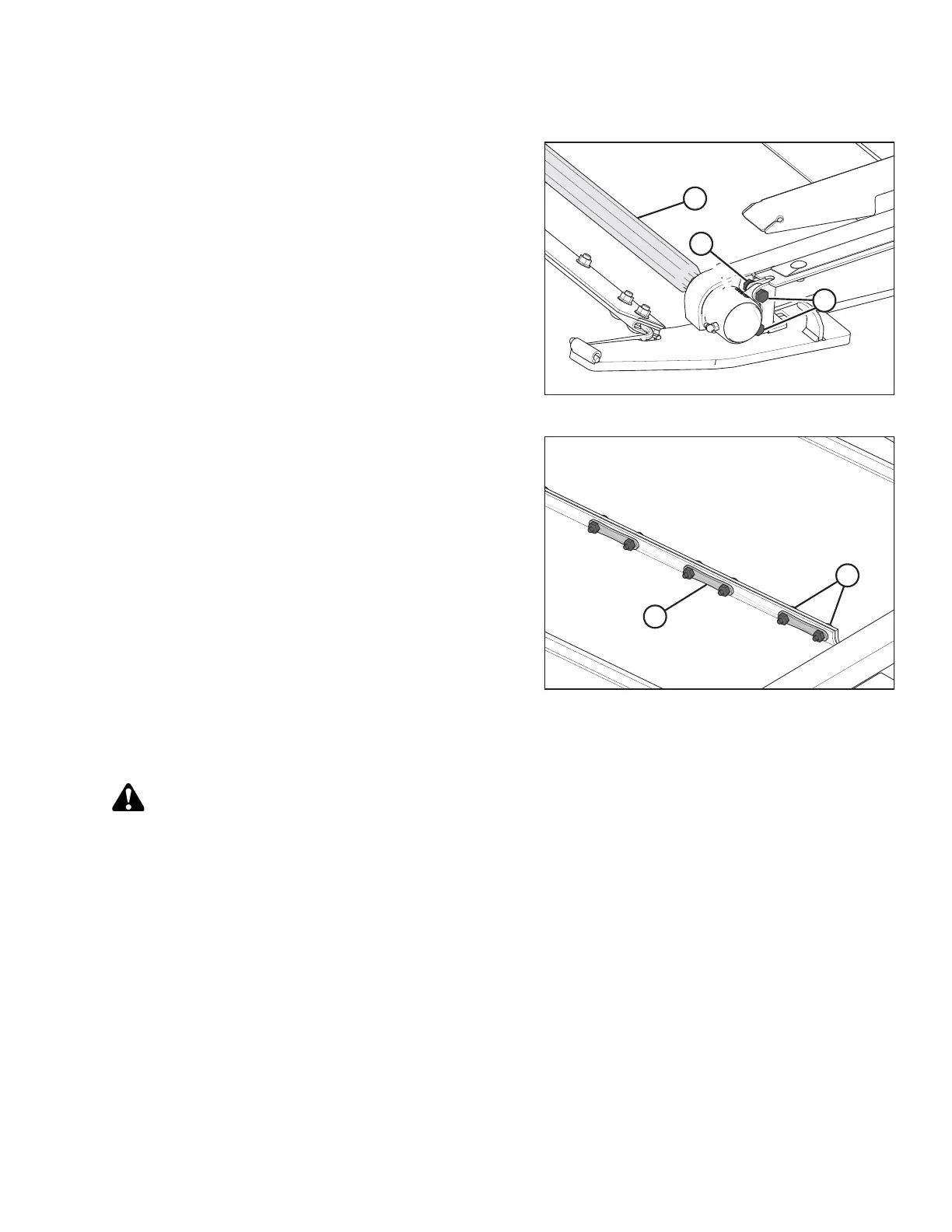

Figure 5.175: Idler Roller
1. Position idler roller assembly (B) in the feed deck.
2. Install two bolts (A) and nuts (C) at both ends of the
idler roller.
1014024
A
B
Figure 5.176: Draper Connector
3. Close the feed draper and secure with connector
straps (B), screws (A), and nuts.
4. Tension the feed draper. Refer to 5.10.2 Adjusting
CA25 Feed Draper Tension, page 405.
5. Attach the header to the adapter. Refer to 4.7.2
Attaching Header to Adapter and Combine, page 315.
5.10.5 Lowering Polyethylene Door – Adapter Feed Deck
DANGER
To avoid bodily injury or death from unexpected start-up or fall of a raised machine, always stop engine
and remove key before leaving the operator’s seat, and always engage safety props before going under
the machine for any reason.
1. Start combine, raise header fully, and engage header lift cylinder locks.
2. Stop engine and remove key.
MAINTENANCE AND SERVICING
