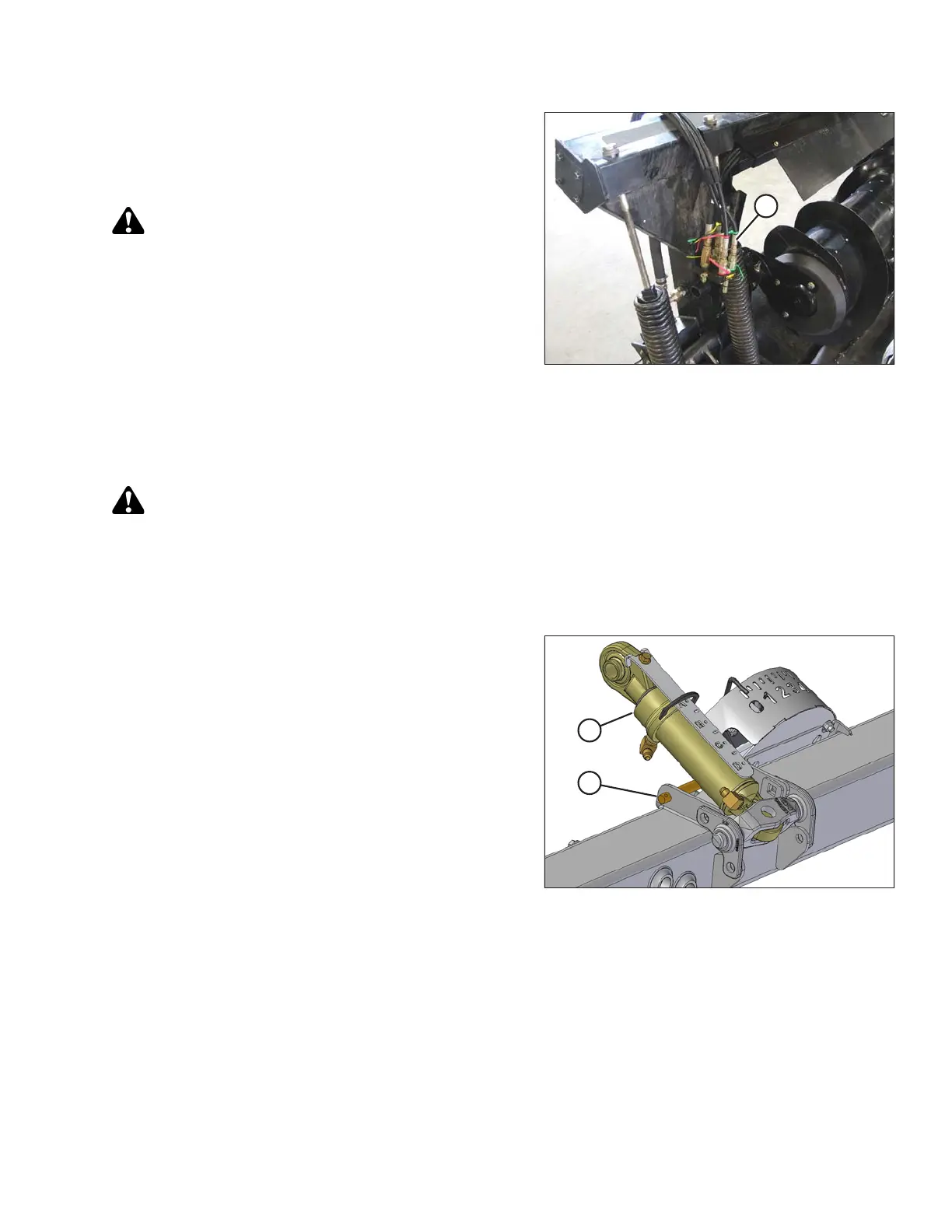

Figure 4.107: Hose Storage
30. Store and secure the hoses and electrical connector on
the adapter at position (A) as shown.
31. Ensure the header is on the ground or is supported by
the wheels in transport mode.
CAUTION
Never start or move the machine until you are sure all
bystanders have cleared the area.
32. Start the engine and slowly back the combine away
from header.
33. Stop the engine and remove the key from the ignition.
4.7.2 Attaching Header to Adapter and Combine
The can be attached to the CA25 from either field or transport configuration.
DANGER
To avoid bodily injury or death from unexpected start-up of machine, always stop engine and remove key
from ignition before leaving operator’s seat for any reason.
NOTE:
Stabilizer/Slow Speed Transport wheels can be used to support the header. Refer to 3.7.1 Cutting Height, page 53.
Figure 4.108: Center-Link
1. Prop up the hydraulic center-link (A) with a pin (or
equivalent tool) at location (B) as shown.
HEADER ATTACHMENT/DETACHMENT
