214323 286 Revision A
4.4 John Deere Combines
4.4.1 Attaching Header to John Deere Combine
DANGER
To avoid bodily injury or death from unexpected start-up of machine, always stop engine and remove key
from ignition before leaving operator’s seat for any reason.

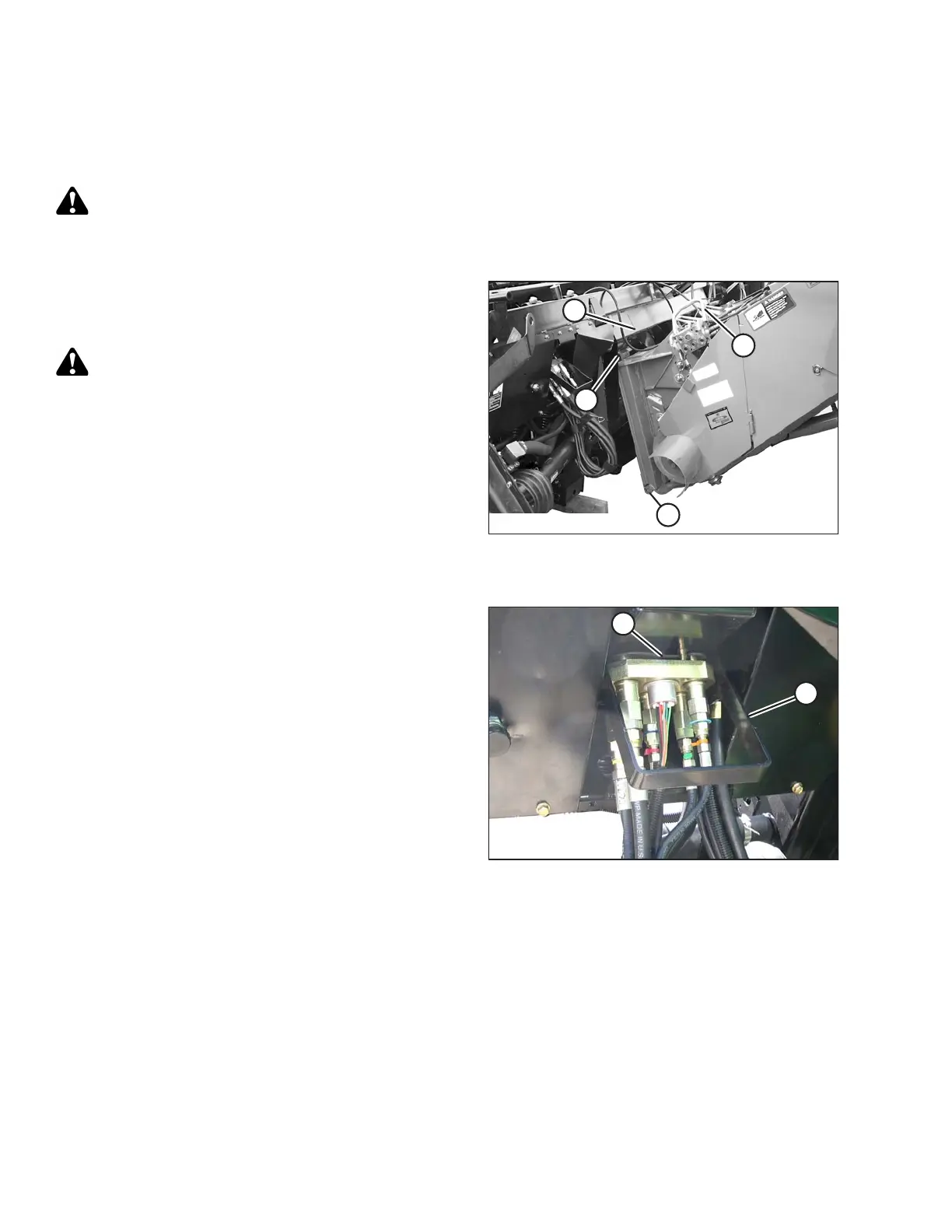

Figure 4.39: Combine and Adapter
1. Push handle (A) on combine multicoupler receptacle
towards feeder house to retract pins (B) at bottom
corners of feeder house. Clean the receptacle.
CAUTION
Never start or move the machine until you are sure all
bystanders have cleared the area.
2. Start engine and slowly drive combine up to header
until feeder house saddle (C) is directly under adapter
top cross member (D).
3. Raise feeder house slightly to lift header, ensuring
feeder house saddle is properly engaged in
adapter frame.
4. Stop engine and remove key from ignition.
Figure 4.40: Multicoupler Storage
5. Pull handle (A) on adapter to release multicoupler (B)
from storage position. Remove multicoupler, and push
handle back into adapter to store.
HEADER ATTACHMENT/DETACHMENT
