MacDon FD75 - PR15 Pick-Up Reel; Replacing Reel Drive Cover; Removing Reel Drive Cover

214323 461 Revision A
5.14 PR15 Pick-up Reel
5.14.1 Replacing Reel Drive Cover
Removing Reel Drive Cover
DANGER
To avoid bodily injury or death from unexpected start-up of machine, always stop engine and remove key
from ignition before leaving operator’s seat for any reason.
1012795
A
B
C

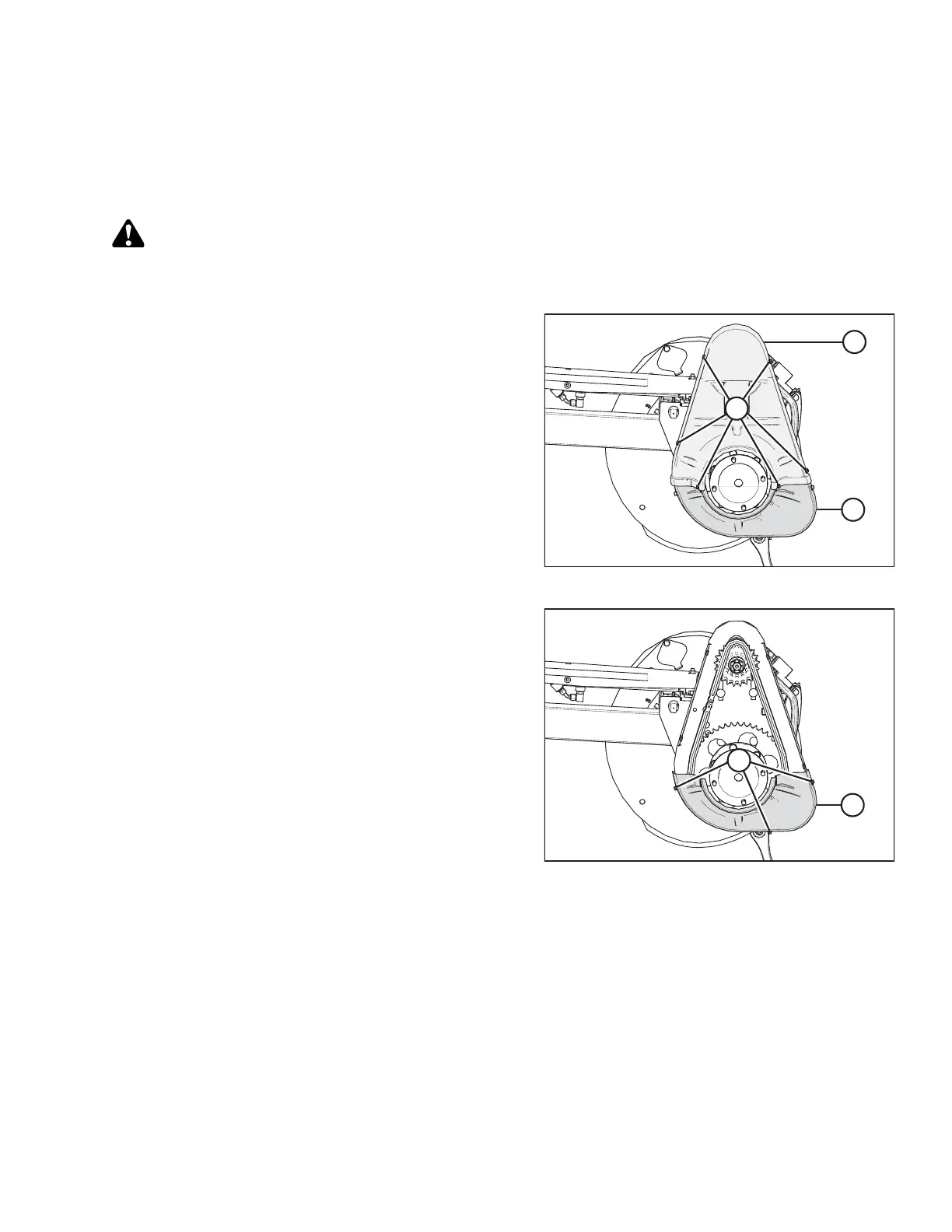

Figure 5.280: Drive Cover – Double Reel
1. Stop the engine and remove the key from the ignition.
2. Remove six bolts (A) securing upper cover (B) to the
reel drive and lower cover (C).
1012796
A
B
Figure 5.281: Drive Cover – Double Reel
3. Remove three bolts (A) and remove lower cover (B) if
necessary.
MAINTENANCE AND SERVICING
