5.2 Maintenance Specifications
5.2.1 Installing a Sealed Bearing
1001380
A
B
C
D
E

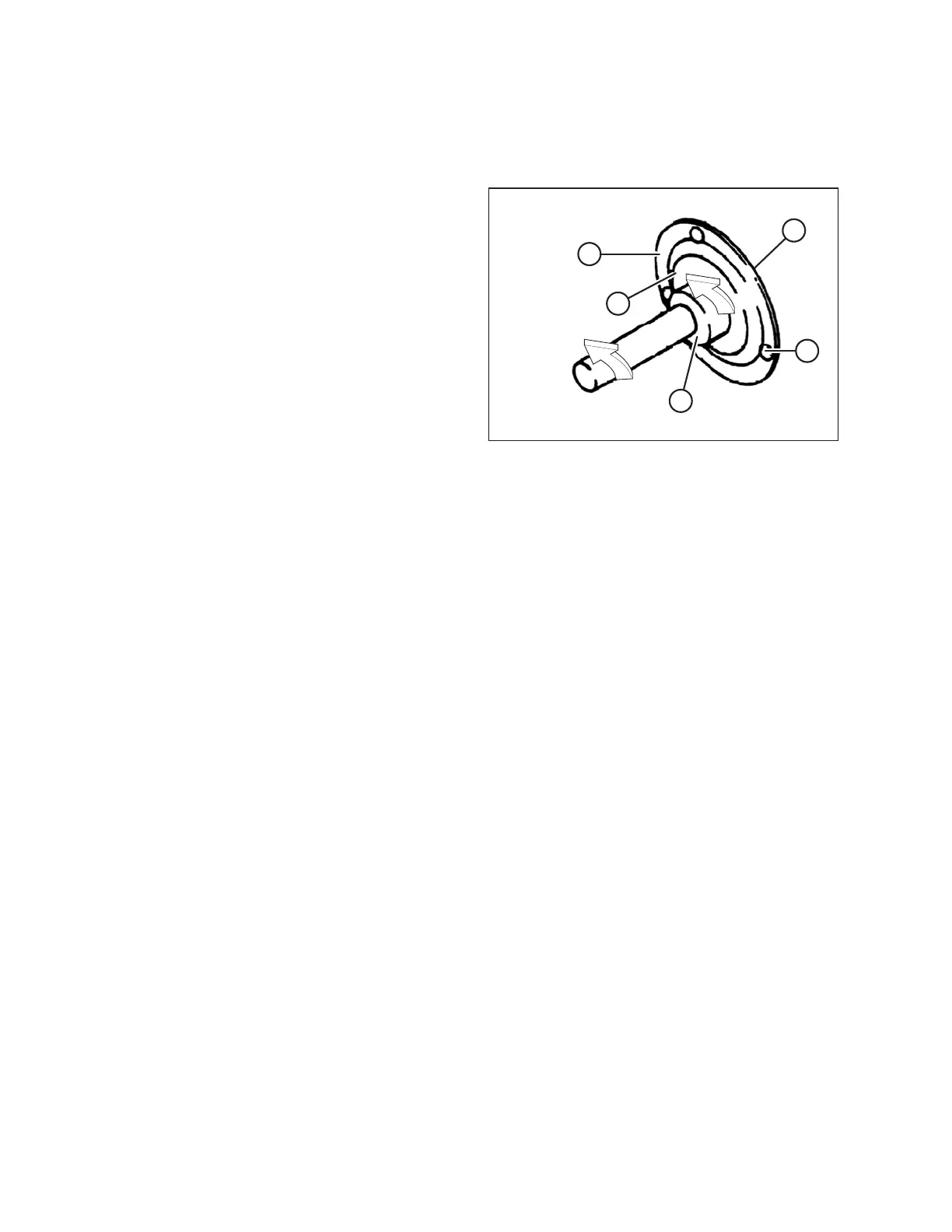

Figure 5.1: Sealed Bearing
1. Clean the shaft and apply a rust preventive coating.
2. Install the flangette (A), bearing (B), second
flangette (C), and lock the collar (D).
NOTE:
The locking cam is on only one side of the bearing.
3. Install and tighten the flangette bolts (E).
4. Position the shaft correctly, and lock the lock collar with
a punch. Lock the collar in the same direction the shaft
rotates, and tighten the setscrew in the collar.
5. Loosen the flangette bolts on the mating bearing one
turn and then retighten. This will enable the bearing to
properly line up.
