214323 443 Revision A

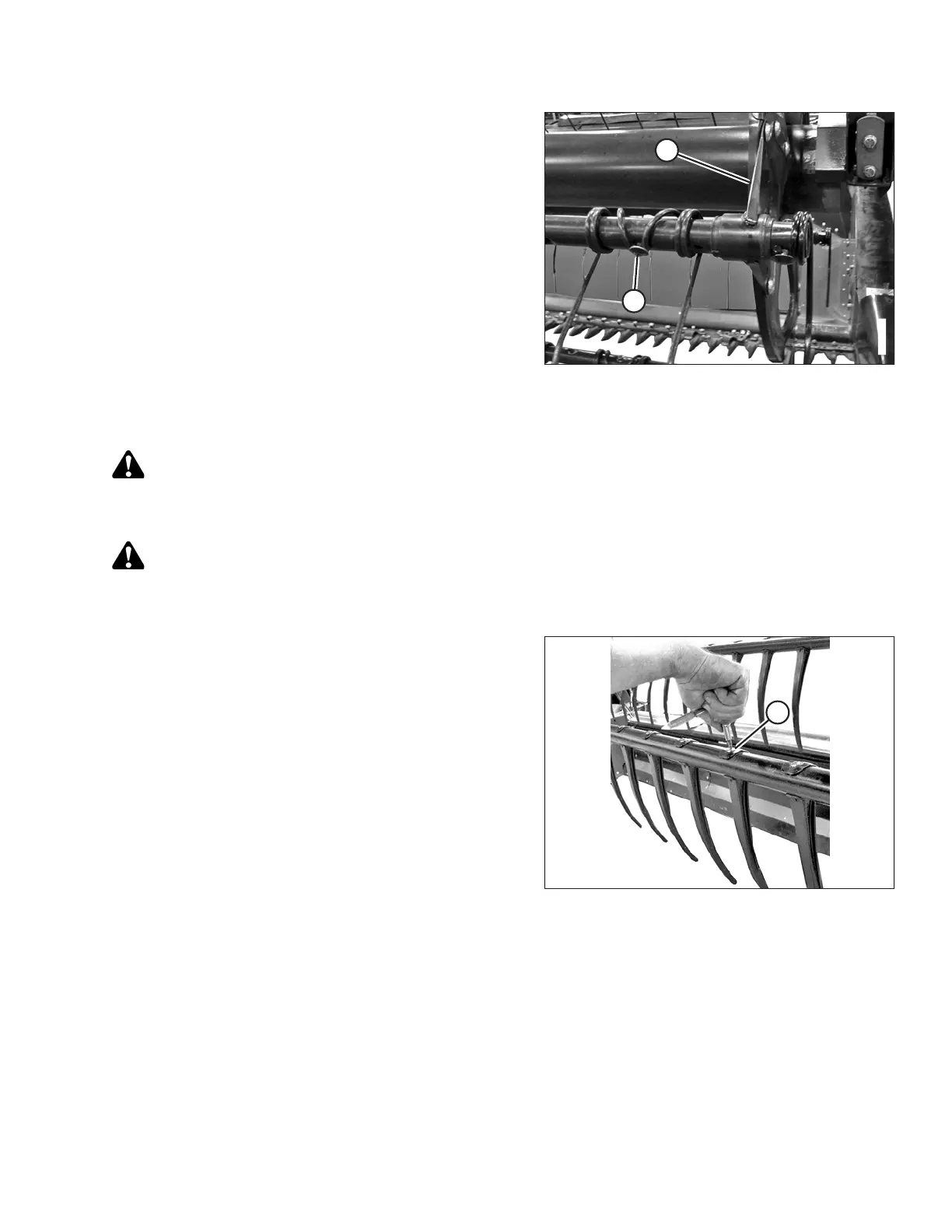

Figure 5.237: Reel Tine Tube
1. Remove the applicable tine. Refer to Removing Steel
Tines, page 441.
2. Slide the new tines and reel arm (A) onto the end of
the tube.
3. Install the tine tube bushings. Refer to 5.13.5 Tine Tube
Bushings, page 445.
4. Attach the tines to the reel tine bar with bolts and
nuts (B).
Removing Plastic Fingers
DANGER
To avoid bodily injury or death from unexpected start-up or fall of raised machine, always stop engine,
remove key, and engage safety props before going under header for any reason.
WARNING
To avoid bodily injury from fall of raised reel, always engage reel safety props before going under raised
reel for any reason.
Figure 5.238: Plastic Fingers
1. Remove screw (A) using a Torx
®
Plus 27 IP
socket wrench.
MAINTENANCE AND SERVICING
