MacDon FD75 - Removing Crop Dividers Without Latch Option from Header

214323 95 Revision A
1005674
A
B
C

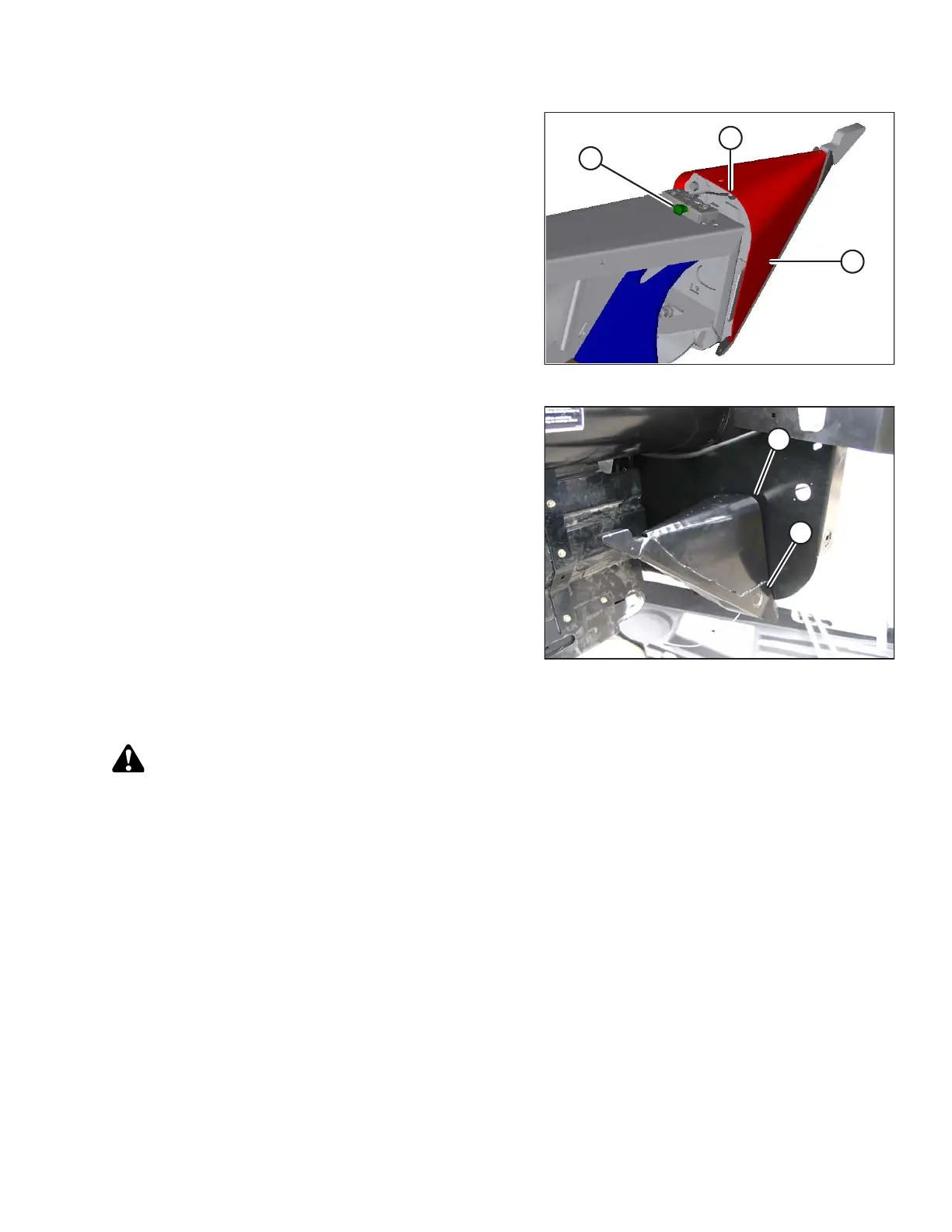

Figure 3.110: Crop Divider
3. Lift safety lever (A).
4. Hold onto crop divider (B), push lever (C) to open latch,
and lower crop divider.
1001833
A
B
Figure 3.111: Stored Crop Divider
5. Lift crop divider off endsheet and store as follows:
a. Insert pin (A) on crop divider into hole in endsheet
at location shown.
b. Lift crop divider and position lugs (B) on crop
divider into bracket on endsheet. Ensure lugs
engage bracket.
6. Close or install endshields. Refer to 3.2.3 Endshields,
page 31.
Removing Crop Dividers without Latch Option from Header
DANGER
To avoid bodily injury or death from unexpected start-up or fall of raised machine, always stop engine,
remove key, and engage safety props before going under header for any reason.
1. Lower reel, raise header, stop engine, remove key, and engage safety props. Refer to your combine operator’s
manual for instructions.
2. Open or remove endshields. Refer to 3.2.3 Endshields, page 31.
OPERATION
