214323 466 Revision A

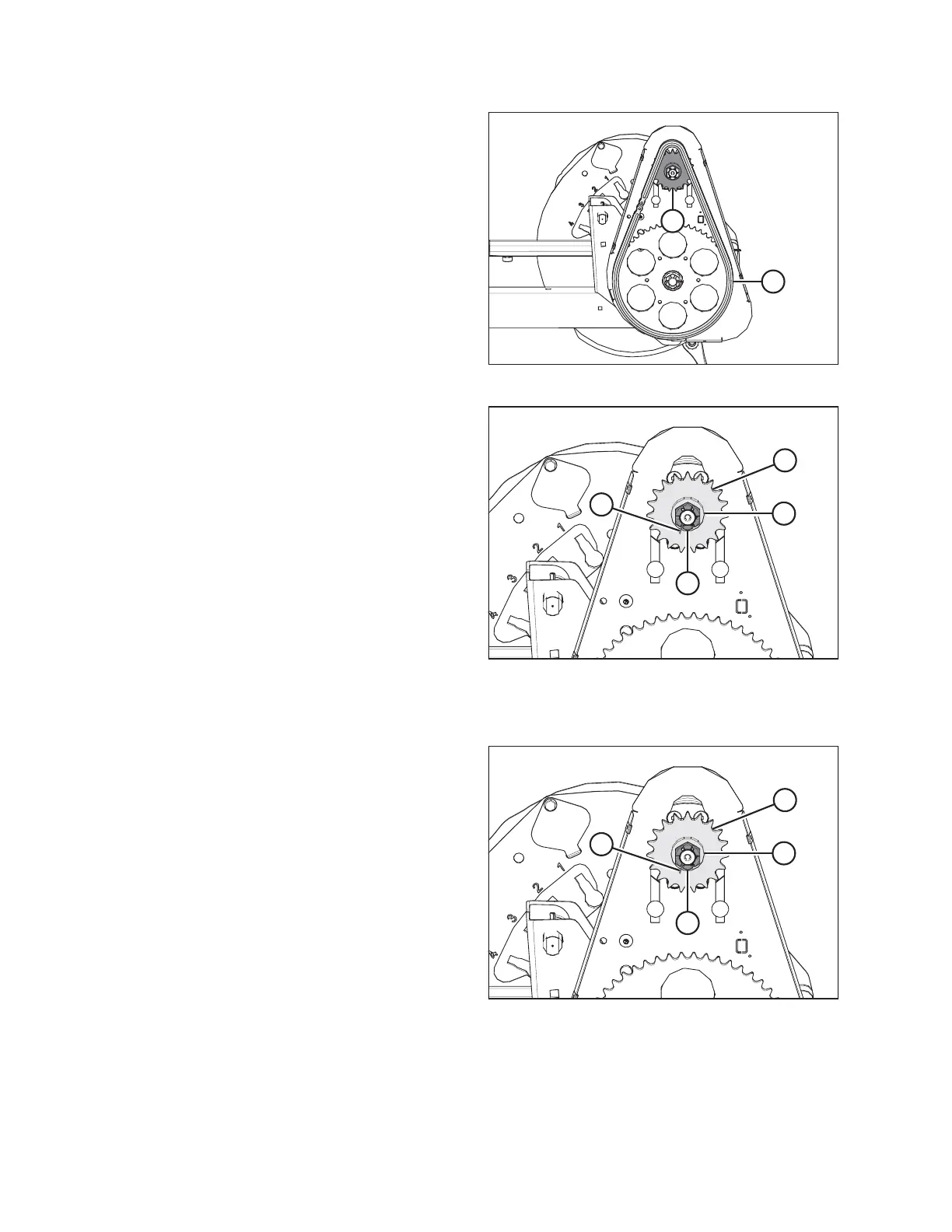

Figure 5.290: Reel Drive
3. Remove drive chain (A) from drive sprocket (B).
Figure 5.291: Reel Drive
4. Remove cotter pin (A), slotted nut (B), and flat
washer (C) from the motor shaft.
5. Remove drive sprocket (D). Ensure the key remains in
the shaft.
IMPORTANT:
To avoid damaging the motor, use a puller if the drive
sprocket does not come off by hand. Do NOT use a pry
bar and/or hammer to remove drive sprocket (D).
Installing Reel Drive Sprocket
Figure 5.292: Reel Drive
1. Align the keyway in sprocket (D) with the key on the
motor shaft, and slide the sprocket onto the shaft.
Secure with flat washer (C) and slotted nut (B).
2. Torque slotted nut (B) to 54 Nm (40 lbf∙ft).
3. Install cotter pin (A). If necessary, tighten slotted nut (B)
to the next slot to install the cotter pin.
MAINTENANCE AND SERVICING
