214323 429 Revision A
Installing Side Draper Idler Roller

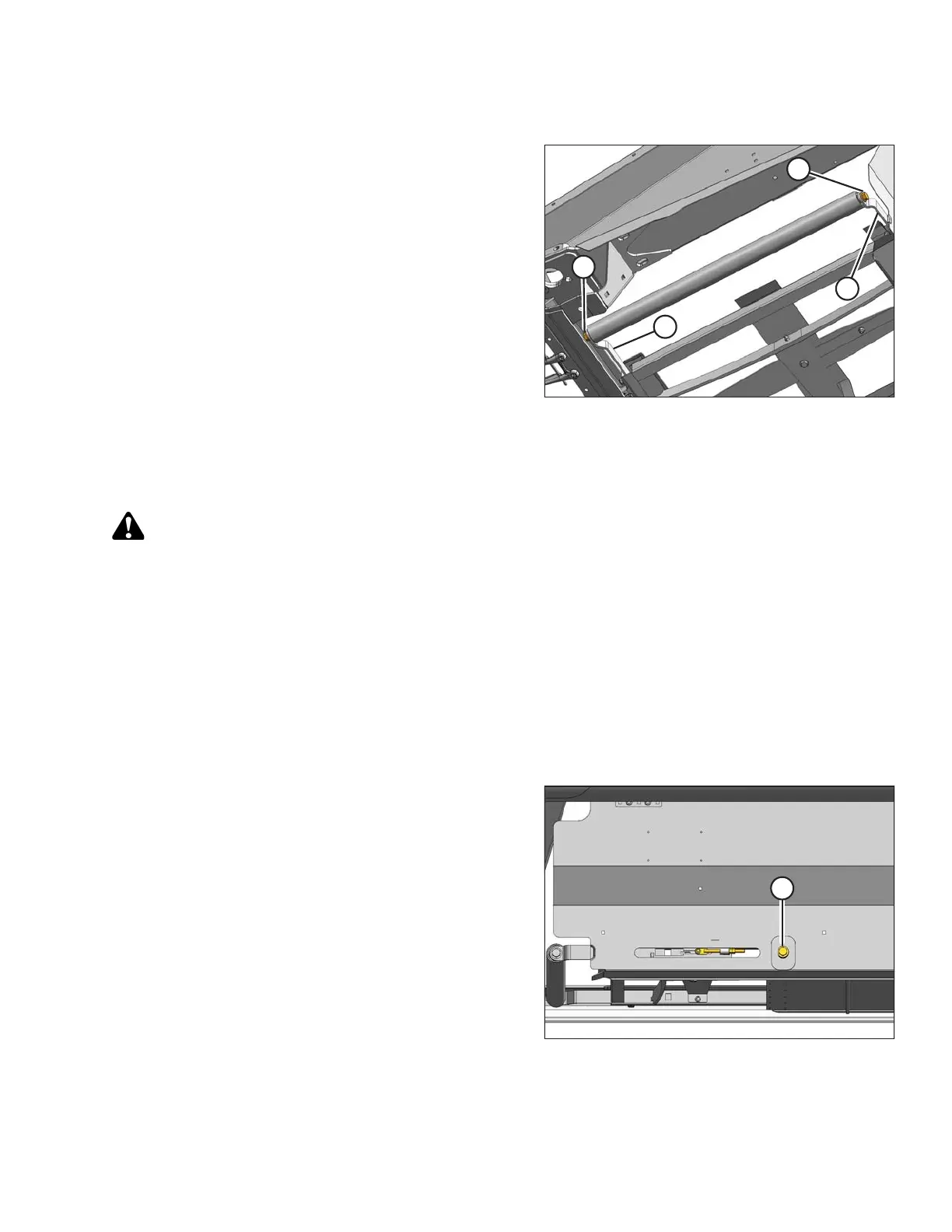

Figure 5.209: Idler Roller
1. Position the stub shaft into the idler roller in forward
arm (B) on the deck.
2. Push on the roller to slightly deflect the forward arm so
the stub shaft at the rear of the roller can be slipped into
rear arm (C).
3. Install bolts (A) with washers, and torque to 93 Nm
(70 lbf·ft).
4. Wrap the draper over the idler roller, close the draper,
and set the tension. Refer to 5.12.2 Installing Side
Drapers, page 418.
5. Run the machine and verify the draper tracks correctly.
Adjust the draper tracking if required. Refer to 5.12.4
Adjusting Side Draper Tracking, page 422.
Side Draper Deck Drive Roller
Removing Side Draper Drive Roller
DANGER
To avoid bodily injury or death from unexpected start-up or fall of a raised machine, always stop engine
and remove key before leaving the operator’s seat, and always engage safety props before going under
the machine for any reason.
NOTE:
If the draper connector is not visible, engage the header until the connector is accessible (preferably close to the
outboard end of the deck).
1. Start the engine, raise the header, and raise the reel.
2. Engage the header and reel safety props.
3. Stop the engine, and remove the key from the ignition.
Figure 5.210: Tensioner
4. Loosen the draper by turning the adjuster bolt (A)
counterclockwise.
MAINTENANCE AND SERVICING
