214323 408 Revision A

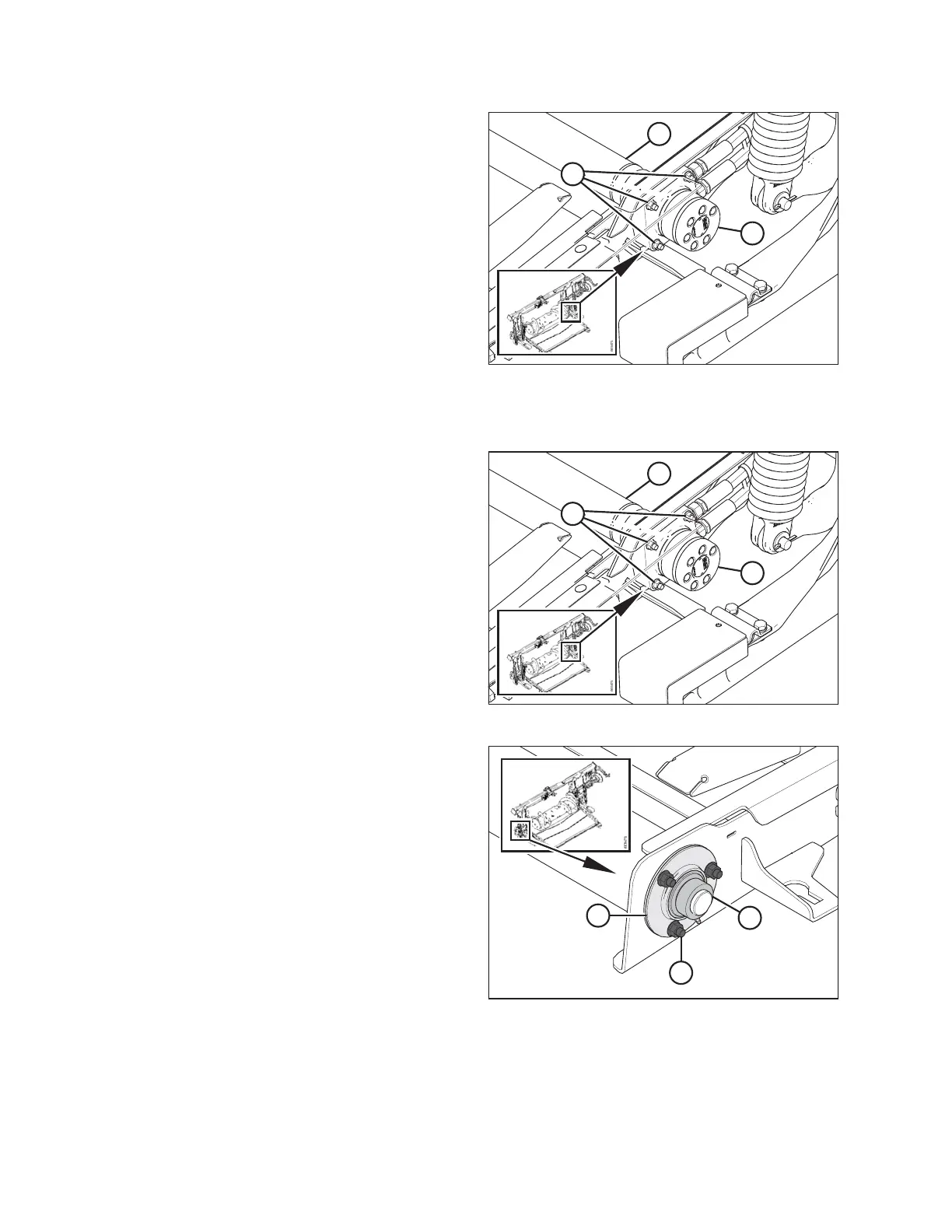

Figure 5.162: Hydraulic Motor
10. Remove the four bolts (A) securing hydraulic motor (B)
to the frame. Slide the hydraulic motor away from drive
roller (C).
11. Remove drive roller (C).
Installing CA25 Feed Draper Drive Roller
Figure 5.163: Motor
1. Apply grease to the spline.
2. Position drive roller (C) in the adapter frame.
3. Slide hydraulic motor (B) into drive roller (C). Secure
the motor to the feed deck with four bolts (A).
Figure 5.164: Bearing
4. Install bearing flanges (C) and the bearing.
5. Install three bolts (B) to secure the bearing and
flanges (C) to the feed deck.
6. Lock bearing collar (A) and tighten the setscrew.
7. Install the feed deck draper. Refer to 5.10.1 Replacing
CA25 Feed Draper, page 404.
8. Tension the feed draper. Refer to 5.10.2 Adjusting
CA25 Feed Draper Tension, page 405.
9. Attach the header to the adapter. Refer to 4.7.2
Attaching Header to Adapter and Combine, page 315.
MAINTENANCE AND SERVICING
