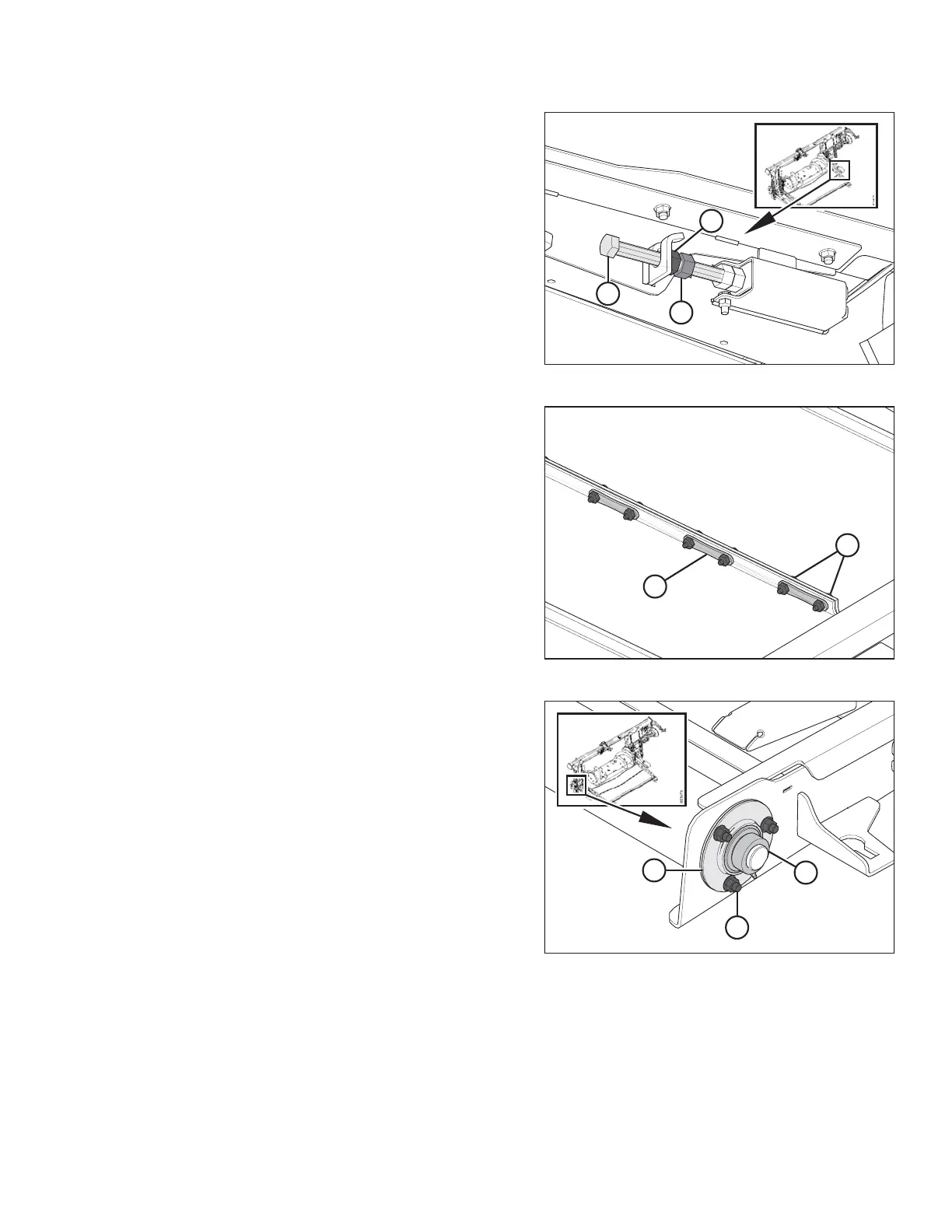

Figure 5.159: Tensioner
4. Loosen jam nut (A) and hold nut (B) with a wrench while
turning bolt (C) counterclockwise to release the draper
tension. Repeat at the opposite side.
Figure 5.160: Draper Connector
5. Remove screws (A) and nuts, and remove the draper
connector straps (B).
6. Open the feed draper.
Figure 5.161: Bearing
7. Loosen the setscrew and unlock bearing lock collar (A).
8. Remove three bolts (B).
9. Remove bearing flanges (C) and the bearing.
