214323 487 Revision A
6.5.3 Draper Deflector (Narrow)

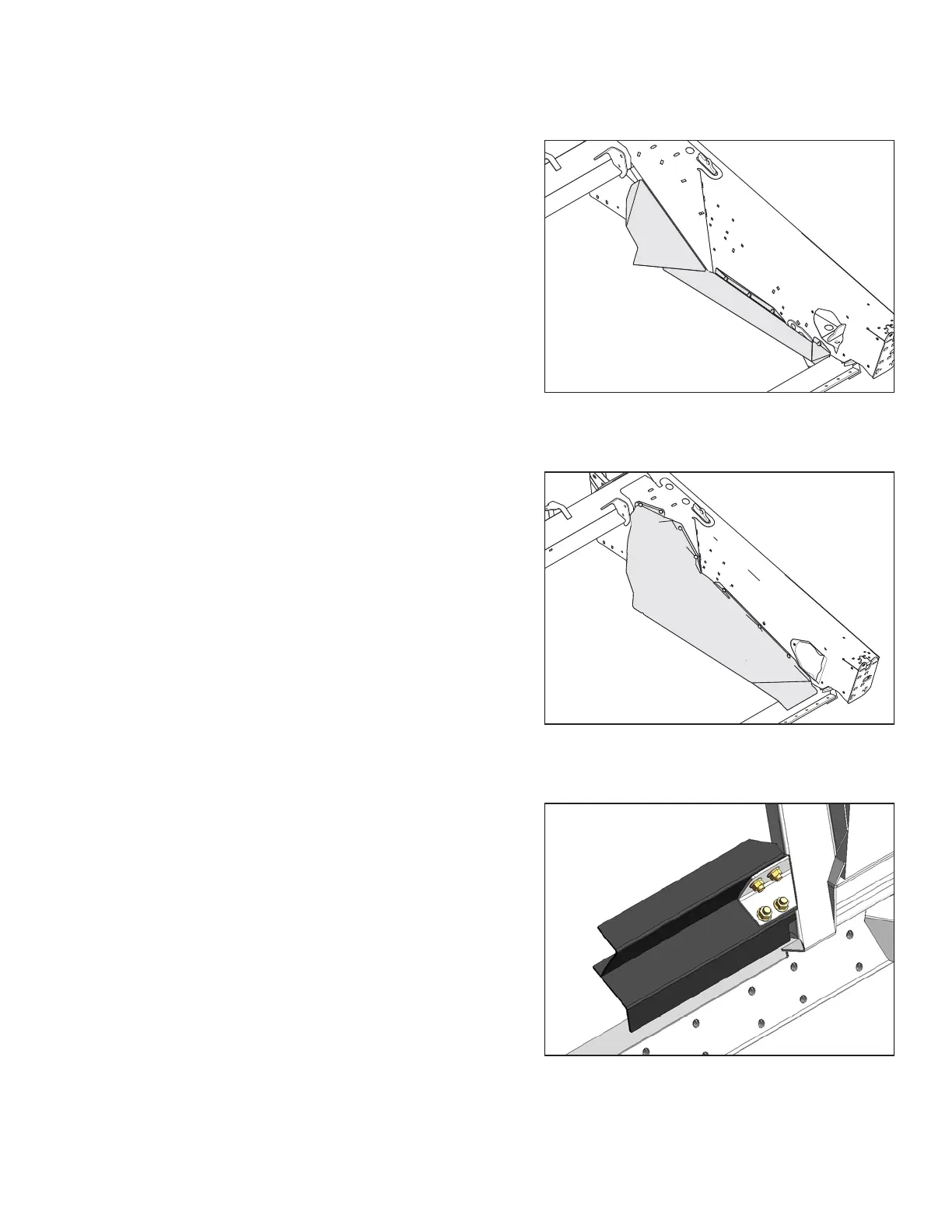

Figure 6.15: Draper Deflector (Narrow)
Narrow metal draper deflectors attach to the inboard side of
the endsheets to prevent material from falling through the
gap between the endsheet and the draper while minimizing
reel carryover in bushy crops.
Refer to your parts catalog for the necessary parts.
6.5.4 Draper Deflector (Wide)
Figure 6.16: Draper Deflector (Wide)
Wide metal draper deflectors attach to the inboard side of
the endsheets to prevent material from falling through the
gap between the endsheet and the draper.
Refer to your parts catalog for the necessary parts.
6.5.5 Stripper Bars
Figure 6.17: Stripper Bar
Stripper bars improve feeding in certain crops such as rice.
They are NOT recommended in cereal crops.
Choose from the following combine models to determine
which stripper bar kit to order.
• CLAAS (Narrow Body) – MD #B4830
• CLAAS (Wide Body) – MD #B4920
• CIH 2377/88 and 2577/2588 – MD #B4830
• JD CTS/STS – MD #B4921
• CIH 7010/8010 – MD #B4922
• NH CR 970/980/9070/9080 – MD #B4922
• NH CX/TX CIH 2366 – MD #B4920
• NH CR 940/960/9040/9060 – MD #B4923
OPTIONS AND ATTACHMENTS
