MacDon FD75 - Endshields; Opening Endshield

214323 31 Revision A
1001697
B
A

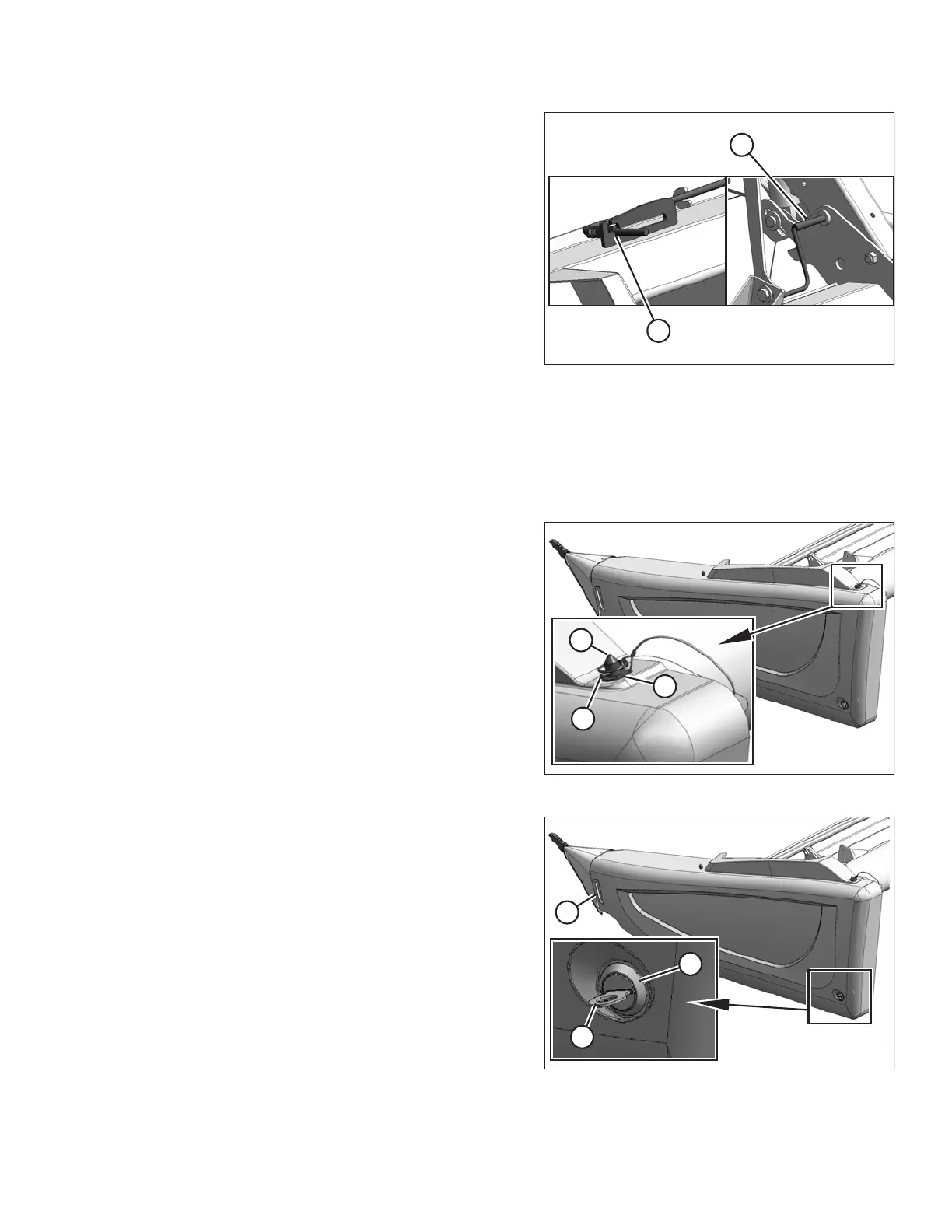

Figure 3.6: Reel Safety Prop – Center Arm
3. Use the handle (B) to move the lock rod (A) to the
outboard position.
3.2.3 Endshields
A hinged, polyethylene endshield is fitted on each end of the header.
Opening Endshield
10013651001365
A
B
C
Figure 3.7: Left Endshield
1. Remove lynch pin (A) and tool (B) from pin (C) at top
rear of endshield.
1004156
A
C
B
Figure 3.8: Left Endshield
2. Use tool (B) to unlock latch (A) at lower rear corner
of endshield.
3. Lift endshield at aft end to clear pin at top rear of
endshield.
4. Swing endshield out and away from header while
maintaining forward pressure to prevent endshield from
slipping out of tab (C) at front of endsheet.
OPERATION
