214323 346 Revision A
5.4.4 Changing Oil Filter
Change the oil filter after the first 50 hours of operation and every 250 hours thereafter.
Obtain Filter Service kit (MD #183620). The kit includes one filter element, one O-ring, and one square-cut gasket.
The O-ring should be used ONLY with Bosch hydraulic manifolds. The square-cut gasket should be used for all
other applications.
DANGER
To avoid bodily injury or death from unexpected start-up of machine, always stop engine and remove key
from ignition before leaving operator’s seat for any reason.

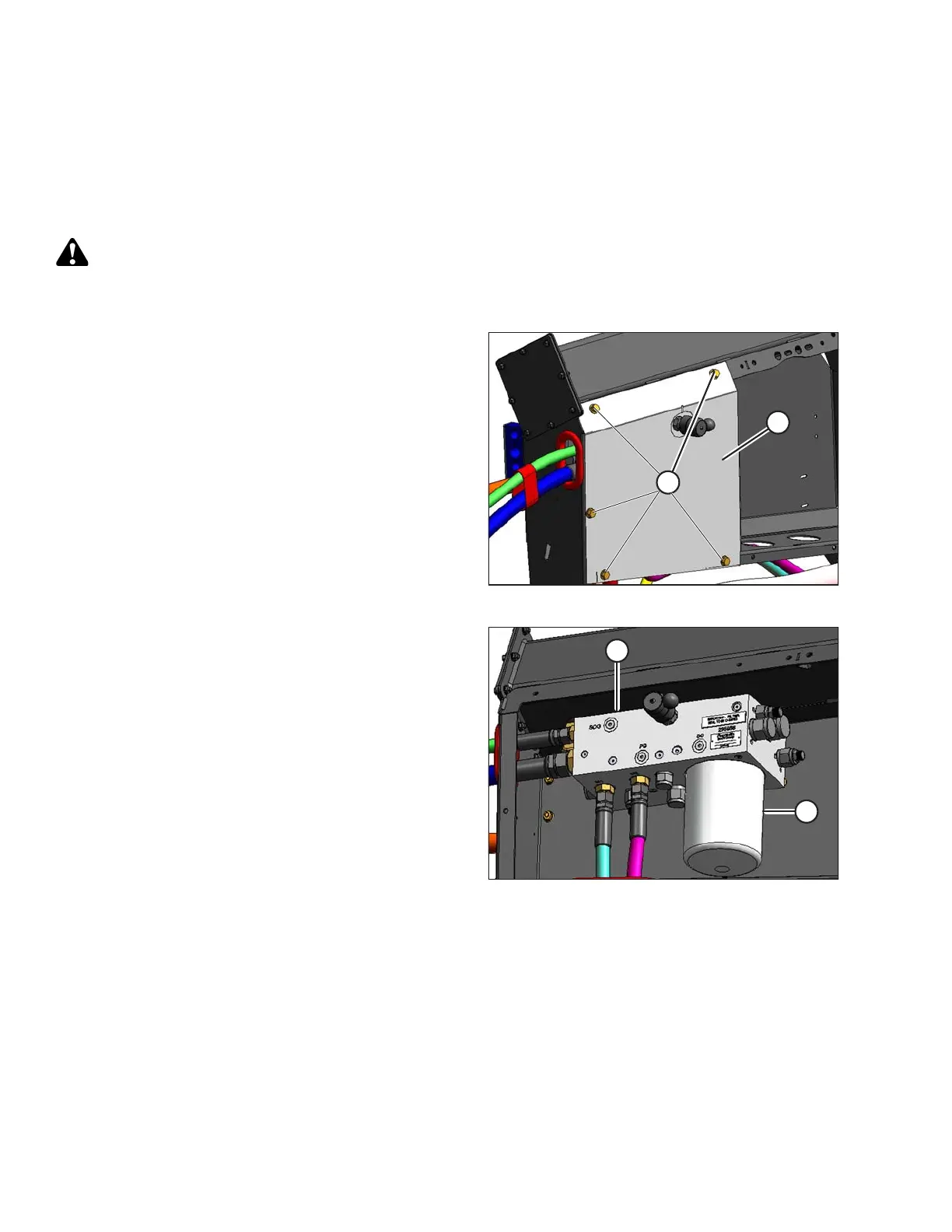

Figure 5.32: Adapter Hydraulics Cover
1. Remove five screws (A) and remove cover (B).
Figure 5.33: Hydraulic Manifold and Filter
2. Clean around the mating surfaces of the filter (B) and
manifold (A).
3. Remove the spin-off filter (B) and clean the exposed
filter port in the manifold (A).
MAINTENANCE AND SERVICING
