MacDon FD75 - Storing the Tow-Bar

214323 255 Revision A
Storing the Tow-Bar
1004704
A
B
C
D

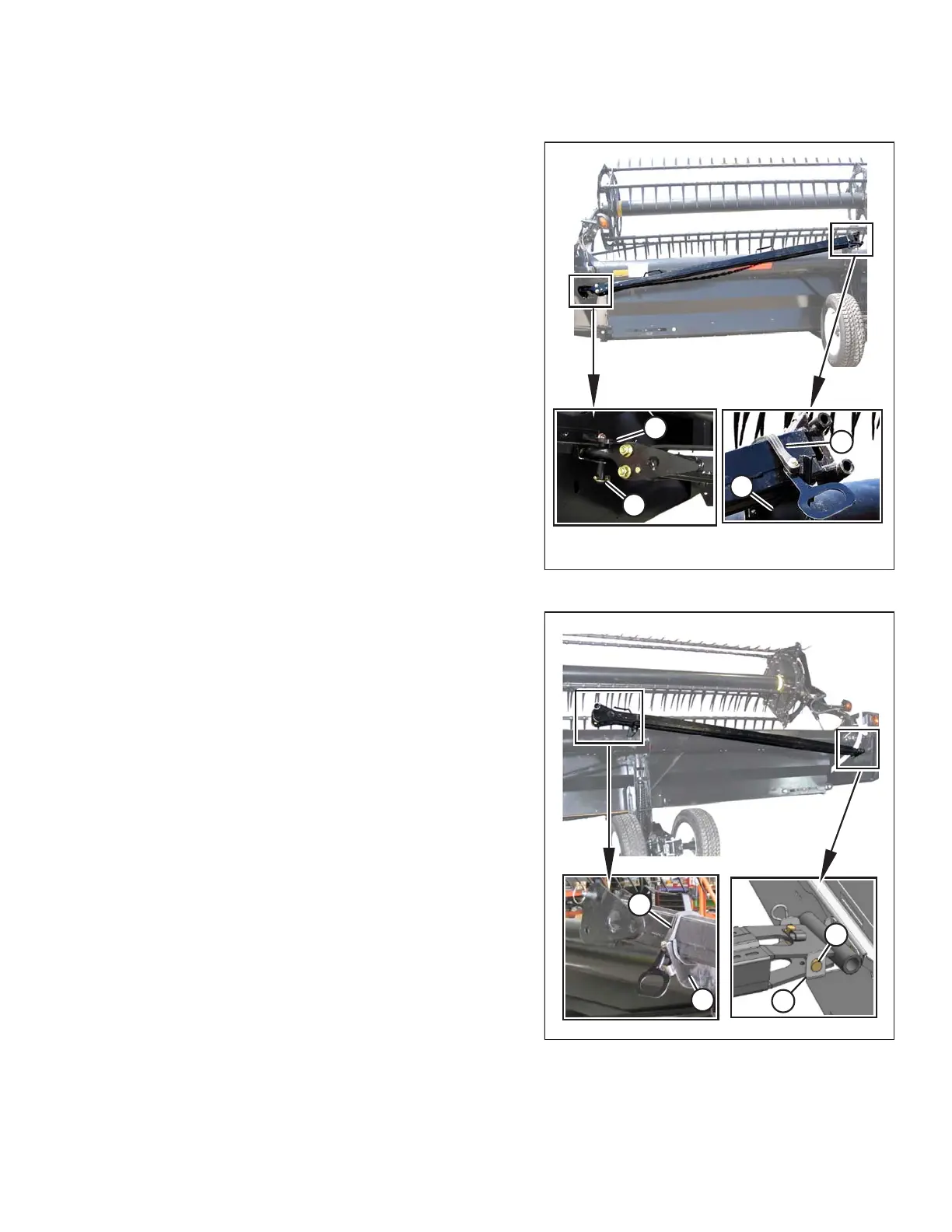

Figure 3.450: Tow-Bar Storage
1. Place the inner end of the outer half of the tow-bar into
cradle (A) on the left side of the header backtube.
2. Secure clevis/pintle end of the tow-bar in support (B) on
the endsheet using hitch pin (C). Secure with lynch pin.
3. Install rubber strap (D) on cradle (A).
1004705
A
B
C
D
Figure 3.451: Tow-Bar Storage
4. Place the inner end of the inner half of the tow-bar into
cradle (A) on the right side of the header backtube.
5. Secure the tube end of the tow-bar in support (B) on the
endsheet using clevis pin (C). Secure with hairpin.
6. Install rubber strap (D) on cradle (A).
OPERATION
