Calibrating Feeder House (John Deere S7 Series)
Feeder house calibration must be done before header calibration.
For best performance of auto header height control (AHHC), perform these procedures with center-link set to D.
When setup and calibration are complete, adjust center-link back to desired header angle. Refer to 3.7.4 Header
Angle, page 76.
NOTE:
Changes may have been made to the combine controls or display since this document was published. Refer to the
combine operator’s manual for updates.
1. Ensure center-link is set to D.
2. Rest header on down stops and unlock adapter float.
3. Place wings in locked position.

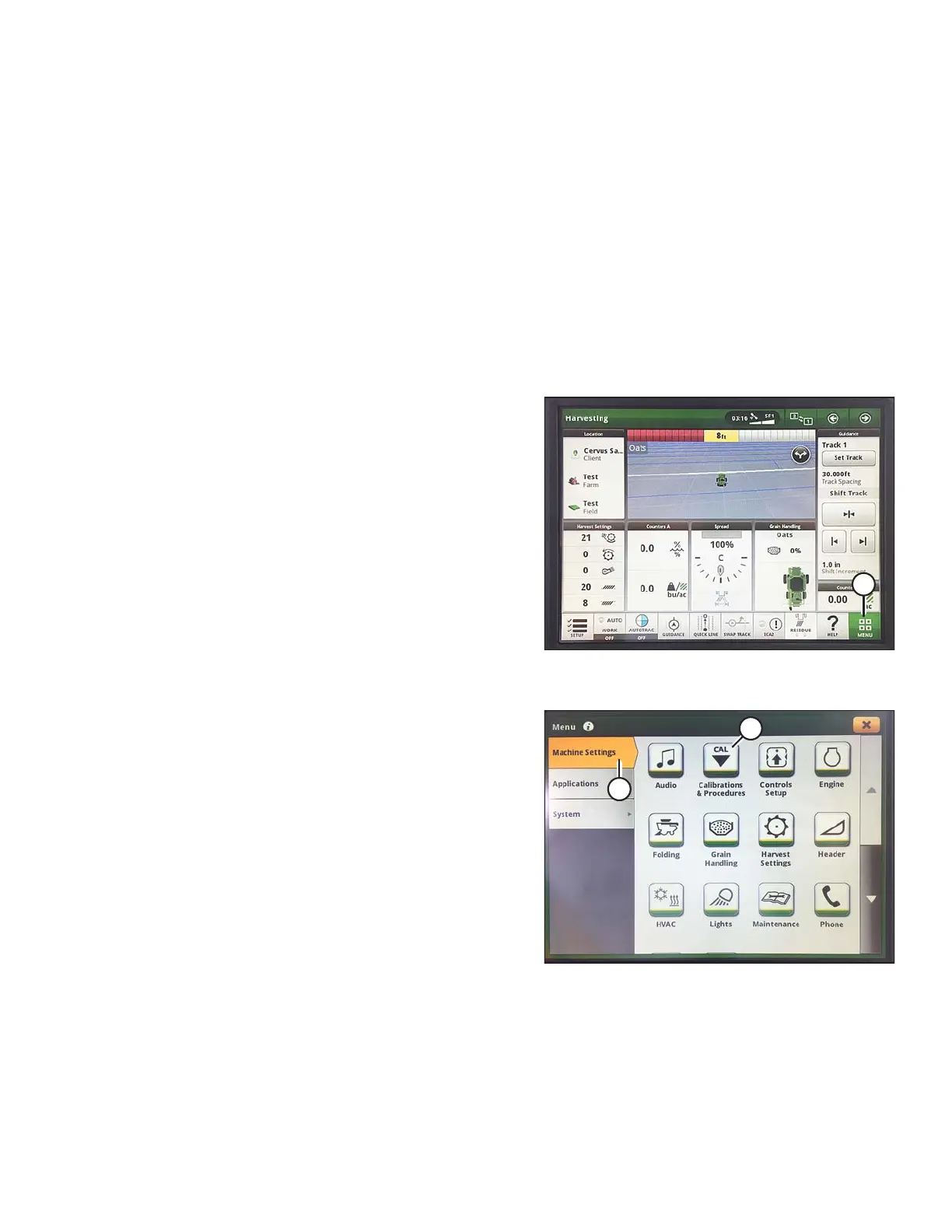

Figure 3.331: John Deere S7 Display –
Harvesting Page
4. On the HARVESTING page, select the MENU icon (A)
in the bottom right corner of screen. The MENU opens.
Figure 3.332: John Deere S7 Display – Machine
Settings
5. Select the MACHINE SETTINGS tab (A).
6. Select the CALIBRATIONS & PROCEDURES icon (B).
The CALIBRATIONS & PROCEDURES page displays.
