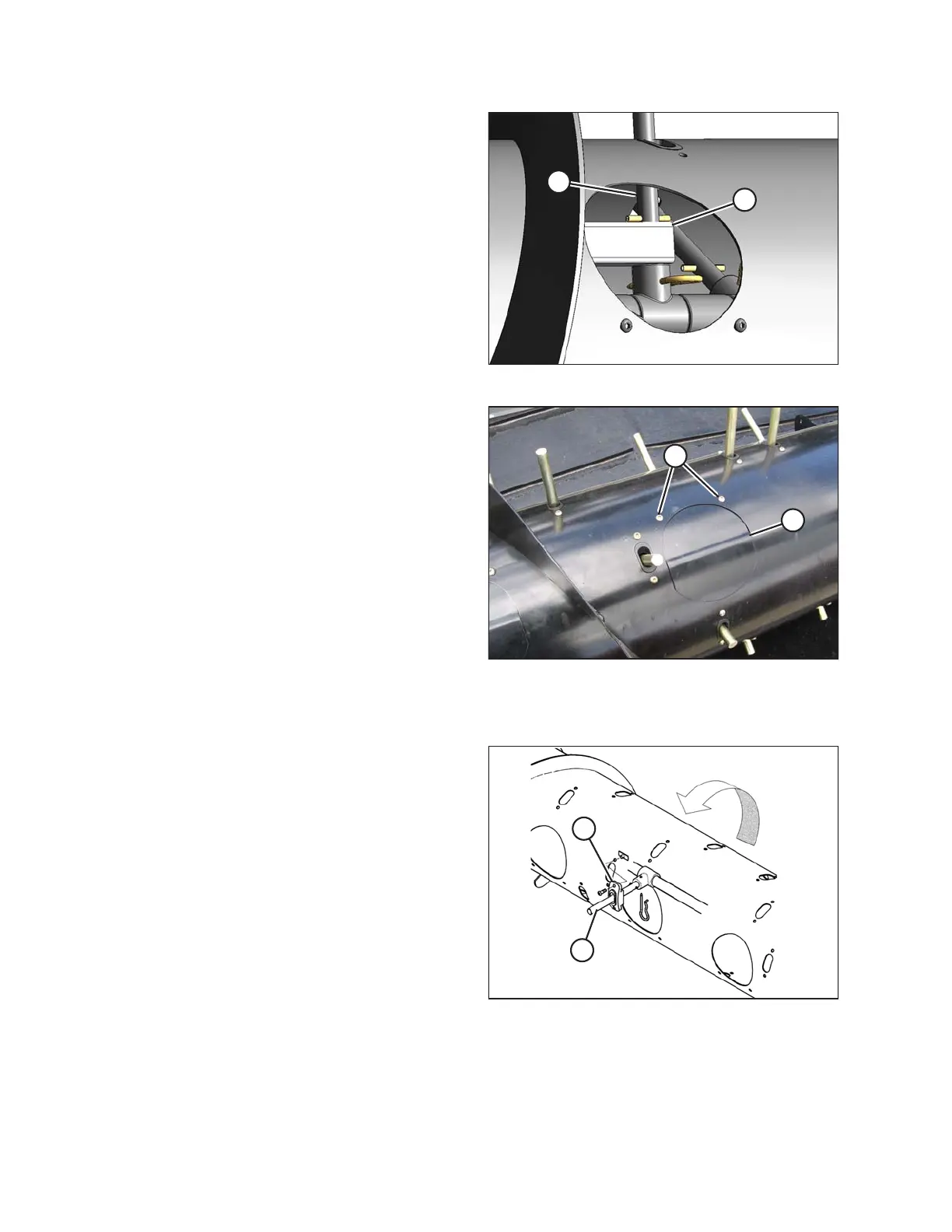

Figure 5.88: Tine
NOTE:
If installing the #6 tine (A), it must be inserted through
square drive tube (B).
7. Secure the #6 tine (A) in bushing (C) with hairpin (D).
Install the hairpin with the closed end leading with
respect to auger forward rotation.
Figure 5.89: Auger
8. Replace access cover (B) and secure with screws (A).
Coat screws with Loctite
®
#243 (or equivalent) and
torque to 8.5 Nm (75 lbf∙in).
Replacing Feed Auger Tine Guides
Figure 5.90: Auger
1. Remove tine (B) and plastic guide (D). Refer to
Removing Feed Auger Tines, page 368.
