214323 434 Revision A

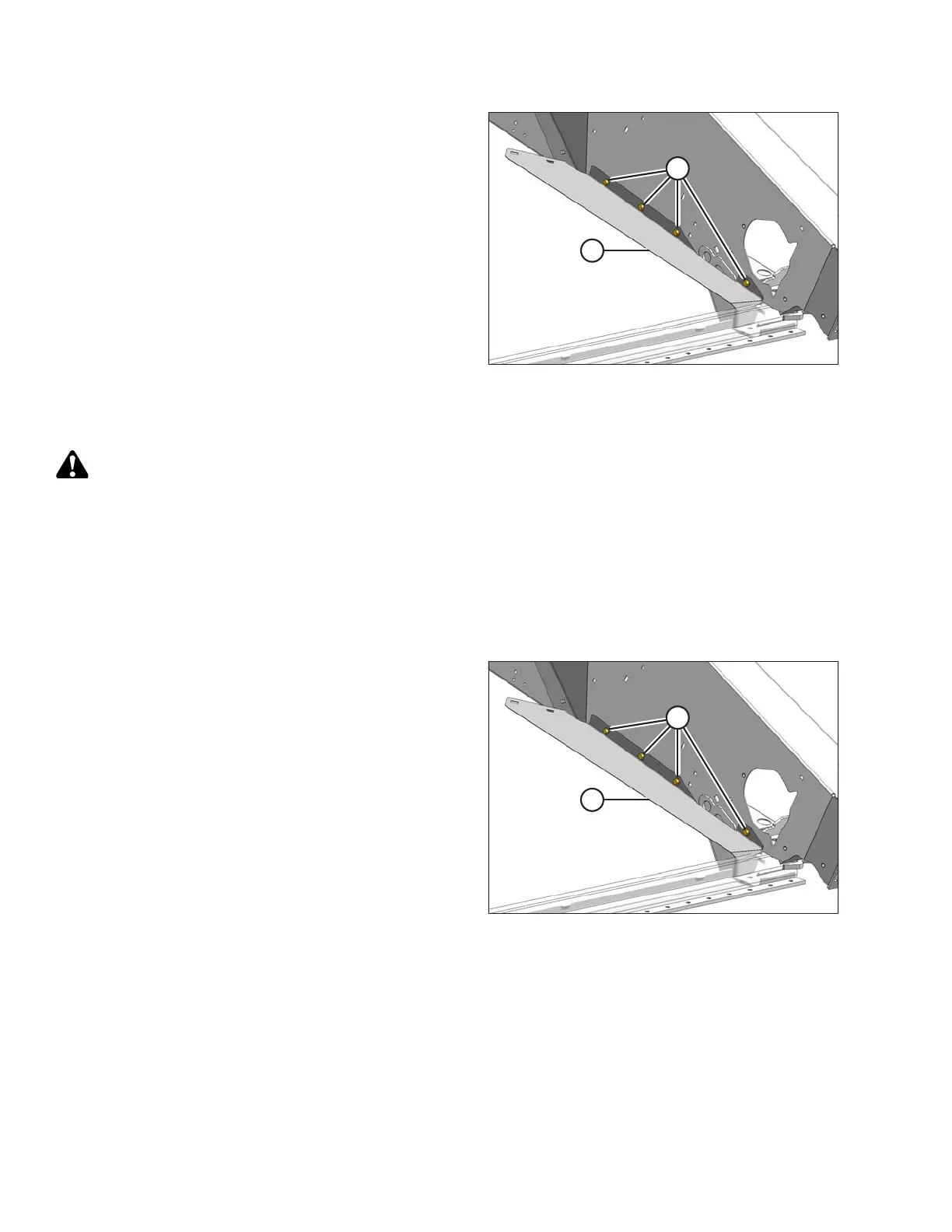

Figure 5.221: Forward Deflector
7. Remove four screws (A) and remove deflector (B).
8. Repeat for the opposite end of the header.
Installing Narrow Draper Deflectors
DANGER
To avoid bodily injury or death from unexpected start-up or fall of a raised machine, always stop engine
and remove key before leaving the operator’s seat, and always engage safety props before going under
the machine for any reason.
1. Raise the reel to its full height and lower the header to the ground.
2. Shift the decks to create a work space at one end of the header if hydraulic deck shift is installed; otherwise,
move the decks manually after shutting down the combine.
3. Stop the engine, remove the key, and engage the reel safety props.
Figure 5.222: Forward Deflector
4. Open the endshield. Refer to Opening Endshield, page
31.
5. Position forward deflector (B) onto the endsheet and
temporarily install forward and aft 3/8 in. x 5/8 in. self
tapping screws (A).
6. Check the fit of the forward end of deflector (B) on the
cutterbar and ensure there is no gap between the
deflector and cutterbar. Remove and bend the deflector
as required to obtain the best fit.
7. Install two 3/8 in. x 5/8 in. self-tapping screws (A) and
tighten all four screws.
MAINTENANCE AND SERVICING
