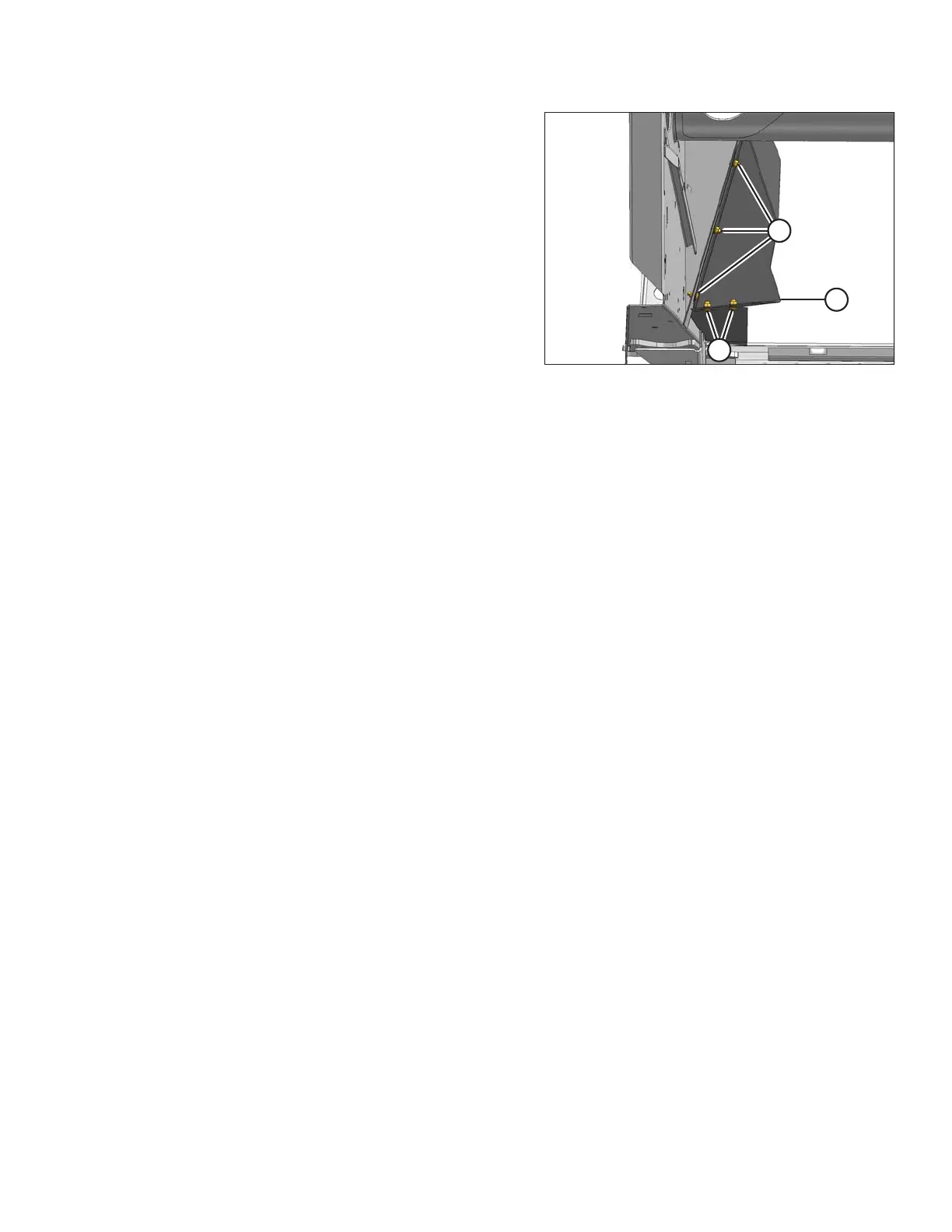

Figure 5.223: Aft Deflector
8. Position aft deflector (C) as shown and install three 3/8
in. x 3/4 in. carriage bolts (B) and lock nuts.
9. Install two Torx
®
head screws (A) and lock nuts with the
heads facing down.
10. Tighten all fasteners.
11. Repeat for the opposite end of the header.
