MacDon FD75 - Replacing Pointed Guards

214323 381 Revision A
1001260

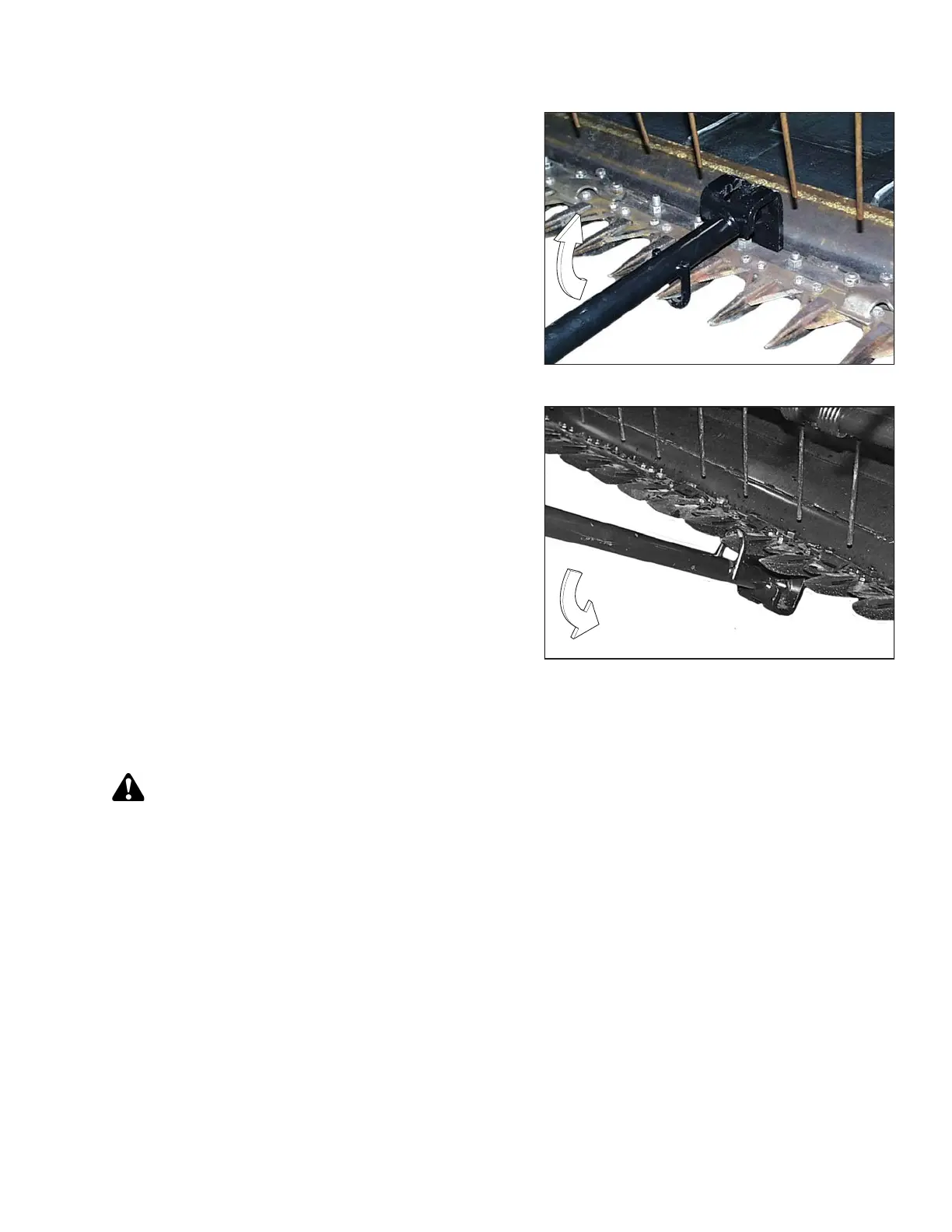

Figure 5.108: Upward Adjustment
1. Stop engine and remove the key from ignition.
2. Position the tool as shown, and pull up to adjust the
guard tips upwards.
1001261
Figure 5.109: Downward Adjustment
3. Position the tool as shown, and push down to adjust the
guard tips downwards.
NOTE:
If crop is difficult to cut, install stub guards with top
guards and adjuster plates. A kit is available from your
MacDon Dealer. Refer to 6.3.3 Stub Guard Conversion
Kit, page 482.
Replacing Pointed Guards
Normal, drive side, and end guard replacement
WARNING
To avoid bodily injury or death from unexpected start-up or fall of raised machine, always stop engine,
remove key, and engage safety props before going under machine for any reason.
MAINTENANCE AND SERVICING
