214323 424 Revision A
5.12.5 Adjusting Deck Height
DANGER
To avoid bodily injury or death from unexpected start-up or fall of raised machine, always stop engine,
remove key, and engage safety props before going under header for any reason.
IMPORTANT:
New factory installed drapers are pressure and heat checked at the factory. The gap between draper (A) and
cutterbar (B) is set to 0–3mm(0–1/8 in.). This is to prevent material from entering into the side drapers and stalling
them. You may need to decrease the deck clearance to 0 – 1 mm (1/16 in.).

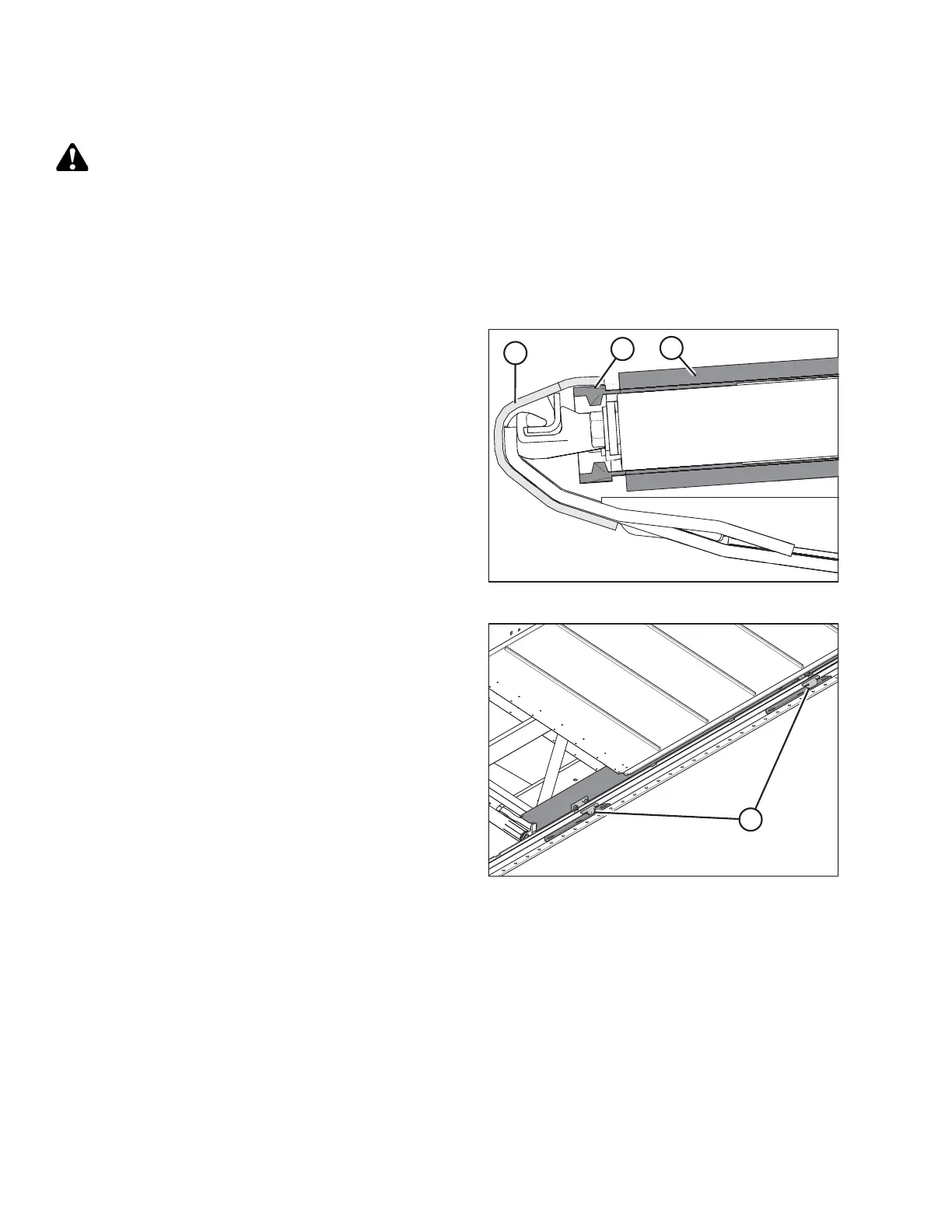

Figure 5.197: Draper Seal
1. Shut down combine, and remove key from ignition.
2. Check that clearance (A) between draper (B) and
cutterbar (C) is 0–3mm(0–1/8 in.).
Figure 5.198: Draper Deck Supports
3. Take measurement at deck supports (A) with the
header in working position.
4. Loosen the draper tension. Refer to 5.12.3 Checking
and Adjusting Side Draper Tension, page 420.
MAINTENANCE AND SERVICING
