4.3 Challenger, Gleaner, and Massey Ferguson Combines
4.3.1 Attaching Header to Challenger, Gleaner, or Massey
Ferguson Combine
DANGER
To avoid bodily injury or death from unexpected start-up of machine, always stop engine and remove key
from ignition before leaving operator’s seat for any reason.

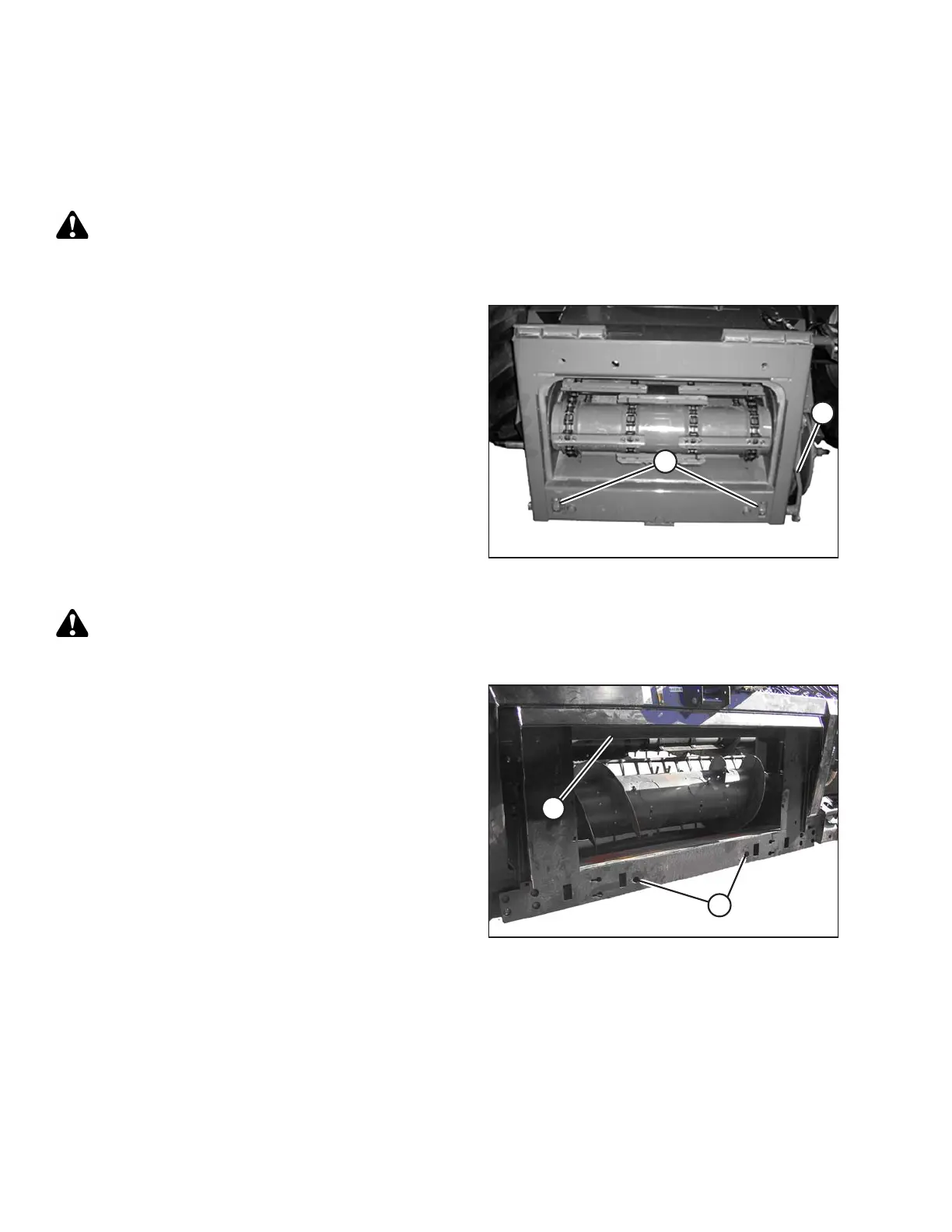

Figure 4.20: Combine Feeder House
1. Use lock handle (B) to retract lugs (A) at base of
feeder house.
CAUTION
Never start or move the machine until you are sure all bystanders have cleared the area.
Figure 4.21: Adapter
2. Start engine and slowly approach header until feeder
house is directly under adapter top cross member (A)
and alignment pins (C) on feeder house (shown in
Figure 4.22, page 279) are aligned with holes (B) in
adapter frame.
