214323 279 Revision A

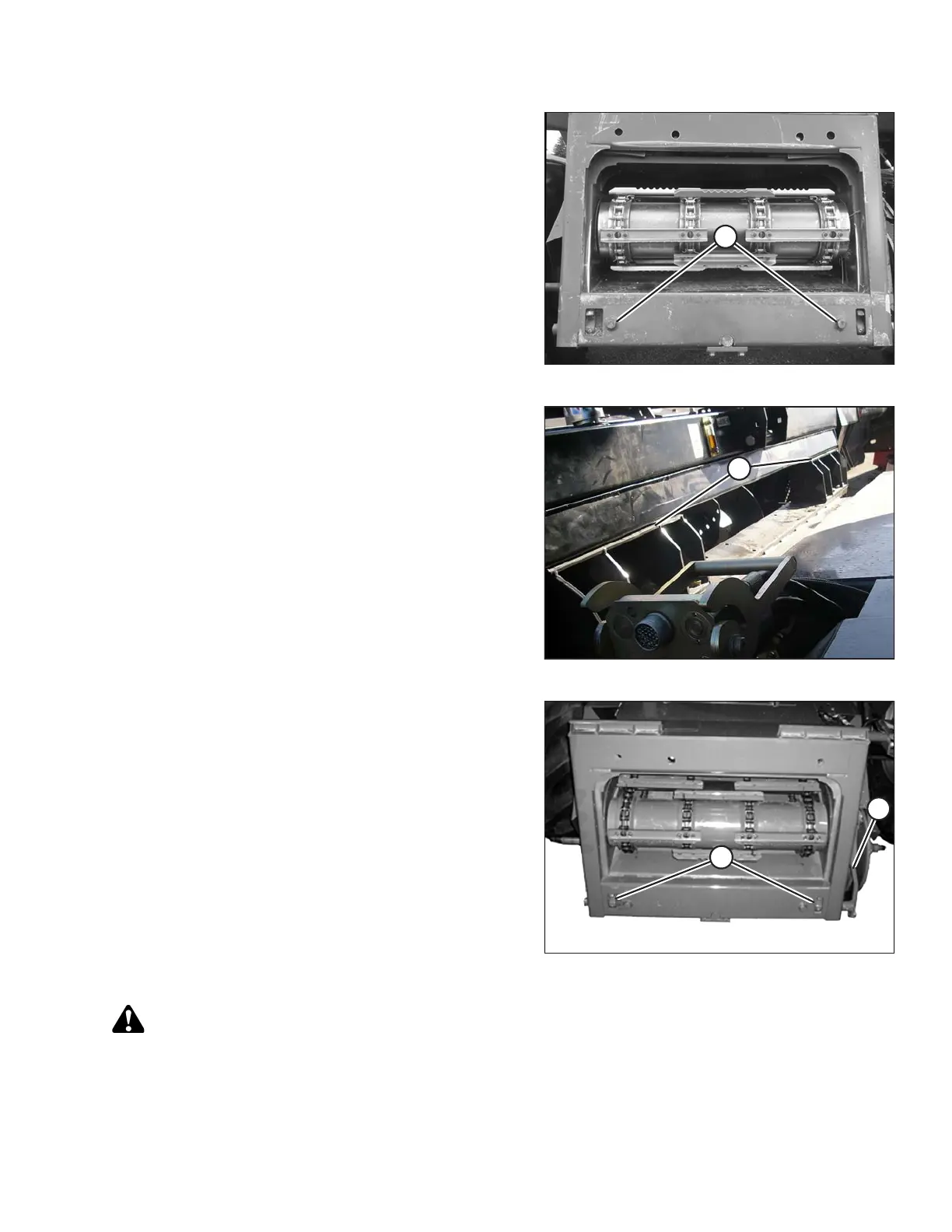

Figure 4.22: Alignment Pins on Feeder House
NOTE:
Feeder house may not be exactly as shown.
Figure 4.23: Feeder House and Adapter
3. Raise feeder house slightly to lift header, ensuring
feeder house saddle (A) is properly engaged in
adapter frame.
4. Stop engine and remove key from ignition.
Figure 4.24: Combine Feeder House
5. Use lock handle (B) to engage lugs (A) with adapter.
CAUTION
Never start or move the machine until you are sure all bystanders have cleared the area.
HEADER ATTACHMENT/DETACHMENT
