214323 350 Revision A
5.6.2 Installing Driveline
DANGER
To avoid bodily injury or death from unexpected start-up of machine, always stop engine and remove key
from ignition before leaving operator’s seat for any reason.
IMPORTANT:
If the combine output shaft splines match the adapter input shaft splines, ensure the driveline is installed with the
longer guard at the adapter gearbox end.
IMPORTANT:
Ensure the driveline length corresponds with the length specifications for your specific equipment. Refer to 2.2
Specifications, page 21.

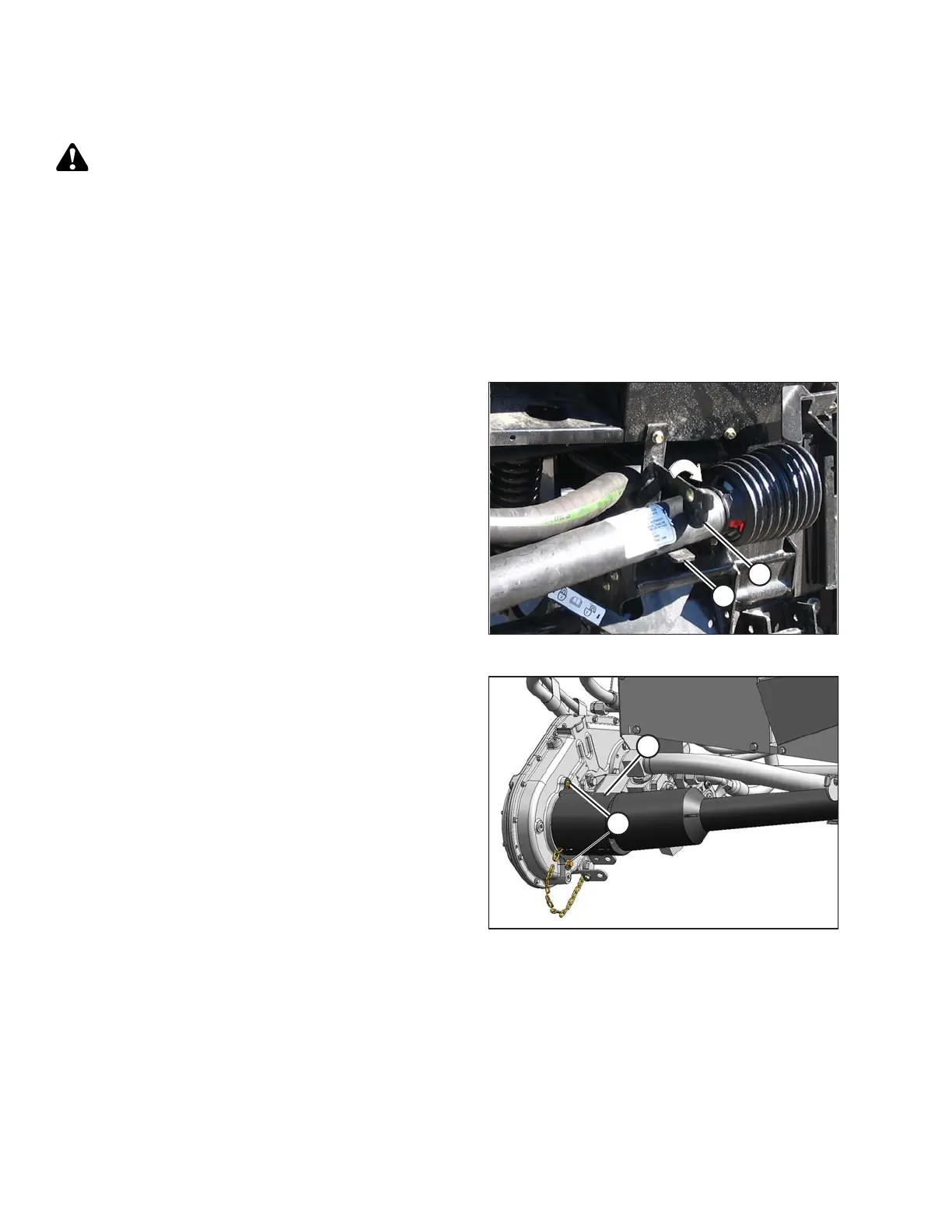

Figure 5.40: Combine End of Driveline
1. Slide the driveline into the hook (A) so the disc (B)
drops and secures the driveline.
Figure 5.41: Adapter End of Driveline
2. Slide the shield (B) over the driveline.
3. Position the driveline quick disconnect onto the adapter
gearbox shaft, pull back the collar, and slide onto the
shaft until the yoke locks onto the shaft. Release
the collar.
4. Position the shield (B) on the gearbox and secure with
nuts (A).
5. Connect the opposite end to the combine if necessary.
MAINTENANCE AND SERVICING
