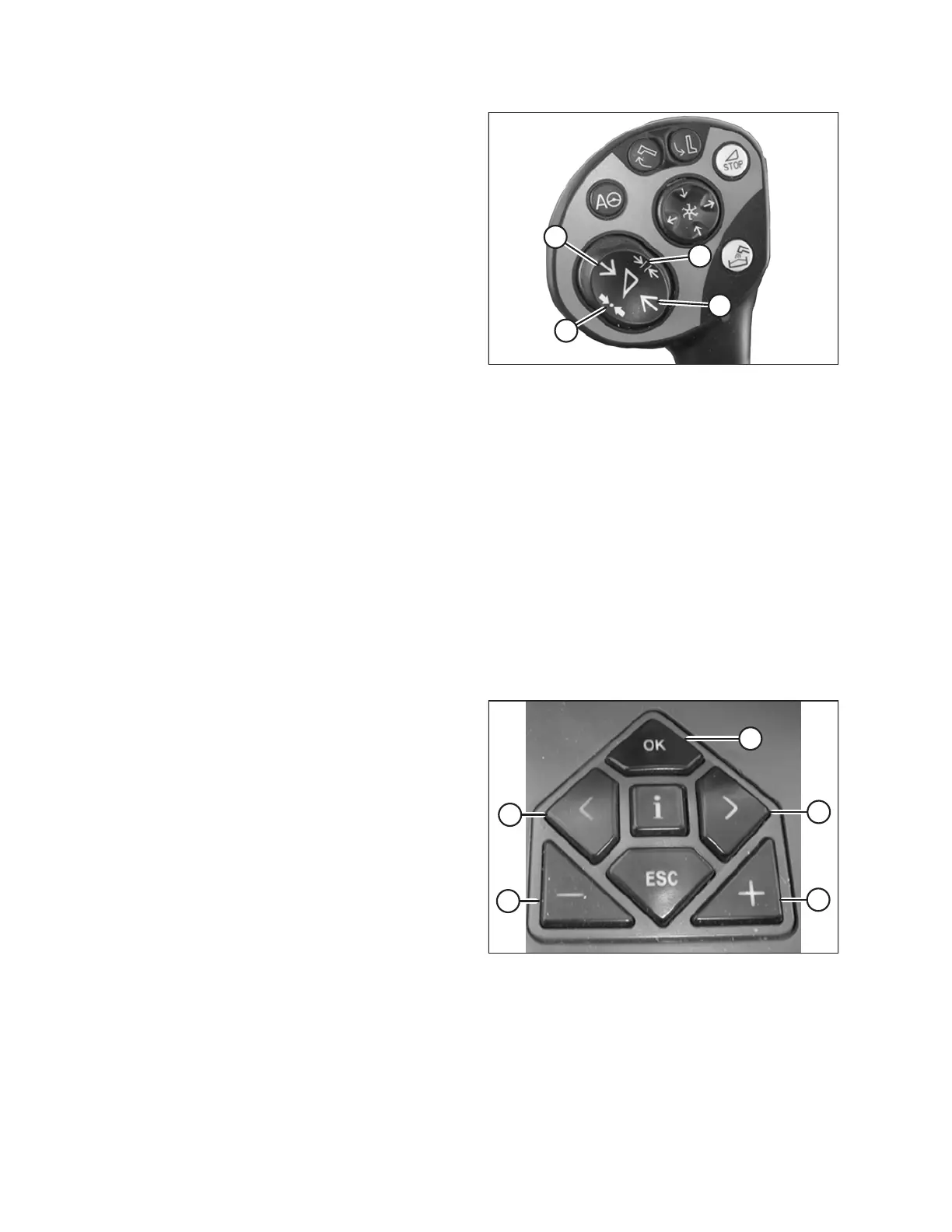

Figure 3.356: Joystick Buttons
1. Use button (A) to raise header, or button (B) to lower
header to desired cutting height.
2. Press and hold button (C) for three seconds to store
cutting height into CLAAS Electronic on-Board
Information System (CEBIS). An alarm will sound when
new setting has been stored.
3. If desired, program a second set point by using
button (A) to raise header or button (B) to lower header
to desired cutting height, and briefly press button (C) to
store second set point into CEBIS. An alarm will sound
when new setting has been stored.
NOTE:
For above ground cutting, repeat Step 1, page 208, and
use button (D) instead of button (C) while repeating
Step 2, page 208.
Setting Sensitivity of Auto Header Height Control (CLAAS 500 Series)
Setting the sensitivity of auto header height control (AHHC) system affects reaction speed of AHHC on header.
NOTE:
The upper and lower limits of header must be programmed into CLAAS Electronic on-Board Information System
(CEBIS) before adjusting sensitivity of AHHC system. The setting can be adjusted from 0–100%. When sensitivity
is adjusted to 0%, signals from sensing bands have no effect on automatic cutting height adjustment. When
sensitivity is adjusted to 100%, signals from sensing bands have maximum effect on automatic cutting height
adjustment. The recommended starting point is 50%.
NOTE:
Changes may have been made to the combine controls or display since this document was published. Refer to the
combine operator’s manual for updates.
Figure 3.357: CLAAS Combine Controls
1. Use < key (C) or > key (D) to select SENSITIVITY CAC,
and press OK key (E).
2. Use – key (A) or + (B) key to change reaction speed
setting, and press OK key (E).
