MacDon FD75 - Installing Flighting Extensions

214323 374 Revision A
1001431
A
B

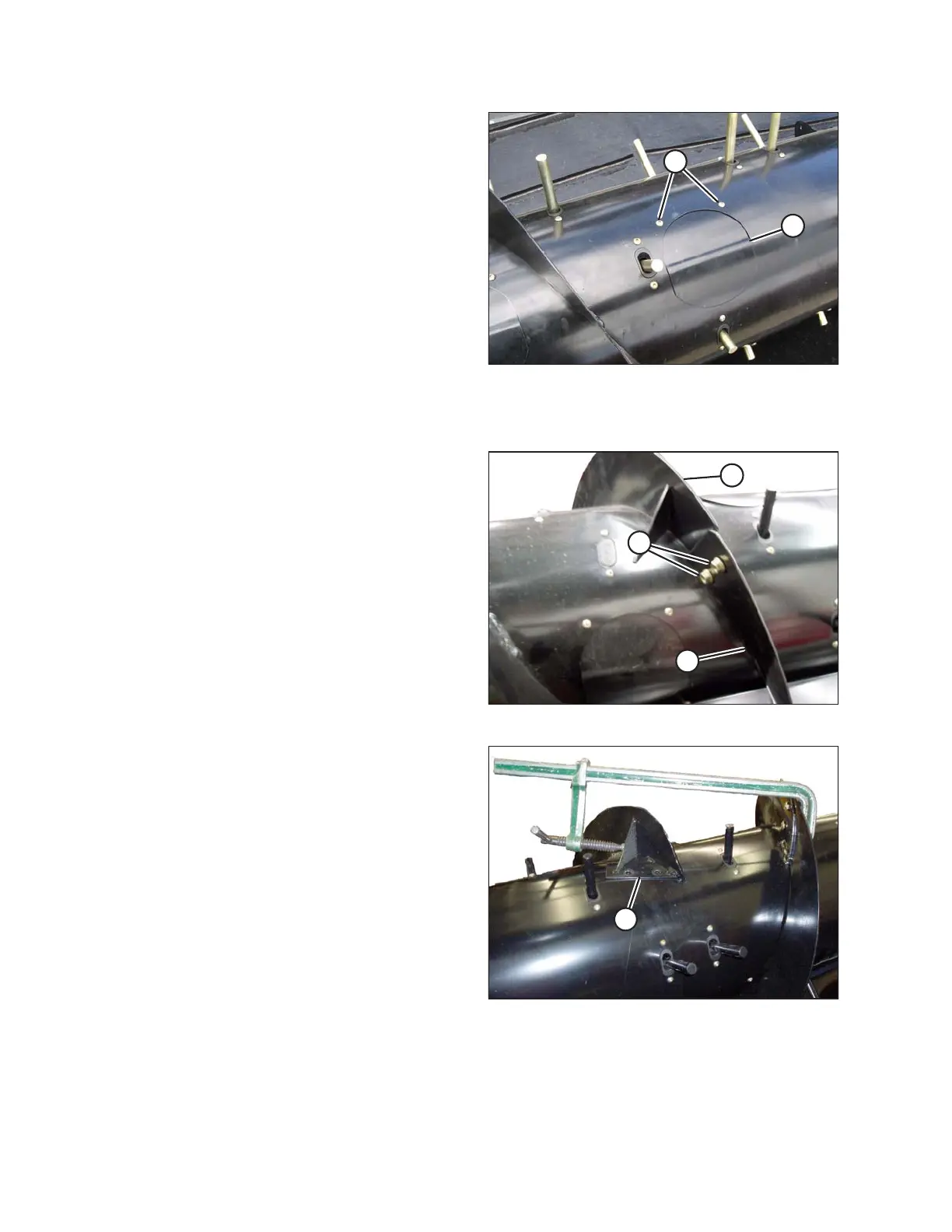

Figure 5.94: Auger
5. Replace access cover (B) and secure with screws (A).
Coat screws with Loctite
®
#243 (or equivalent) and
torque to 8.5 Nm (75 lbf∙in).
Installing Flighting Extensions
1004648
A
B
C
Figure 5.95: Flighting Extension
1. Place flighting extensions (A) on the outboard side of
auger flighting (B). Tighten the hardware finger tight
making sure the carriage bolt heads are on the inboard
side (crop side) and nuts (C) are on the outboard side of
the flighting.
1004646
A
Figure 5.96: Flighting Extension
2. Stretch flighting extensions (A) to fit the auger tube. Use
the slotted holes on the flighting extension to achieve
the best fit around the auger tube.
MAINTENANCE AND SERVICING
