6.2 Reel
6.2.1 Multi-Crop Rapid Reel Conversion Kit

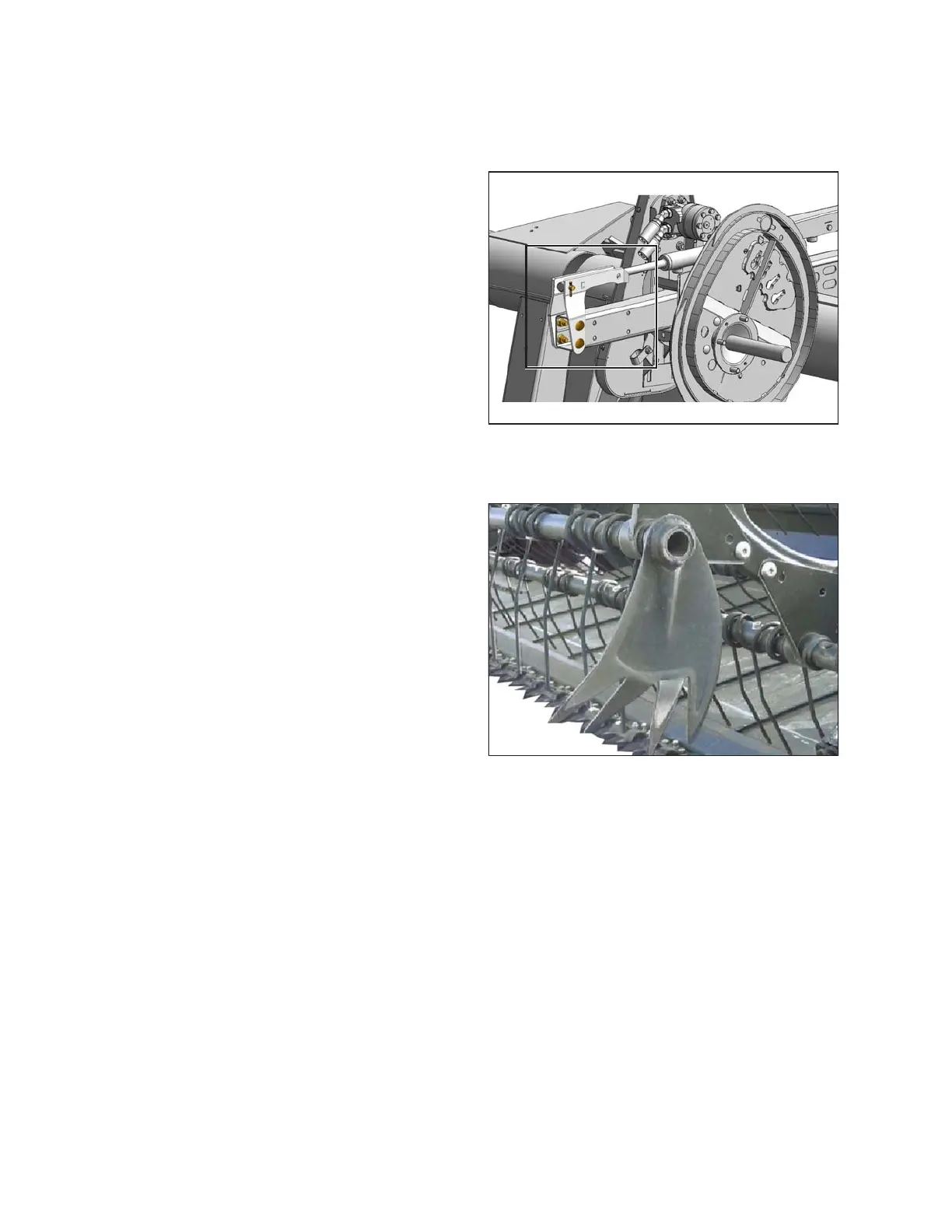

Figure 6.2: Center Arm – Left and Right Similar
For use on double-reel headers only, the multi-crop rapid
reel conversion kit decreases the time required to change
the fore-aft cylinder position on the reel support arm from
the normal operating location to an aft location that
minimizes crop disturbance. The kit also enables the reel
fore-aft cylinders to be quickly relocated to the normal
operating location.
Installation instructions are included in the kit.
MD #B5943
6.2.2 Lodged Crop Reel Finger Kit
Figure 6.3: Lodged Crop Finger
The steel fingers provided in the Lodged Crop Reel Finger
kit attach to the ends of every other tine bar and help to
clear material in heavy, hard-to-cut crops such as
lodged rice.
Each kit contains three fingers for the cam end of the reel
and three fingers for the tail end. Hardware and installation
instructions are included in the kit.
MD #B4831
6.2.3 PR15 Tine Tube Reel Conversion Kit
This kit allows conversion from a six-bat reel to a nine-bat reel.
Installation instructions are included in the kit.
Order the following bundles according to your header size and type:
• 30 foot – Plastic Fingers MD #B5278
• 30 foot – Steel Fingers MD #B5657
• 35 foot – Plastic Fingers MD #B5674
NOTE:
You must also order additional endshields when converting the reel.
