214323 261 Revision A

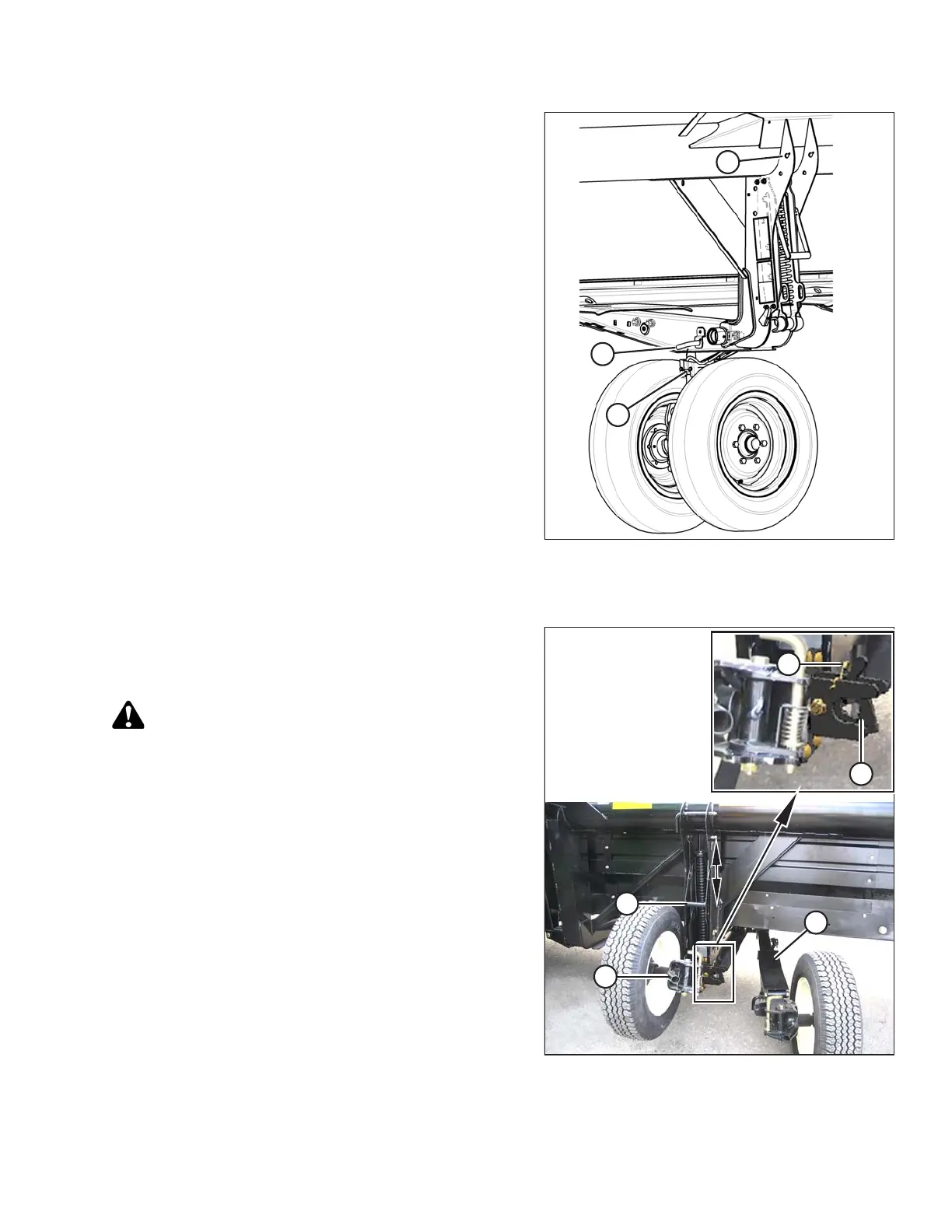

Figure 3.463: Left Front Wheels
7. Remove pin (A) from storage at the top of leg (B).
8. Move and swivel the wheels clockwise until connector
(C) is turned towards the front end of the header.
9. Insert pin (A) and turn to lock.
10. Lower the header until the left wheels are just touching
the ground.
Moving Rear (Right) Wheels into Transport Position
Figure 3.464: Separating Axles
1. Remove hairpin (A) from latch (B).
2. Lift latch (B), disengage right axle (C), and lower to
the ground.
CAUTION
Stand clear of wheels and release linkage carefully as
wheels will drop once the mechanism is released.
3. Pull handle (D) carefully to release the spring and lower
the wheel to the ground.
4. Lift the wheel and linkage with handle (E) and position
the linkage in the bottom slot.
5. Lower the handle (C) to lock.
OPERATION
