Adjusting Auto Reel Speed (CLAAS 500 Series)
The reel speed can be preset when automatic header functions are activated. Follow these steps to preset
reel speed.
NOTE:
Changes may have been made to the combine controls or display since this document was published. Refer to the
combine operator’s manual for updates.

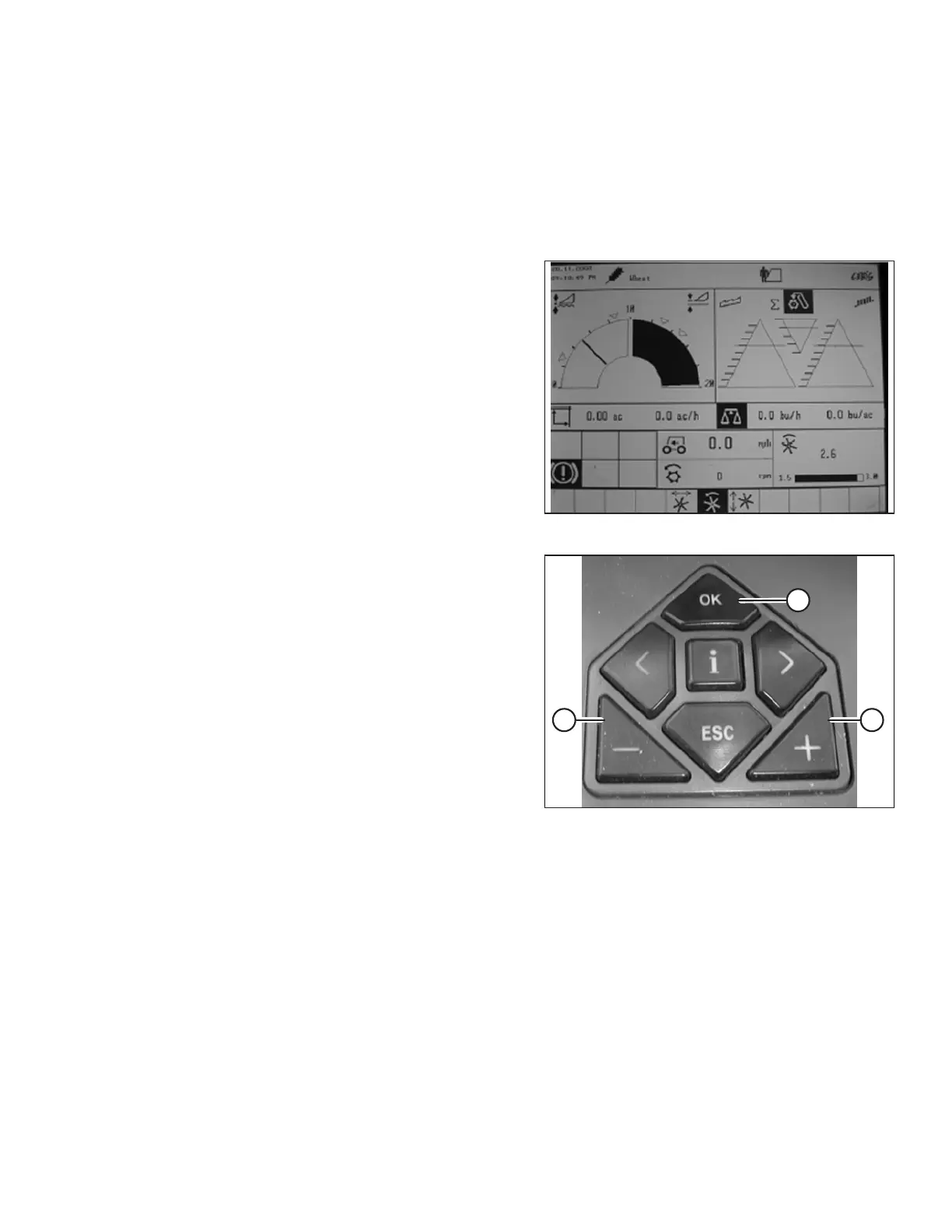

Figure 3.360: Combine Display
1. Use < or > key to select REEL WINDOW. Window E15
will display current advance or retard speed of reel in
relation to ground speed.
Figure 3.361: Combine Controls
2. Press OK key (C) to open REEL SPEED window.
3. Use – key (A) or + key (B) to set reel speed in relation to
current ground speed. Window E15 will display selected
reel speed.
OPERATION
