MacDon FD75 - Installing Bushings on Five-, Six-, or Nine-Bat Reels

214323 451 Revision A
1009846
A
B

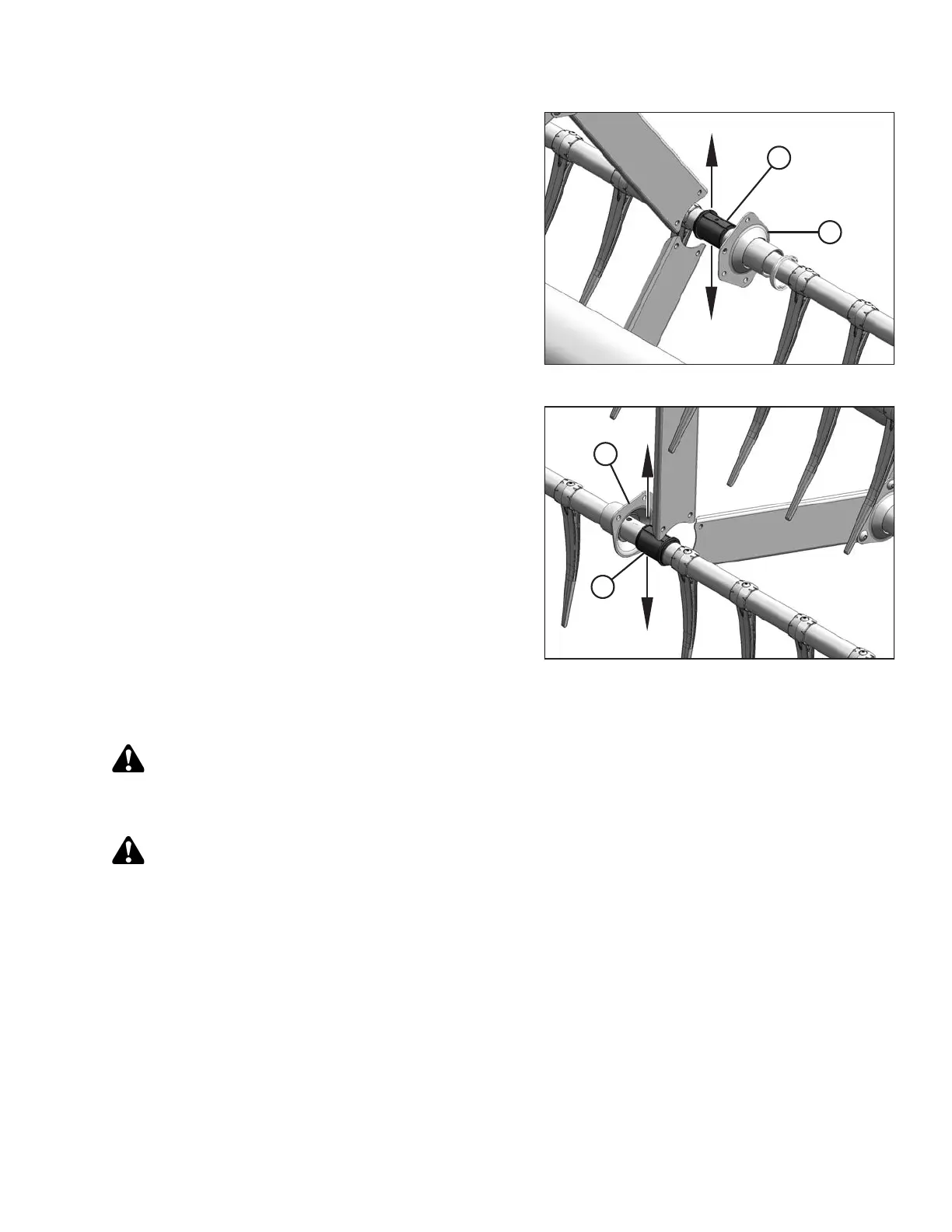

Figure 5.254: Support
1009870
B
C
Figure 5.255: Opposite Support
20. Slide support (A) off bushing halves (B).
NOTE:
Two tine tubes have opposite supports (C). Rotate the
supports until the flanges clear the channels before
moving them off bushing (B). Move the tine tube
outwards slightly if necessary.
21. Remove bushing halves (B).
Installing Bushings on Five-, Six-, or Nine-Bat Reels
DANGER
To avoid bodily injury or death from unexpected start-up or fall of raised machine, always stop engine,
remove key, and engage safety props before going under header for any reason.
WARNING
To avoid bodily injury from fall of raised reel, always engage reel safety props before going under raised
reel for any reason.
IMPORTANT:
Ensure tine tube is supported at all times to prevent damage to the tube or other components.
MAINTENANCE AND SERVICING
