MacDon FD75 - Installing Linkage Covers

214323 37 Revision A
1004528
A

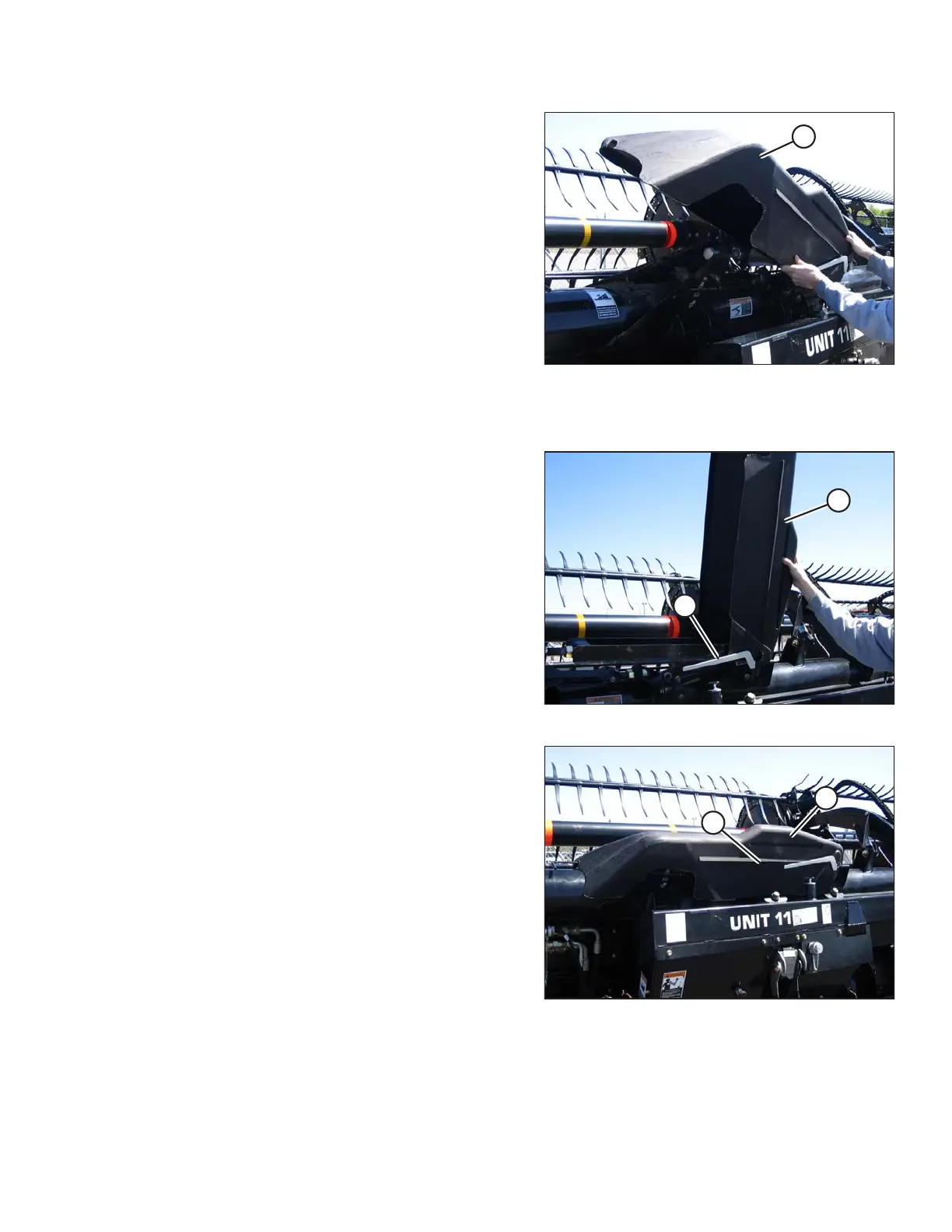

Figure 3.19: Linkage Cover
2. Rotate cover (A) upward until inboard end can be
lifted off.
Installing Linkage Covers
1004530
A
B
Figure 3.20: Linkage Cover
1. Position inboard end of cover (A) over linkage and
behind indicator bar (B).
2. Lower cover until secure and against header tube.
1004527
A
B
Figure 3.21: Linkage Cover
3. Install screw (A) to hold cover (B) in place.
