MacDon FD75 - Moving Rear (Right) Wheels into Field Position

214323 257 Revision A
1005658
A
B

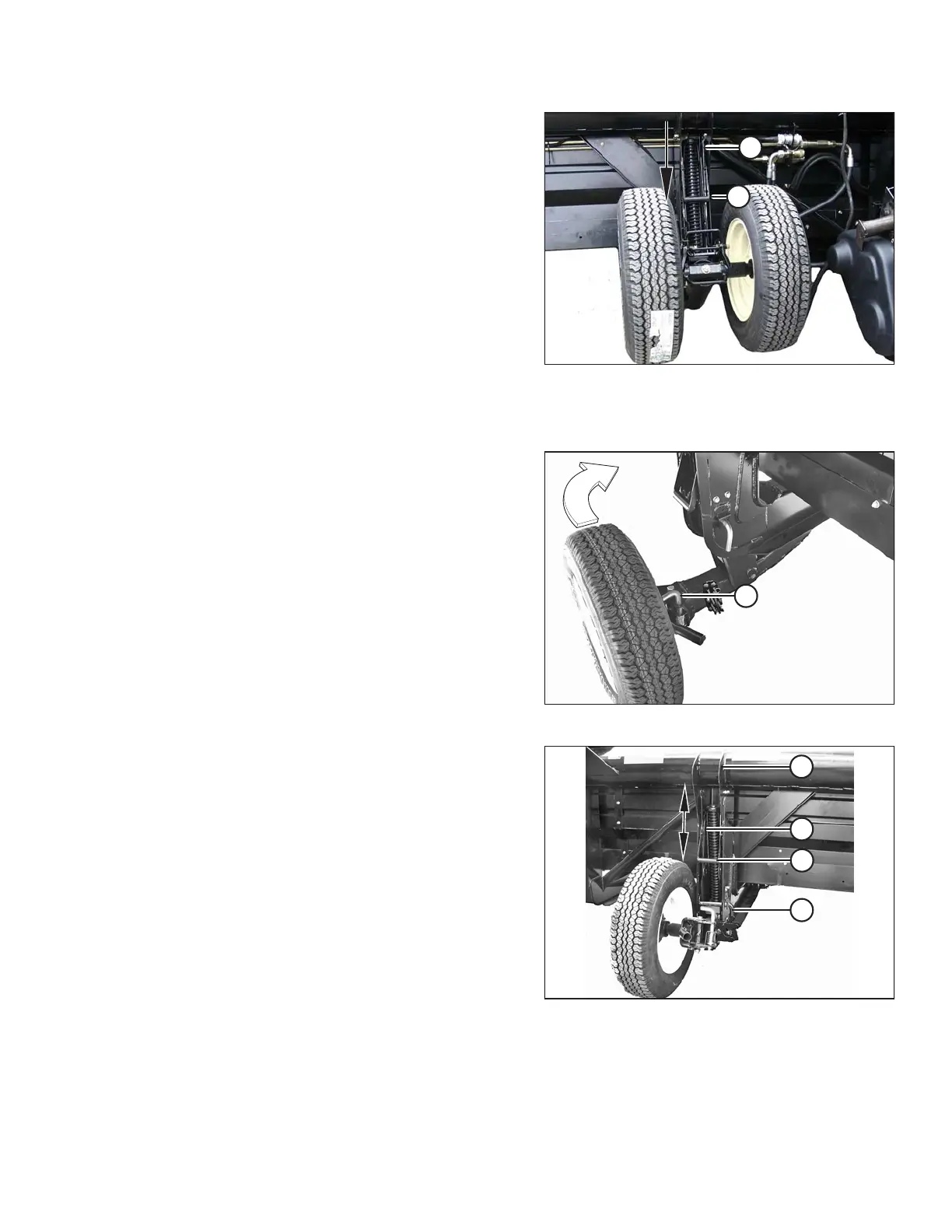

Figure 3.454: Front (Left) Wheels
7. Lift the wheel assembly to the desired height and slide
linkage (A) into the appropriate slot in the vertical
support.
8. Push handle (B) down to lock.
Moving Rear (Right) Wheels into Field Position
1001739
A
Figure 3.455: Rear Wheel – Left Side
1. Pull pin (A) on the left side rear wheel. Swivel the wheel
clockwise and lock with pin.
1001740
A
C
D
B
Figure 3.456: Rear Wheel – Left Side
2. Remove pin (A) and store at location (B).
3. Pull handle (C) upwards to release.
4. Lift the wheel to the desired height, and engage the
support channel into slot (D) in the vertical support.
5. Push handle (C) down to lock.
OPERATION
