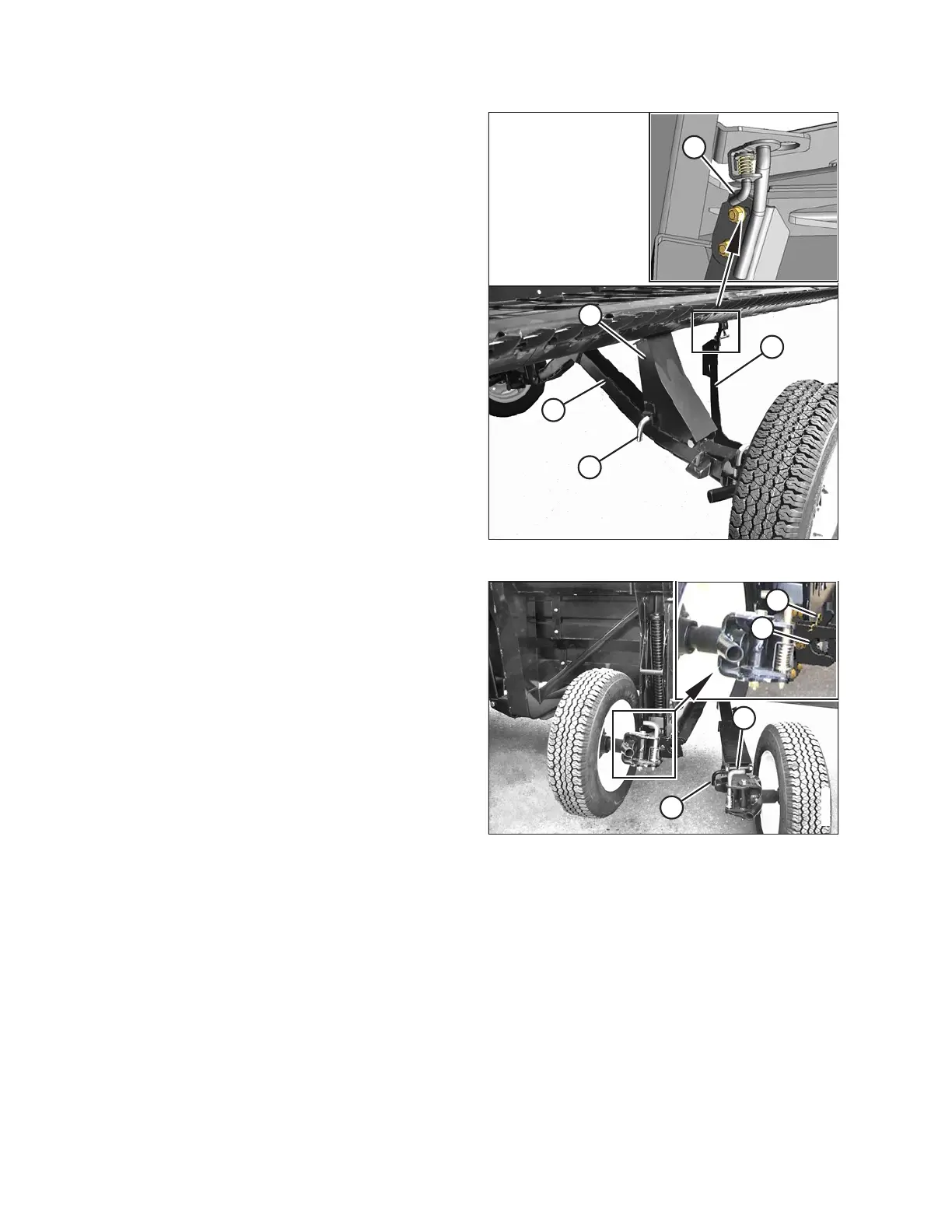

Figure 3.457: Right Rear Axle
6. Pull pin (A) on brace (B) on the left wheel in front of the
cutterbar. Disengage the brace from the cutterbar, and
lower the brace against axle (C).
7. Remove pin (D), lower support (E) onto axle, and
reinsert pin into support.
8. Swing the axle (C) clockwise towards the rear of
the header.
Figure 3.458: Rear Axles
9. Pull pin (A) on right wheel, swivel the wheel
counterclockwise to position shown, and lock with
pin (A).
10. Remove hairpin (B) from latch (C).
11. Lift the wheel, lift latch (C), and engage lug (D) onto the
left axle. Ensure the latch closes.
12. Secure the latch with hairpin (B), ensuring the open end
of the pin faces the rear of the combine.
NOTE:
The hairpin can become dislodged by crop if installed
with the open end facing the cutterbar.
IMPORTANT:
Check that wheels are locked and that handle is in
locked position.
