MacDon FD75 - Converting from Transport to Field Position; Removing Tow-Bar

214323 254 Revision A
3.13.3 Converting from Transport to Field Position
Removing Tow-Bar
1001721
A
B
C
D

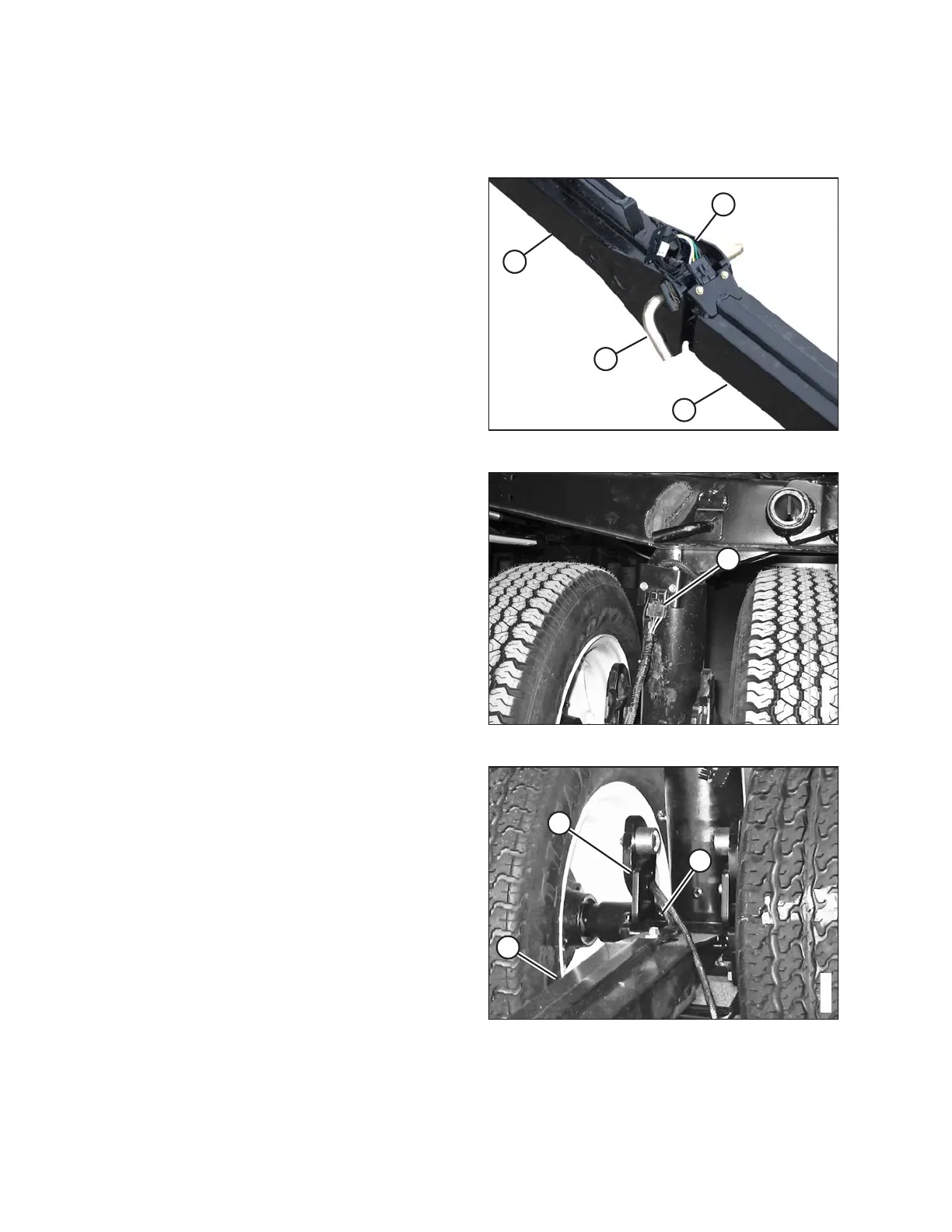

Figure 3.447: Tow-Bar Assembly
1. Block the tires to prevent the header from rolling, and
unhook the header from the towing vehicle.
2. Disconnect the electrical connector (A) on the tow-bar.
3. Remove pin (B) from the tow-bar, and detach outer
section (C) from inner section (D).
1001725
A
Figure 3.448: Wiring Connector
4. Disconnect electrical connector (A) at the front wheel.
1001154
A
B
C
Figure 3.449: Tow-Bar Latch
5. Remove clevis pin (A) and set aside for reinstallation.
6. Push latch (B) and lift tow-bar (C) from the hook.
Release latch.
7. Install clevis pin (A).
OPERATION
