214323 368 Revision A

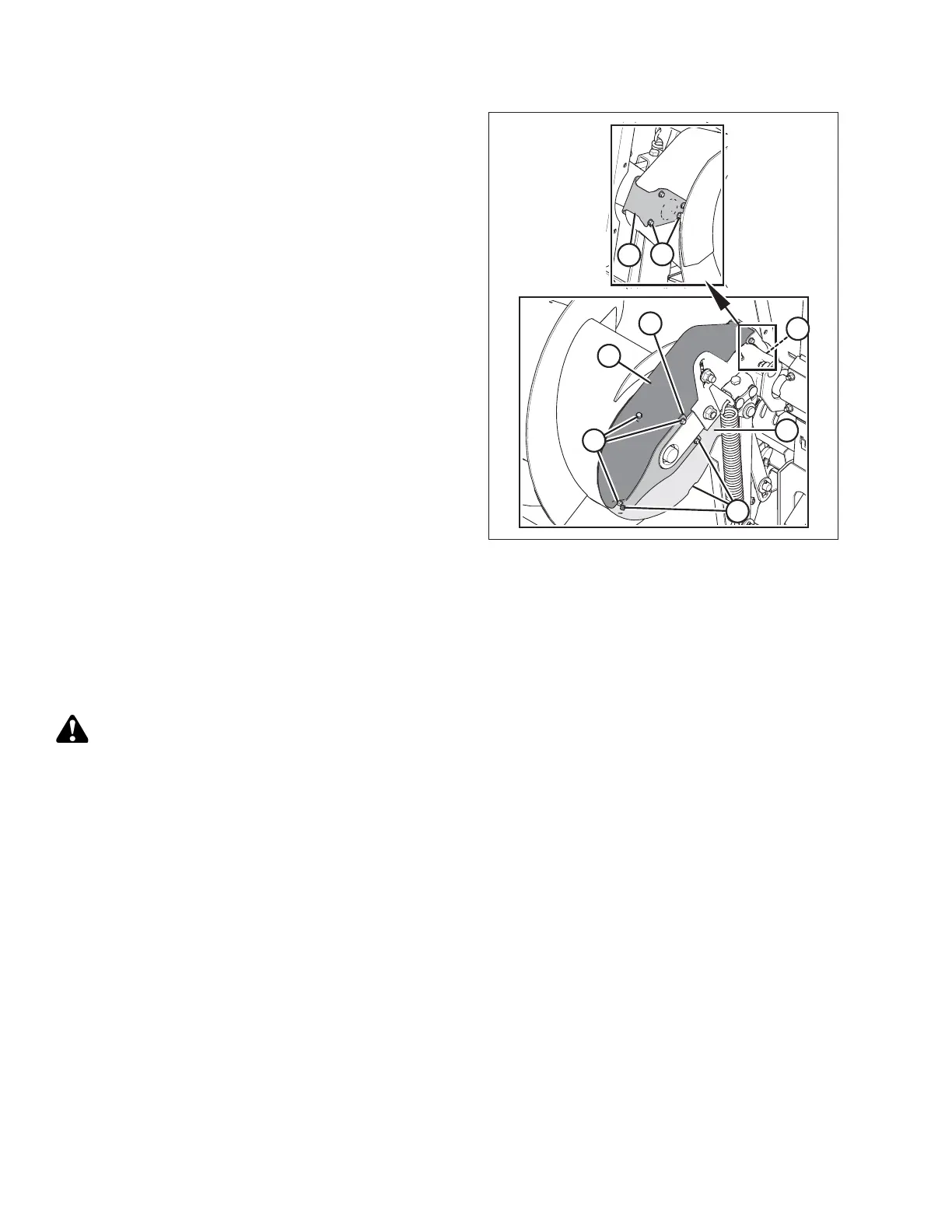

Figure 5.79: Auger Drive
18. Reinstall bottom cover (E) and drive cover retainer (G).
Engage the inboard lip of the cover into the auger tube
and rotate the cover back to engage the rear support.
19. Secure with bolts (D).
20. Install top cover (C) and cover retainer plate (F).
21. Replace and tighten bolts (A) and (B).
NOTE:
The covers should be as close together as possible to
prevent crop from entering the auger drive.
5.7.6 Auger Tines
The CA25 auger uses retracting tines to feed the crop into the combine feeder house. Some conditions may require
the removal or installation of tines for optimal crop feeding. Replace any worn or damaged tines.
Removing Feed Auger Tines
DANGER
To avoid bodily injury or death from unexpected start-up or fall of a raised machine, always stop engine
and remove key before leaving the operator’s seat, and always engage safety props before going under
the machine for any reason.
1. Raise the reel.
2. Shut down the combine, and remove the key from the ignition.
3. Engage the reel safety props.
MAINTENANCE AND SERVICING
