214323 369 Revision A

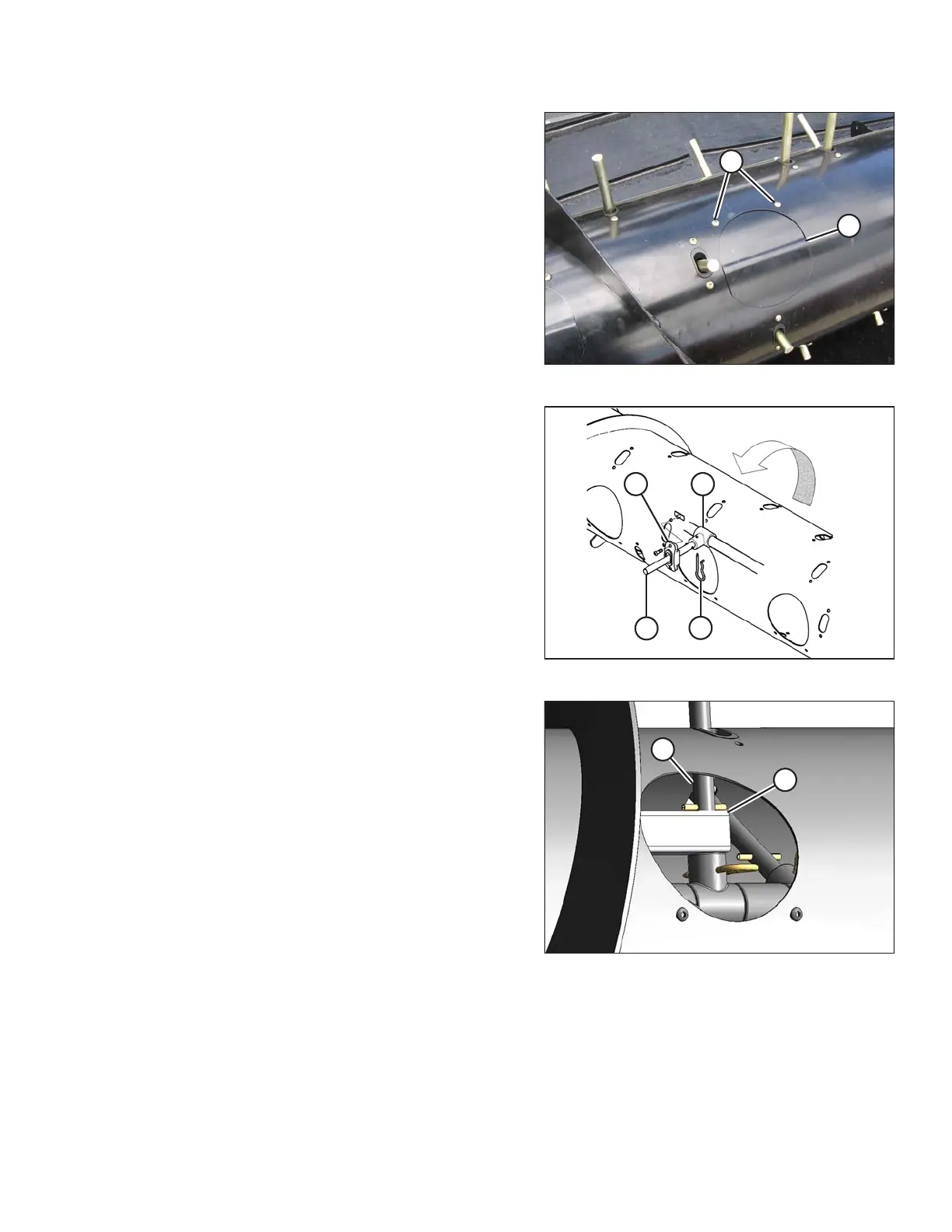

Figure 5.80: Auger
4. Remove screws (A) and remove the access cover (B)
closest to the tine you are removing.
Figure 5.81: Auger
5. Remove hairpin (A), pull tine (B) out of bushing (C) from
inside the auger, and remove the tine from the auger by
pulling it out through plastic guide (D).
Figure 5.82: Inside Auger
NOTE:
If replacing the #6 tine (A), it must be slipped off square
drive tube (B). This particular tine cannot be removed for
normal operation.
6. Proceed to Step 7, page 370 if not reinstalling the
#6 tine (A); otherwise, refer to Installing Feed Auger
Tines, page 371.
