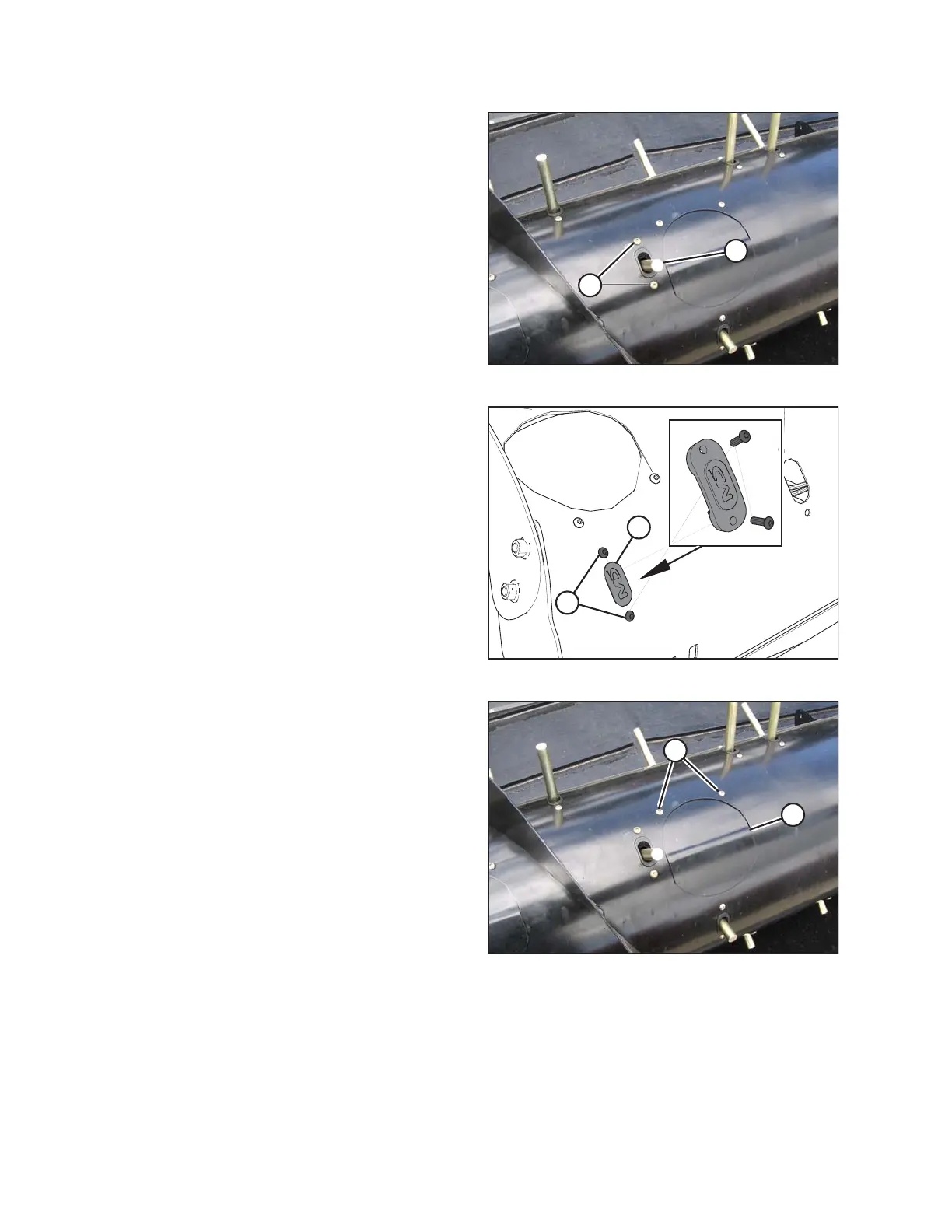

Figure 5.83: Auger
7. Remove screws (A) securing plastic guide (B) to the
auger, and remove the guide from inside the auger.
1014184
A
B
Figure 5.84: Plug
8. Position plug (A) (MD #187137 available from MacDon
Parts) into the hole from inside the auger, and secure
with two socket button head screws (B). Coat the
screws with Loctite
®
#243 (or equivalent), and torque to
8.5 Nm (75 lbf∙in).
1001431
A
B
Figure 5.85: Auger
9. Replace the access cover (B) and secure with
screws (A). Coat screws with Loctite
®
#243 (or
equivalent) and torque to 8.5 Nm (75 lbf∙in).
