MacDon FD75 - Lubricating Reel Drive Chain - Double Reel

214323 339 Revision A
Lubricating Reel Drive Chain – Double Reel
DANGER
To avoid bodily injury or death from unexpected start-up of machine, always stop engine and remove key
from ignition before leaving operator’s seat for any reason.
1012795
A
B
C

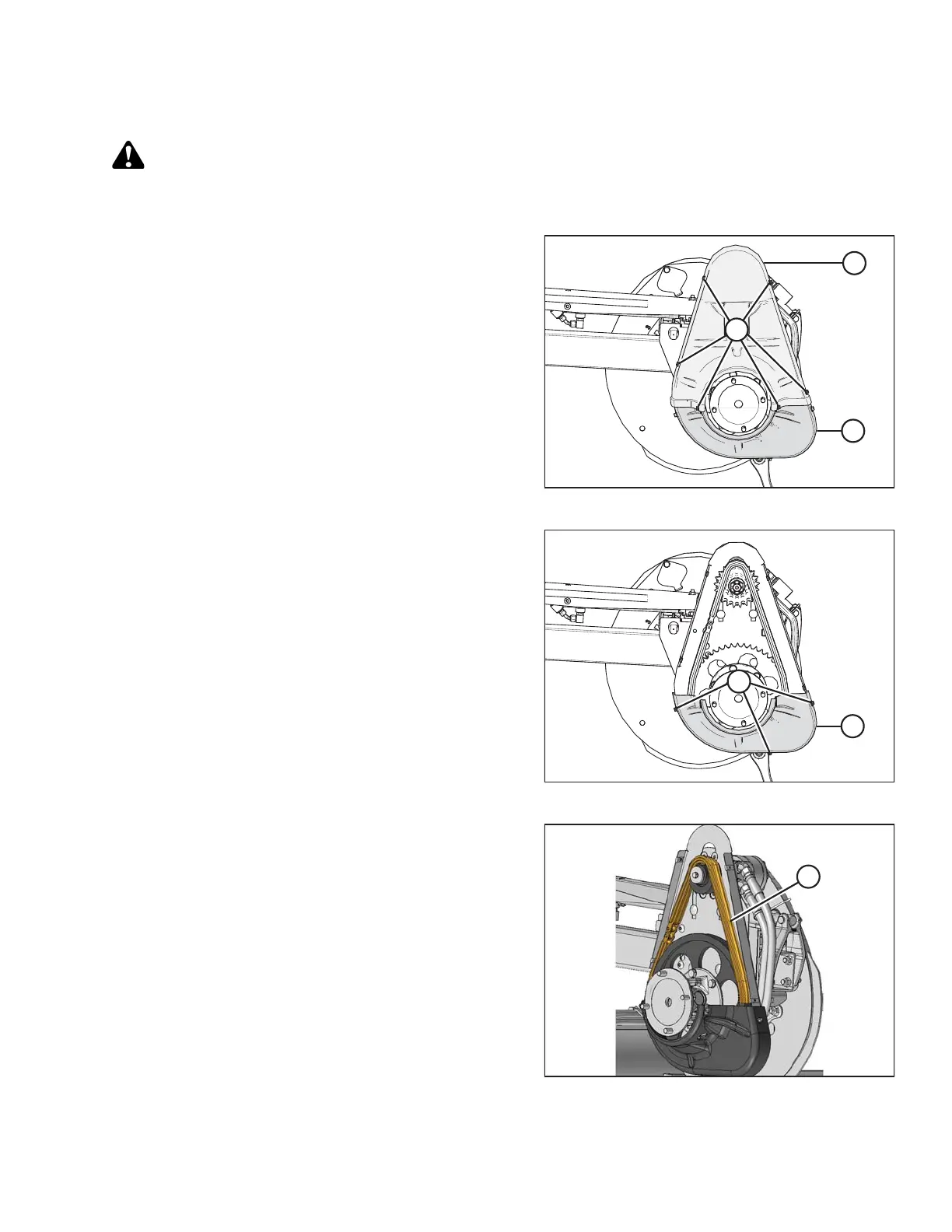

Figure 5.18: Drive Cover – Double Reel
1. Stop the engine and remove the key from the ignition.
2. Remove six bolts (A) securing upper cover (B) to the
reel drive and lower cover (C).
1012796
A
B
Figure 5.19: Drive Cover – Double Reel
3. Remove three bolts (A) and remove lower cover (B) if
necessary.
1004752
A
Figure 5.20: Drive Chain
4. Apply a liberal amount of grease to the chain (A).
MAINTENANCE AND SERVICING
