MacDon FD75 - Replacing Adapter Feed Draper Idler Roller Bearing

214323 411 Revision A
1014024
A
B

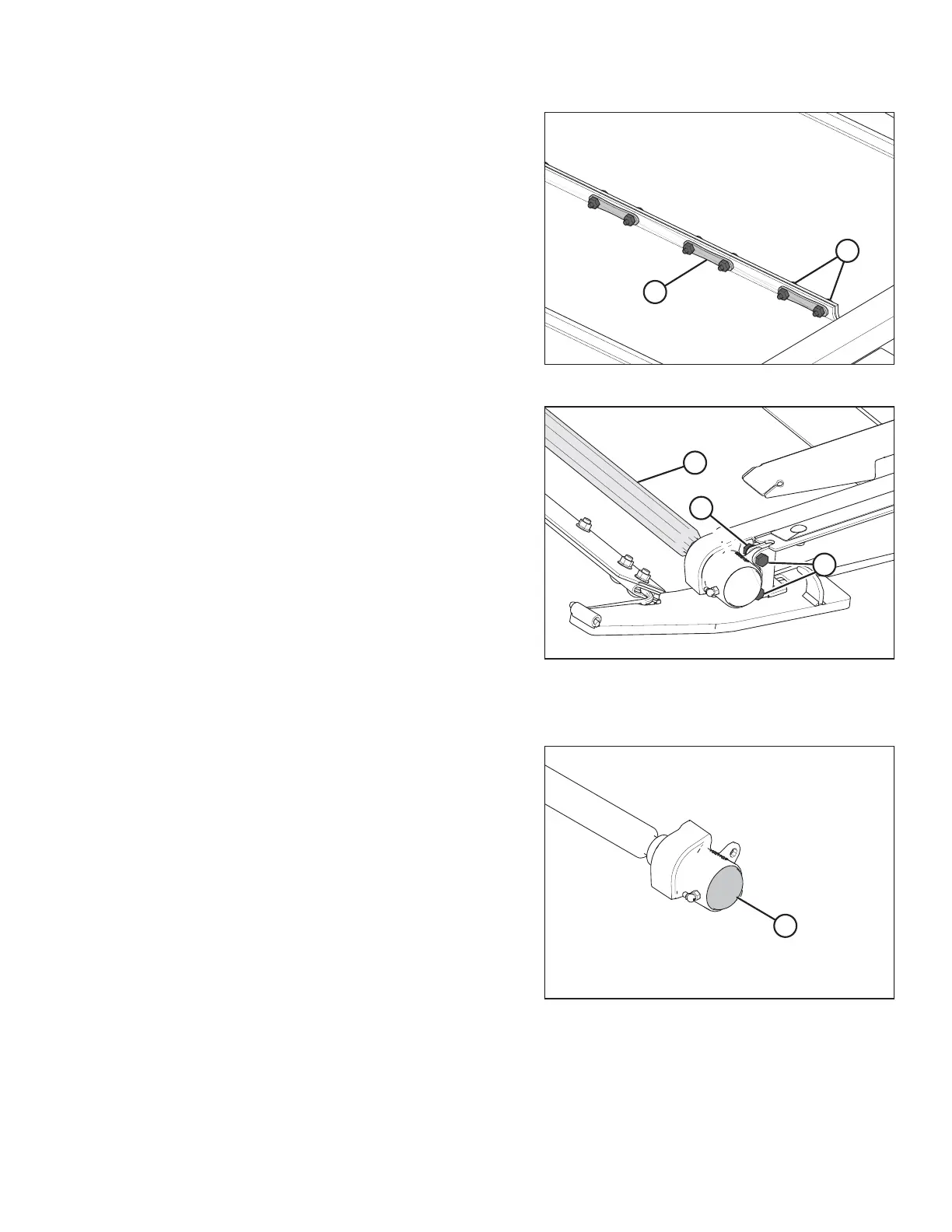

Figure 5.169: Draper Connector
4. Remove screws (A) and nuts, and remove the draper
connector straps (B).
5. Open the feed draper.
1003003
A
B
C
Figure 5.170: Idler Roller
6. Remove two bolts (A) and nuts (C) from both ends of
the idler roller.
7. Remove idler roller assembly (B).
Replacing Adapter Feed Draper Idler Roller Bearing
1002994
A
Figure 5.171: Idler Roller
1. Remove dust cap (A).
