214323 97 Revision A
Installing Crop Dividers with Latch Option onto Header
DANGER
To avoid bodily injury or death from unexpected start-up or fall of raised machine, always stop engine,
remove key, and engage safety props before going under header for any reason.
1. Lower reel, raise header, stop engine, remove key, and engage safety props. Refer to your combine operator’s
manual for instructions.
2. Open or remove endshields. Refer to 3.2.3 Endshields, page 31.

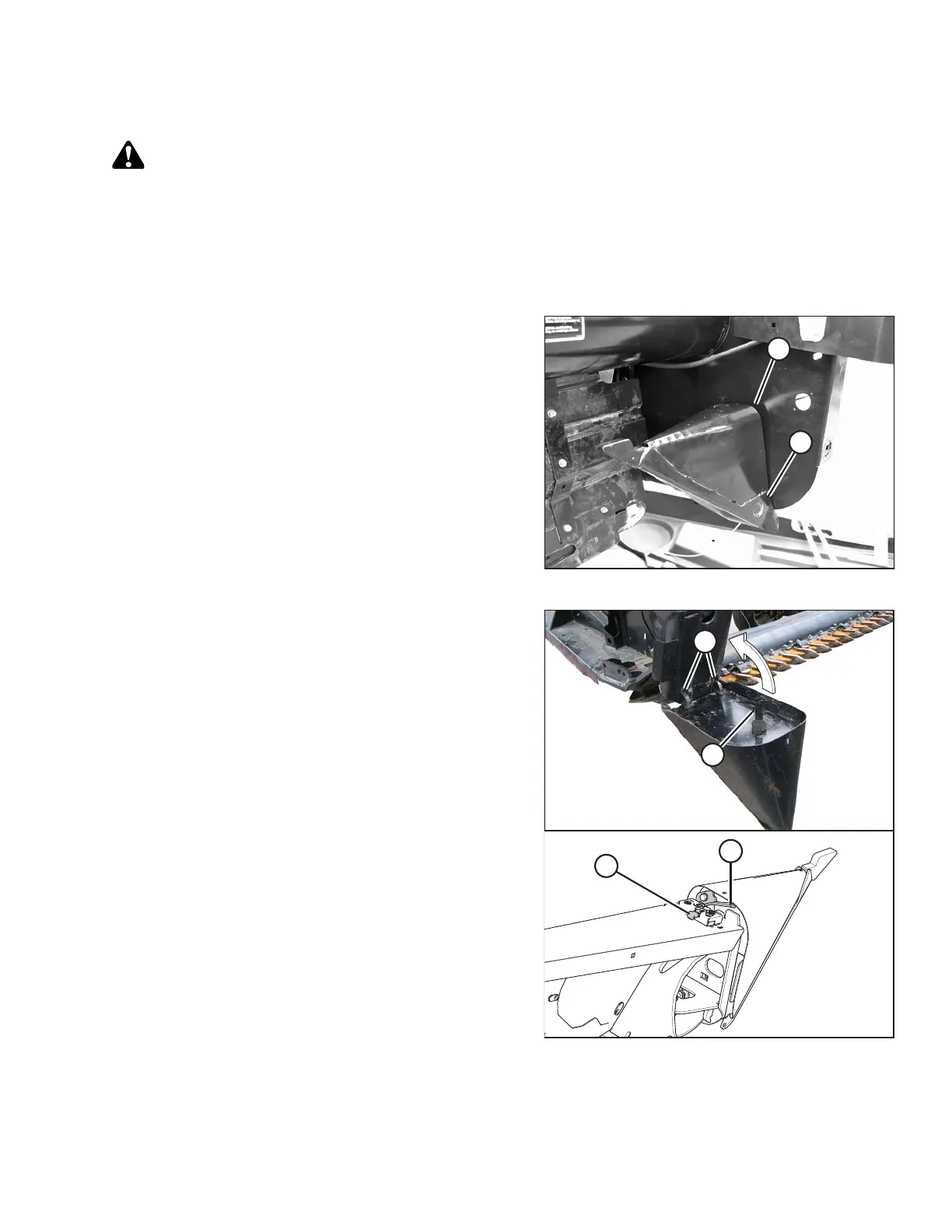

Figure 3.113: Stored Crop Divider
3. Remove crop divider from storage location by lifting
crop divider to disengage lugs (A) at lower end and then
lowering it slightly to disengage pin (B) from endsheet.
Figure 3.114: Crop Divider
4. Position crop divider as shown by inserting lugs (A) into
holes in endsheet.
5. Lift forward end of crop divider until pin (B) at top of crop
divider engages and closes latch (C).
6. Push safety lever (D) downwards to lock pin into
latch (C).
OPERATION
